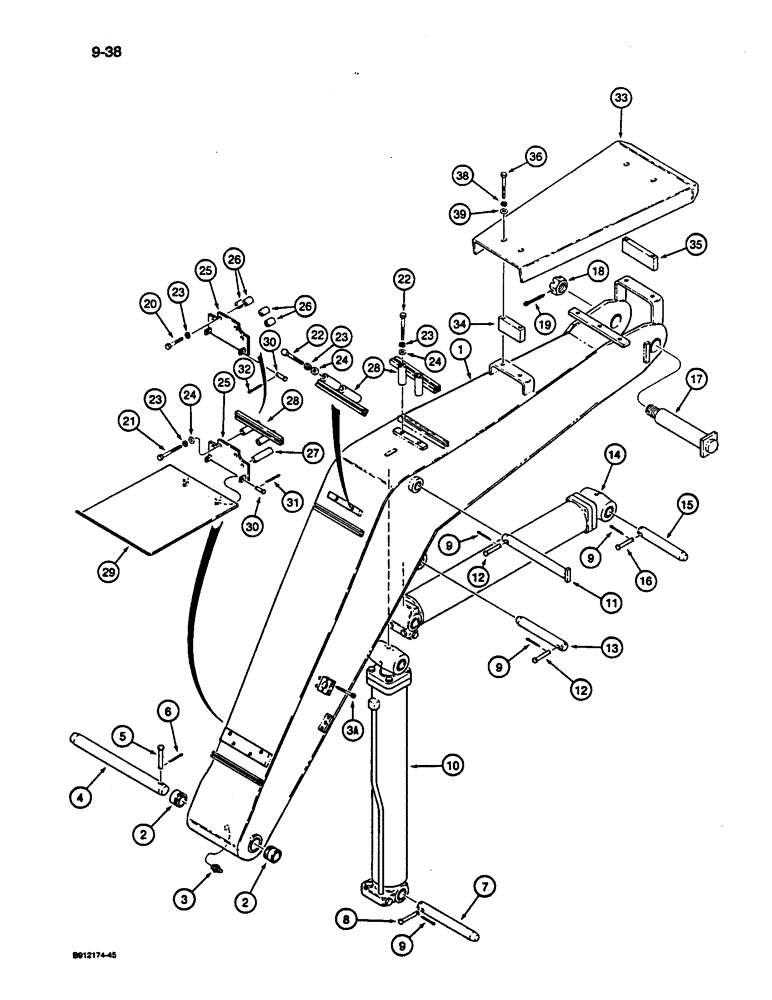

Запчасти Case 1187C (9-38) - BOOM AND RELATED PARTS (09) - CHASSIS

S956965

BOOM

ASSEMBLY - logger, see Figure 9-60 for decals, Includes: Ref. 1 - 3A

1шт.

1

NSS

NOT SOLD SEPARAT

BOOM - logger

1шт.

2

S229565

BUSHING

- boom, at turntable

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

3a

461-33816

HEX SOC SCREW,3/8"-16 x 1"

BOLT - hex socket head, 3/8 NC x 1 inch

4шт.

4

S242328

PIN

-, Serial Range: boom-turntable

1шт.

5

S87319

PIN

- clevis, 3/4 x 5-1/4 inch grip length, at boom pin

1шт.

6

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

7

S242326

PIN

- boom cylinder at turntable

1шт.

8

S61975

PIN,20.62mm OD x 106.76mm L

- clevis, at lower boom cylinder pin

1шт.

9

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.

10

S957052

CYLINDER

ASSEMBLY - boom, parts list Figure 8-72

1шт.

11

S243042

PIN

- boom cylinder at boom

1шт.

12

S61975

PIN,20.62mm OD x 106.76mm L

- clevis, boom cylinder pin and arm cylinder, Serial Range: pin-boom

2шт.

13

S242326

PIN

- arm, Serial Range: cylinder-boom

1шт.

14

S956911

CYLINDER

ASSEMBLY - arm, parts list Figure 8-74

1шт.

15

S242502

PIN

- arm, Serial Range: cylinder-boom

1шт.

16

S61972

PIN

- clevis, 1/2 x 3-1/4 inch grip length, arm cylinder, Serial Range: pin-arm

1шт.

17

S243044

PIN ASSY.

PIN -, Serial Range: arm-boom

1шт.

18

129-617

NUT

- heavy hex slotted, 3 inch NC

1шт.

19

32-2076

COTTER PIN,5/16" x 4 3/4"

Pin, Split (Cotter), 5/16" x 4 3/4"

1шт.

20

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, used with Feller-Buncher only

4шт.

21

413-892

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

- hex, 1/2 NC x 5-3/4 inch, used with Allied Saw only

4шт.

22

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch, used with Allied Saw only

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4-8шт.

24

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch, used with Allied Saw only

8шт.

25

S221029

BRACKET

-, Serial Range: guard-boom

1шт.

26

S99133

SPACER

- bracket to boom, used with Feller-Buncher only

4шт.

27

S106386

SPACER

- bracket to boom, used at lower bracket holes, used on models with Allied Saw only

2шт.

28

S229652

BRACKET

- tube clamp, used as spacer for bracket to boom, used on models with Allied Saw only

3шт.

29

S516724

GUARD ASSY.

GUARD - boom, sliding

1шт.

30

S10805

PIN

- clevis, 1/2 x 1 inch, sliding boom, Serial Range: guard-bracket

2шт.

31

432-816

COTTER PIN,1/8" x 1"

used with Allied Saw only 1/8" x 1"

2шт.

32

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch, used with Feller-Buncher only

2шт.

33

S618185

GUARD

- tube, upper boom

1шт.

34

S120473

SPACER

- 5/8 inch (147 mm) long, Serial Range: guard-boom

1шт.

35

S120474

SPACER

- 9/5 inch (241 mm) long, Serial Range: guard-boom

1шт.

36

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

38

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

39

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

4шт.
