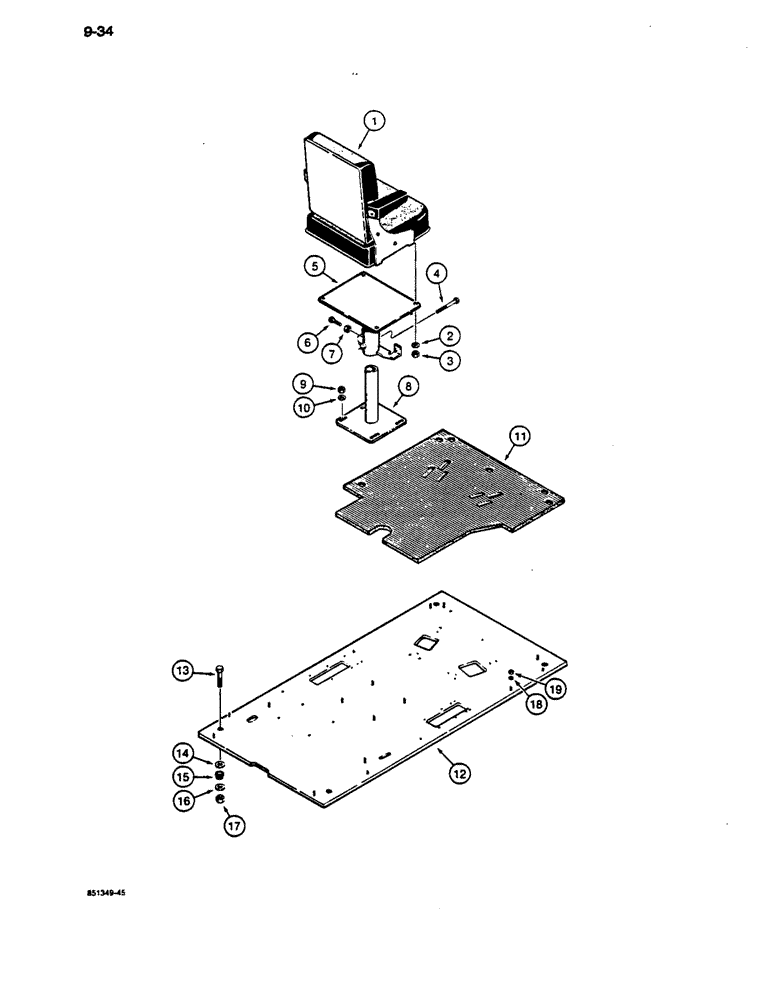

Запчасти Case 1187C (9-34) - SEAT, SEAT MOUNTING, AND FLOOR PLATE (09) - CHASSIS

1

S617794

SEAT ASSY.

SEAT ASSEMBLY - operators, parts list Figure 9-36

1шт.

2

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

3

131-205

LOCK NUT,5/16"-18

NUT - heavy hex, self-locking, 5/16 inch NC

4шт.

4

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch, seat height adjustment

1шт.

5

S616417

BRACKET

- seat mounting

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

7

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

8

S515219

BRACKET

BASE - seat support

1шт.

9

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

4шт.

10

S95569

WASHER

- flat, special, hardened

4шт.

11

S617801

FLOOR MAT

MAT - floor, operator compartment

1шт.

12

S957084

PLATE

- floor, opertator compartment

1шт.

13

413-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch

4шт.

14

95-81194

WASHER,25/32" x 3 1/2" x .238"

- flat, 25/32 x 3-1/2 x 1/4 inch

4шт.

15

S112578

MOUNTING PARTS

MOUNT - rubber, floor plate

4шт.

16

95-81123

WASHER,0.81" ID x 3" OD x 0.24" Thk

- flat, 13/16 x 3 x 1/4 inch, lower

4шт.

17

131-450

NUT,3/4"-10

NUT - heavy hex, self-locking, 3/4 inch NC

4шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

10шт.

19

131-208

SPECIAL NUT,1/2"-13

NUT - heavy hex, self-locking, 1/2 inch NC, cab to floor plate

10шт.
