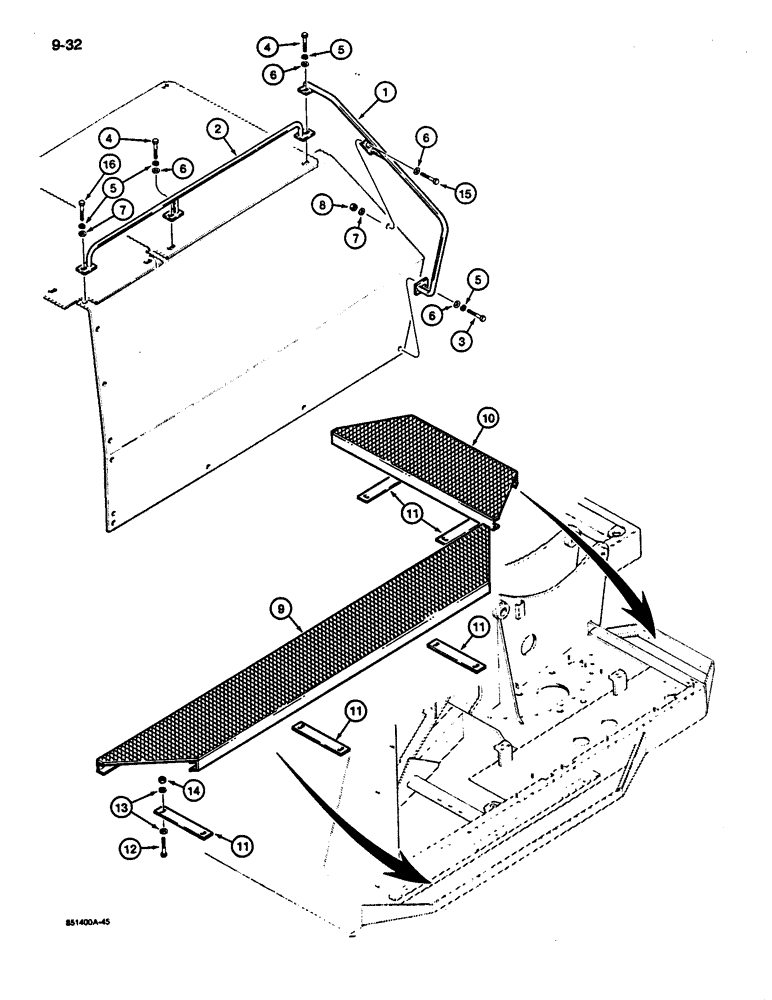

Запчасти Case 1187C (9-32) - TURNTABLE ASSIST HANDLES AND PLATFORMS (09) - CHASSIS

1

S516407

HANDLE

- assist, front of turntable

1шт.

2

S516413

HANDLE

- assist, top of turntable

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

6

S95569

WASHER

- flat, special, hardened

4шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

2шт.

8

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

1шт.

9

S516265

GRATING

PLATFORM - access, turntable side

1шт.

10

S242003

GRATING

PLATFORM - access, turntable front

1шт.

11

S241803

BAR

- clamp, Serial Range: platform-turntable

5шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

10шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

20шт.

14

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

10шт.

15

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

16

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.
