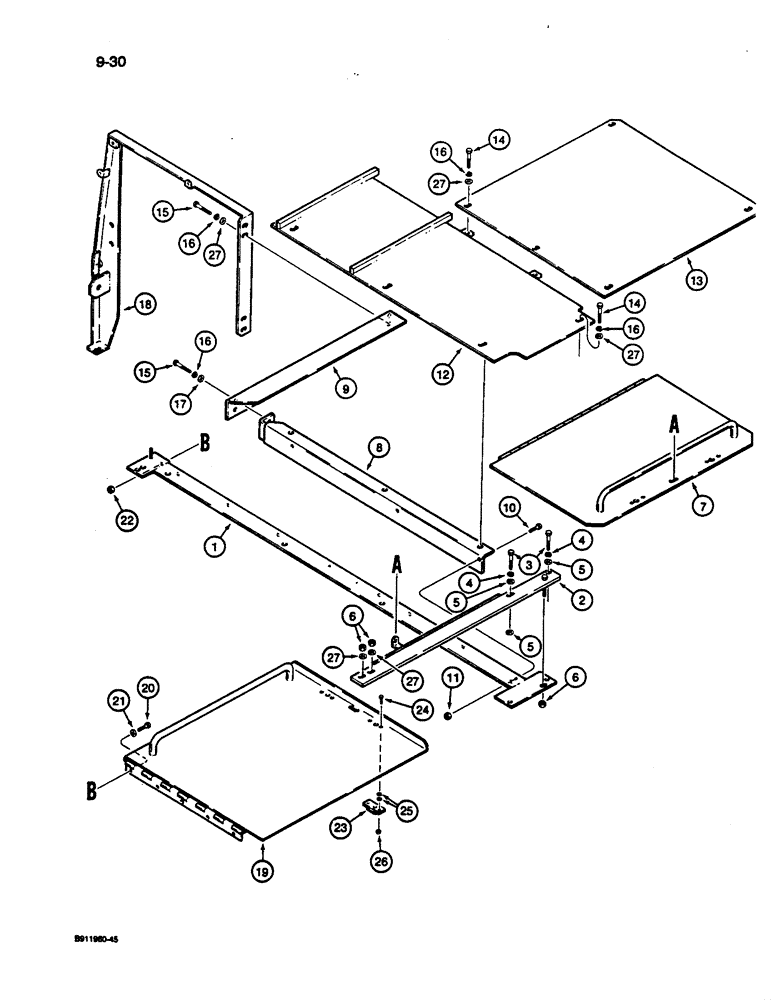

Запчасти Case 1187C (9-30) - TOP ACCESS COVERS (09) - CHASSIS

1

S618031

BRACKET

- crossover, left-hand and right-hand shroud

1шт.

2

S241769

BRACKET

- support, top access cover and oil cooler

1шт.

3

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

5

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

3шт.

6

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

3шт.

7

S516246

DOOR ASSY.

DOOR - access, engine top, see Figure 9-26 for other engine covers

1шт.

8

S516945

BRACKET

- rear support, top access cover

1шт.

9

S516233

BRACKET

- side support, top access cover

1шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

11

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

3шт.

12

S618051

COVER ASSY

COVER - top access, center

1шт.

13

S516259

SHROUD

COVER - top access, front

1шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

9шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

13шт.

17

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

2шт.

18

S618798

SUPPORT ASSY.

BRACE - front, left-hand door, see Figure 9-26 for left-hand shrouds

1шт.

19

S516236

DOOR ASSY.

DOOR - top access, left-hand

1шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

5шт.

21

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch

5шт.

22

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

5шт.

23

S110414

LOCK

- top access door

2шт.

24

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

25

495-21038

WASHER,5/16"

8шт.

26

131-461

LOCK NUT,1/4"-20

NUT - heavy hex, self-locking, 1/4 inch NC

4шт.

27

S95569

WASHER

- flat, special, hardened

13шт.
