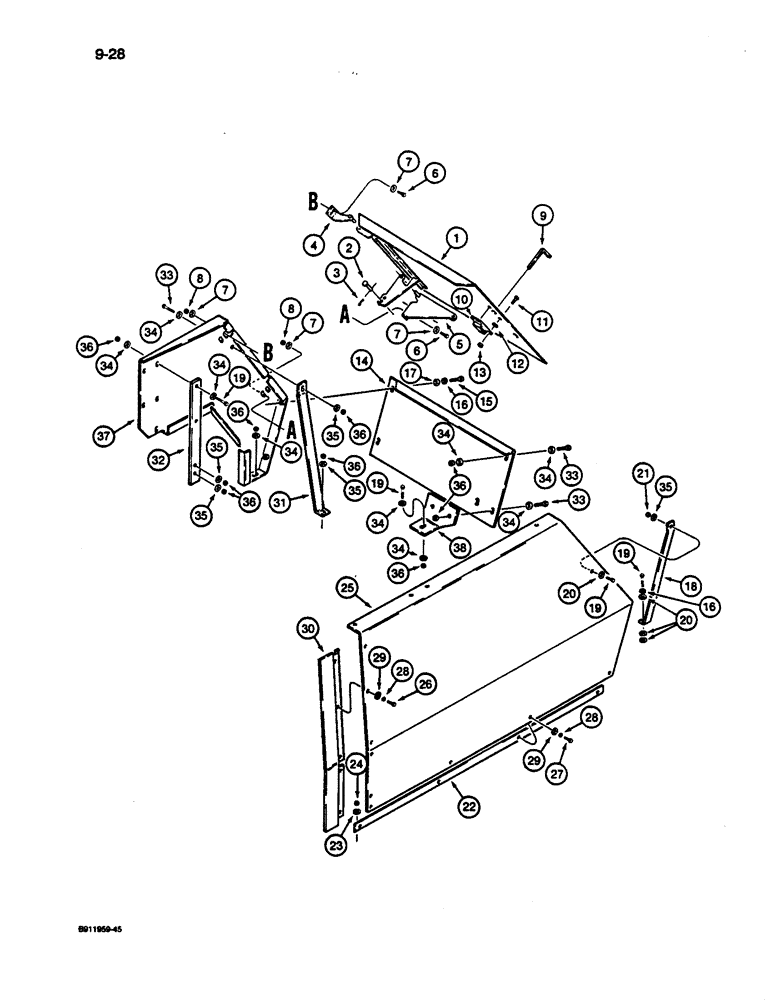

Запчасти Case 1187C (9-28) - RIGHT-HAND SIDE PANELS (09) - CHASSIS

1

S617752

DOOR ASSY.

DOOR - access, front

1шт.

2

S10810

CLEVIS PIN

PIN - clevis, door holder

1шт.

3

S120261

PIN

- hair, clevis pin, plated

1шт.

4

S221455

BRACKET

HINGE - access door, top

1шт.

5

S221453

BRACKET

HINGE - access door, bottom

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

7

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch

8шт.

8

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

4шт.

9

S115083

KEY

- lock, door and side panels

1шт.

10

S110414

LOCK

- front access door

1шт.

11

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

12

495-21038

WASHER,5/16"

2шт.

13

131-461

LOCK NUT,1/4"-20

NUT - heavy hex, self-locking, 1/4 inch NC

2шт.

14

S219991

SHEET

COVER - front, lower

1шт.

15

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

17

S95569

WASHER

- flat, special, hardened

2шт.

18

S240494

BAR

BRACE - vertical, right-hand front shroud

1шт.

19

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

5шт.

20

S95569

WASHER

- flat, special, hardened

4шт.

21

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

1шт.

22

S516734

ANGLE

BRACKET - right-hand front, Serial Range: shroud-turntable

1шт.

23

S95569

WASHER

- flat, special, hardened

5шт.

24

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

5шт.

25

S618087

SHROUD ASSY.

SHROUD - engine, right-hand front

1шт.

26

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

5шт.

27

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

9шт.

29

S95569

WASHER

- flat, special, hardened

9шт.

30

NSS

NOT SOLD SEPARAT

BRACKET - support, right-hand front shroud

1шт.

31

S241486

BRACE

- vertical, left-hand shroud, front

1шт.

32

S119154

BAR

BRACKET - left-hand shroud, rear

1шт.

33

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

34

S95569

WASHER

- flat, special, hardened

12шт.

35

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

5шт.

36

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

11шт.

37

S618078

SHROUD

- left-hand, front

1шт.

38

S241983

BRACE

BRACKET - front lower cover

1шт.
