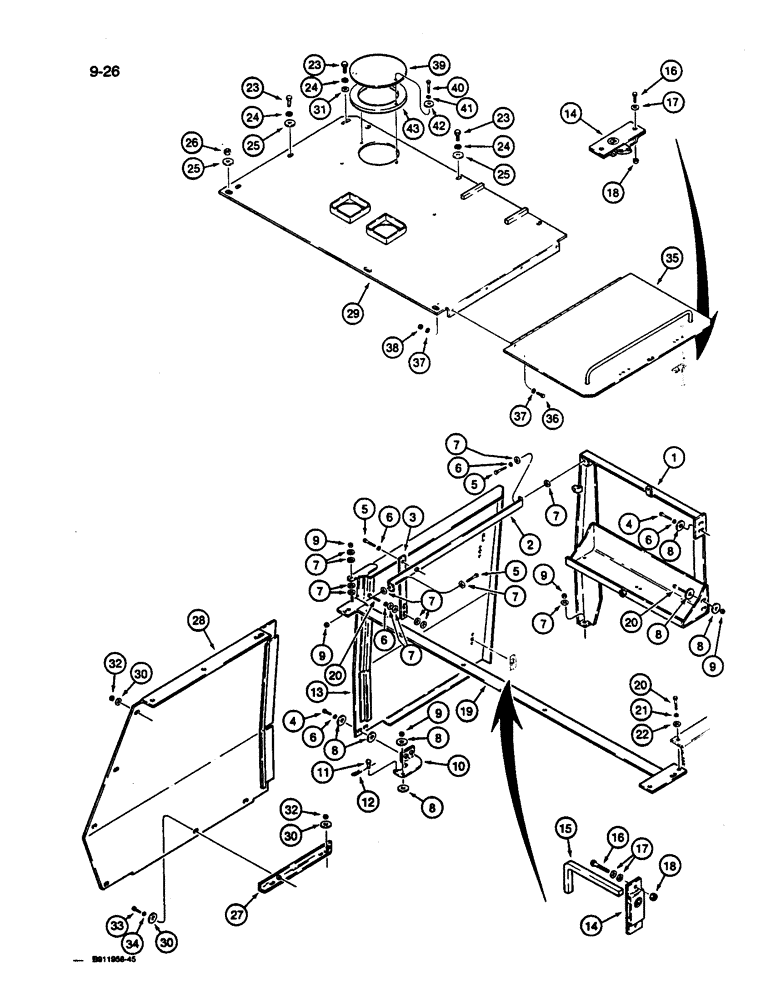

Запчасти Case 1187C (9-26) - ENGINE COVER AND LEFT-HAND SIDE PANELS (09) - CHASSIS

1

S618798

SUPPORT ASSY.

BRACE - front, left-hand door, with battery box

1шт.

2

S241914

BRACE

- horizontal, left-hand door

1шт.

3

S243575

BRACE

- vertical, left-hand door, rear

1шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

13шт.

8

S95569

WASHER

- flat, special, hardened

12шт.

9

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

6шт.

10

S241540

HINGE

- left-hand door, lower

1шт.

11

S10775

PIN

- clevis, door holder

1шт.

12

S120261

PIN

- hair, clevis pin , plated

1шт.

13

S617805

DOOR ASSY.

DOOR - access, left-hand front side

1шт.

14

S110414

LOCK

- door, left-hand front and top

4шт.

15

S115083

KEY

- lock, access door

1шт.

16

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

8шт.

17

495-21038

WASHER,5/16"

12шт.

18

131-461

LOCK NUT,1/4"-20

NUT - heavy hex, self-locking, 1/4 inch NC

8шт.

19

S618031

BRACKET

- crossover, left-hand and right-hand shroud

1шт.

20

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

5шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

1шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

7шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

25

S95569

WASHER

- flat, hardened

8шт.

26

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

3шт.

27

S241521

ANGLE

BRACKET - left-hand rear, Serial Range: shroud-turntable

1шт.

28

S617798

SHROUD ASSY.

SHROUD - engine, left-hand rear

1шт.

29

S618945

SHROUD

COVER - engine, top

1шт.

30

S95569

WASHER

- flat, special, hardened

9шт.

31

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

2шт.

32

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

7шт.

33

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

35

S516246

DOOR ASSY.

DOOR - access, top rear

1шт.

36

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

37

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch

8шт.

38

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

4шт.

39

S243133

COVER

- hydraulic oil reservoir air breather

1шт.

40

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

41

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

42

S95569

WASHER

- flat, special, hardened

2шт.

43

S243136

SPACER

- oil breather cover

1шт.
