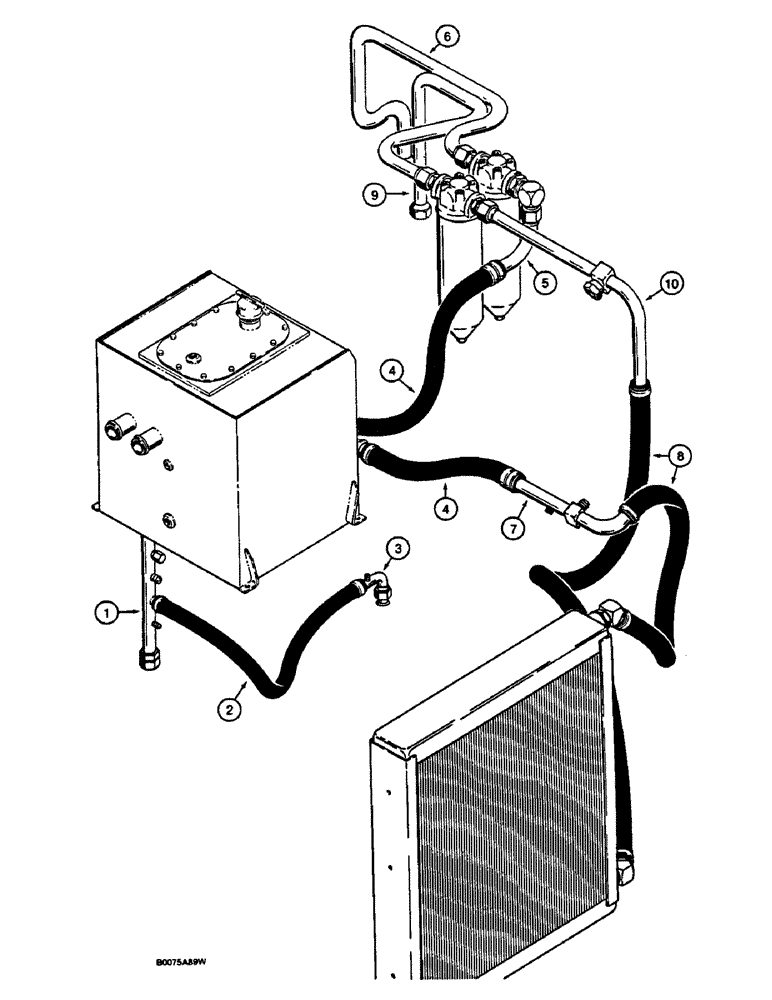

Запчасти Case 1187C (1-12) - PICTORIAL INDEX, BASIC SUPPLY AND RETURN LINES (00) - PICTORIAL INDEX

1

Tube at bottom of reservoir, Figure 8-4

1шт.

2

Hose at reservoir tube to hydraulic swivel, Figure 8-4

1шт.

3

Tube at port No. 1 of hydraulic swivel, Figure 8-4

1шт.

4

Hose at hydraulic reservoir at inside and outside flange, Figure 8-4

1шт.

5

Tube at hydraulic reservoir hose to oil filter, Figure 8-4

1шт.

6

Tube at oil filter to outside control valve, Figure 8-4

1шт.

7

Tube at hydraulic reservoir hose to hose at oil cooler, Figure 8-6

1шт.

8

Hose at inlet and outlet ports of oil cooler, Figure 8-6

1шт.

9

Tube at oil filter to inside control valve, Figure 8-6

1шт.

10

Tube at oil filter to hose at oil cooler, Figure 8-6

1шт.
