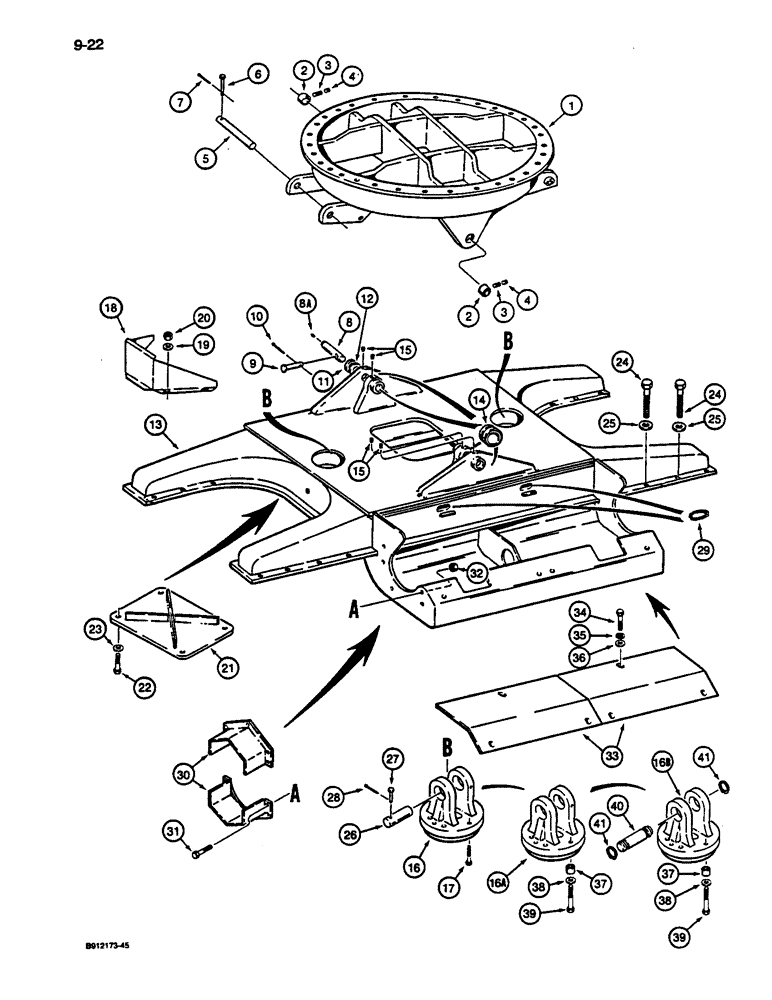

Запчасти Case 1187C (9-22) - TURNTABLE LEVELER AND PLATFORM (09) - CHASSIS

1

S956847

FRAME

LEVELER - turntable, at bearing, Includes: Ref. 2 - 4

1шт.

2

S242410

BUSHING

- leveler

2шт.

3

178-57

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW - set, hex socket headless, 3/8 NC x 3/4 inch, cone pt

2шт.

4

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch, cup point

2шт.

5

S242488

PIN

- leveler cylinder to turntable leveler

2шт.

6

S61977

PIN

- clevis, hardened, Includes: Ref. 7

2шт.

7

32-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

8

S241477

PIN

- turntable leveler to turntable platform, Includes: Ref. 8A

2шт.

8a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

9

S87319

PIN

- clevis, 3/4 x 5-1/4 inch grip length

2шт.

10

32-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

11

S111778

WASHER

SHIM - 3 ID x 5 OD x 1/16 inch thick

1шт.

12

S111776

WASHER

SHIM - 3 ID x 5 OD x 1/8 inch thick

1шт.

S956989

FRAME ASSY

PLATFORM ASSEMBLY - turntable leveler, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

PLATFORM - turntable leveler

1шт.

14

S242793

BUSHING

- platform

4шт.

15

178-57

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW - set, hex socket headless, 3/8 NC x 3/4 inch, cone pt

4шт.

16

S619226

BRACKET

- leveler cylinder to platform, used with 3/8 inch hardware, Ref. 17, no longer available, for service order Refs. 16B, 40, and 41, Serial Range: -JAK0033106

2шт.

16a

S619226

BRACKET

- leveler cylinder to platform, used with 1/2 inch hardware and spacer, Refs. 37 - 39, no longer available, for service order Refs. 16B, 40 and 41, Start Serial: JAK0033106

2шт.

16b

S619721

BRACKET

- leveler cylinder to platform, used with Refs. 37 - 41

2шт.

17

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

6шт.

18

S615046

GUARD

- dirt, leveler cylinder

2шт.

19

S95569

WASHER

- flat, special, hardened

8шт.

20

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

8шт.

21

S516476

COVER

- swivel, lower

1шт.

22

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

23

95-11066

WASHER,5/8"

- flat, 21/32 x 1-5/16 x 3/32 inch

4шт.

24

25518R1

BOLT,Hex, 1" - 8 x 2 1/4", Gr 8

- hex, 1 NC x 2-1/4 inch, grade 8

32-36шт.

25

S120727

WASHER

- special, hardened

32-36шт.

26

S108638

PIN

- 1/2 inch, leveler cylinder to cylinder bracket

2шт.

27

S61973

AXLE PIN

PIN - clevis, 1/2 x 3-3/4 inch grip length

2шт.

28

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch

2шт.

29

REF

INSTRUCTION

CONDUIT - 1 (25 mm) ID x 15 inch (381 mm) long, hose guard, cut from S119717X bulk, see below

2шт.

30

S516193

COVER

GUARD - brake, drive motor

4шт.

31

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

10шт.

32

131-64

LOCK NUT,5/8"-11, GC

NUT - light hex, self-locking, 5/8 inch NC

10шт.

33

S619191

COVER

- drive motor

2шт.

34

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

35

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

36

S95569

WASHER

- flat, special, hardened

6шт.

37

S120994

SPACER

- bracket

6шт.

38

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

6шт.

39

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

6шт.

40

S243855

PIN

- leveler cylinder to cylinder bracket

2шт.

41

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

S119717X

CONDUIT

- 1 inch (25 mm) ID x 16 ft (4.88 m) long

1шт.
