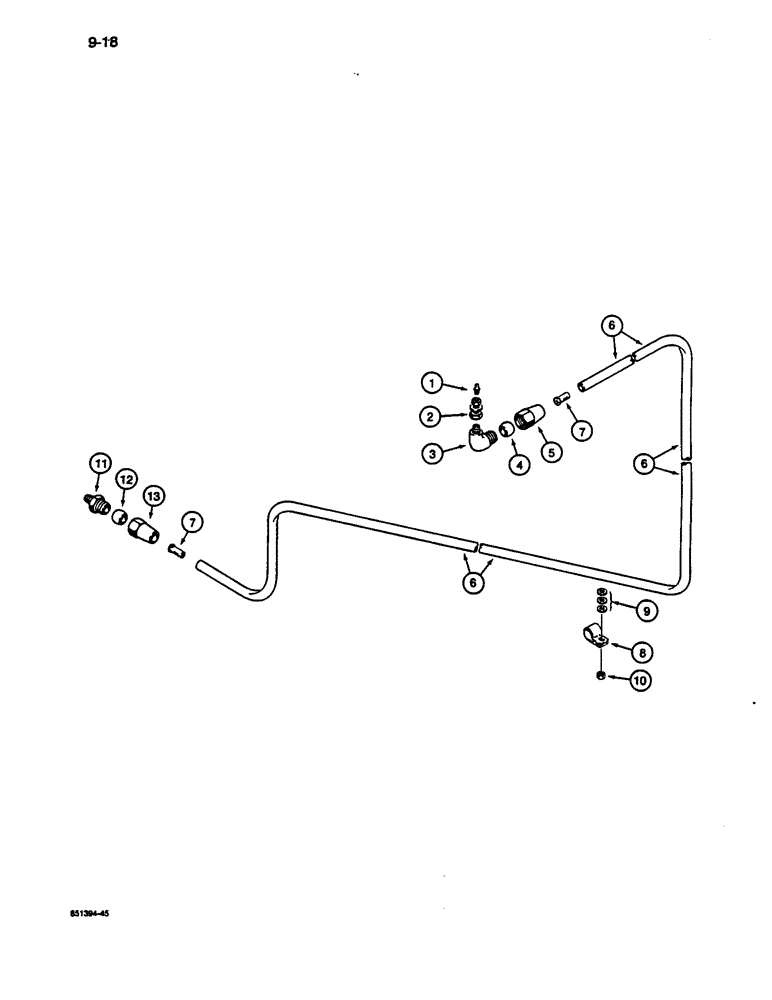

Запчасти Case 1187C (9-18) - TURNTABLE BEARING LUBRICATION LINE (09) - CHASSIS

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

2

217-226

COUPLING

ADAPTER - bulkhead, 1/8 fem PT x 5/8-18 inch str thread

1шт.

222-1847

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

- 90 degree, compression, 3/8 tube OD x 1/8 inch PT, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, male

1шт.

4

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

5

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

6

S119833

TUBE - 3/8 (9 mm) ID x 52 inch (1321 mm) long, nylon, lubrication line, cut from S118405X bulk tube, see below

1шт.

7

222-2446

INSERT,1/4" Tube

SLEEVE - spherical, 3/8 inch tube OD

2шт.

8

A61275

CLIP

CLAMP - nylon tube to bottom of cab floor plate

1шт.

9

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

3шт.

10

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

1шт.

222-1839

FITTING,17/32"-24 x 1/8" NPT

ADAPTER - compression, 3/8 tube OD x 1/8 inch PT, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

ADAPTER - straight, male

1шт.

12

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

13

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

S118405X

HOSE

TUBE - bulk, nylon, 3/8 inch (9 mm) ID x 50 ft (15.24 m) long

1шт.
