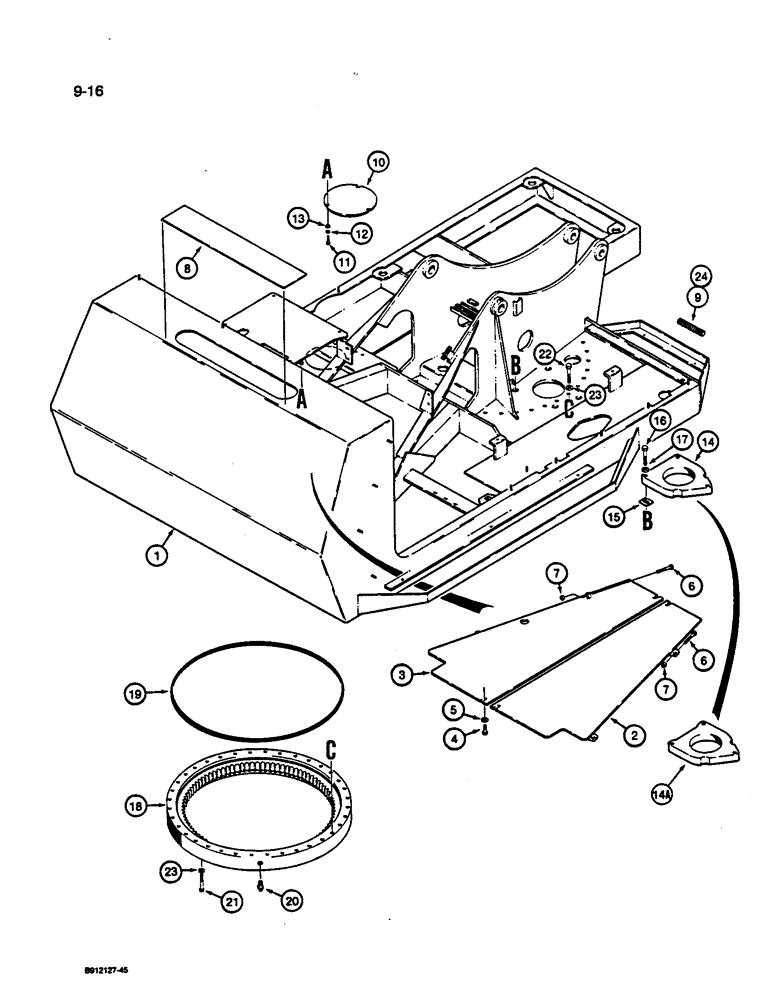

Запчасти Case 1187C (9-16) - TURNTABLE AND BEARING (09) - CHASSIS

1

S956930

ASSEMBLY

TURNTABLE - logger, must have counterweight material of 7500 lb (3402 kg) added at the time of installation, contact representatives of the JI Case Co. for details, Includes: Ref. 2 - 7

1шт.

2

S517619

GUARD ASSY.

GUARD - lower protection, right-hand

1шт.

3

S517621

GUARD ASSY.

GUARD - lower protection, left-hand

1шт.

4

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

5

95-11066

WASHER,5/8"

- flat, 21/32 x 1-5/16 x 3/32 inch

4шт.

6

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

7

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

8

S242214

PLATE

- cover, Serial Range: welds-turntable

1шт.

9

S119733

CONDUIT

- 1 (25 mm) ID x 28 inch (711 mm) long, turntable to frame, hose guard, cut from S119717X bulk, see below

1шт.

10

S241192

COVER

- hydraulic tank drain

1шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

3шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

3шт.

14

S517316

SHEET

SUPPORT - swing gearbox mounting, welded to turntable, no longer available, for service order S619714 support, (Ref. 14A)

1шт.

14a

S619714

PLATE

SUPPORT - swing gearbox mounting, Serial Range: welded-turntable

1шт.

15

S84889

SHIM,.003" Thk

(.0762 mm), Swing gearbox mounting to turntable .003" Thk

1шт.

15

S77916

SHIM,.005" Thk

(.1270 mm), Swing gearbox mounting to turntable .005" Thk

1шт.

15

S84890

SHIM,.007" Thk

(.1778 mm), Swing gearbox mounting to turntable .007" Thk

1шт.

15

S77917

SHIM,.010" Thk

(.2540 mm), Swing gearbox mounting to turntable .010" Thk

1шт.

15

S77918

SHIM,.015" Thk

(.3810 mm), Swing gearbox mounting to turntable .015" Thk

1шт.

15

S77919

SHIM,.030" Thk

(.7620 mm), Swing gearbox mounting to turntable .030" Thk

1шт.

15

S77920

SHIM,.060" Thk

(1.524 mm), Swing gearbox mounting to turntable .060" Thk

1шт.

16

25894R1

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

- hex, 1 NC x 3-1/2 inch, grade 8

3шт.

17

S120727

WASHER

- special, hardened

3шт.

S508670

BEARING ASSY

BEARING ASSEMBLY - turntable, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

BEARING - without seals

1шт.

19

S105067

SEAL

- 156 inch (3962 mm) long, bearing, cut to required length

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

4шт.

21

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

36шт.

22

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

32шт.

23

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, special

72шт.

24

S120274

CONDUIT

- 20 inch (508 mm) long, guard, cut from S119717X bulk, see below

2шт.

24

S120275

CONDUIT

- 40 inch (1016 mm) long, guard, cut from S119717X bulk, see below

1шт.

24

S120273

CONDUIT - 15 inch (381 mm) long, guard, cut from S119717X bulk, see below

1шт.

24

S119725

CONDUIT

- 8 inch (203 mm) long, guard, cut from S119717X bulk, see below

2шт.

S119717X

CONDUIT

- bulk roll, 1(25 mm) ID x 192 inch (4877 mm) long

1шт.
