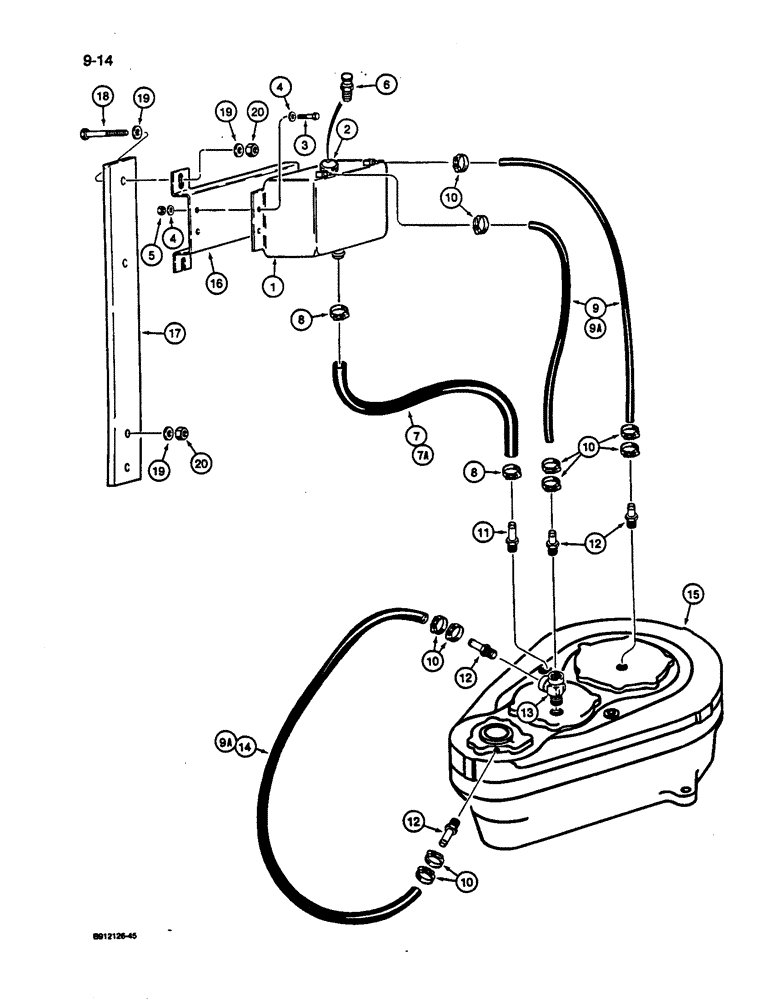

Запчасти Case 1187C (9-14) - SWING GEARBOX LUBRICATION SYSTEM (09) - CHASSIS

S516470

CONTAINER

RESERVOIR ASSEMBLY - lubricant, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - lubricant

1шт.

2

N8793

CAP

- reservoir

1шт.

3

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

4

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4-8шт.

5

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

6

152127H1

BREATHER,1/8"-27, Short

- reservoir

1шт.

7

S120321

HOSE,0.63" ID x 23.00", SAE 30R2 Type 3 or SAE 100R6

- Reservoir to gearbox cover, Cut from S118576X bulk hose, See below, Used on models with a shroud 0.63" ID x 23.00", SAE 30R2 Type 3 or SAE 100R6

1шт.

7a

S120538

HOSE - 5/8 (16 mm) ID x 25 inch (635 mm) long, reservoir to gearbox cover, cut from S118576X bulk hose, see below, used on models without a shroud

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - adj, 9/16 - 1-1/16 inch dia, used with 5/8 inch ID hoses

2шт.

9

S120211

HOSE,0.25" ID x 28.00", SAE 30R6 or SAE 100R3

- Reservoir to bearing covers, Cut from 427683C1 bulk hose, See below, used on models with a shroud 0.25" ID x 28.00", SAE 30R6 or SAE 100R3

2шт.

9a

S120213

HOSE,0.25" ID x 32.00", SAE 30R6 or SAE 100R3

- Reservoir to bearing covers, Cut from 427683C1 bulk hose, See below, used on models without a shroud 0.25" ID x 32.00", SAE 30R6 or SAE 100R3

3шт.

10

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - hose, No. 4, Type F, used with 1/4 inch ID hoses

10шт.

11

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

- stem, straight, 5/8 hose ID x 3/4 inch PT, gearbox cover, used with 5/8 inch ID hose

1шт.

12

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

- stem, straight, 1/4 hose ID x 1/8 inch PT, bearing covers, used with 1/4 inch ID hose

4шт.

13

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- 1/8 inch female PT branch x female PT x PT, gearbox bearing cover

1шт.

14

S120210

HOSE,0.25" ID x 24.00", SAE 30R6 or SAE 100R3

- Crossover, Tee to bearing cover, Cut from S120557 bulk hose, See below, Used on models with a shroud 0.25" ID x 24.00", SAE 30R6 or SAE 100R3

1шт.

15

REF

INSTRUCTION

GEARBOX ASSEMBLY - swing, parts list Figure 9-10

1шт.

16

S242000

BRACKET

- used on models without a shroud

1шт.

17

S119154

BAR

- bracket, used on models without a shroud

1шт.

18

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Used on models without a shroud Hex, 1/2"-13 x 1 3/4", G5

2шт.

19

S95569

WASHER

- flat, special, hardened, used on models without a shroud

6шт.

20

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC, used on models without a shroud

4шт.

S118576X

LARGE HOSE,15.88mm ID x 7620mm L

HOSE - bulk, 5/8 inch (16 mm) ID x 25 ft (762 cm) long

1шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

- bulk, 1/4 inch (6 mm) ID x 25 ft (762 cm) long

1шт.
