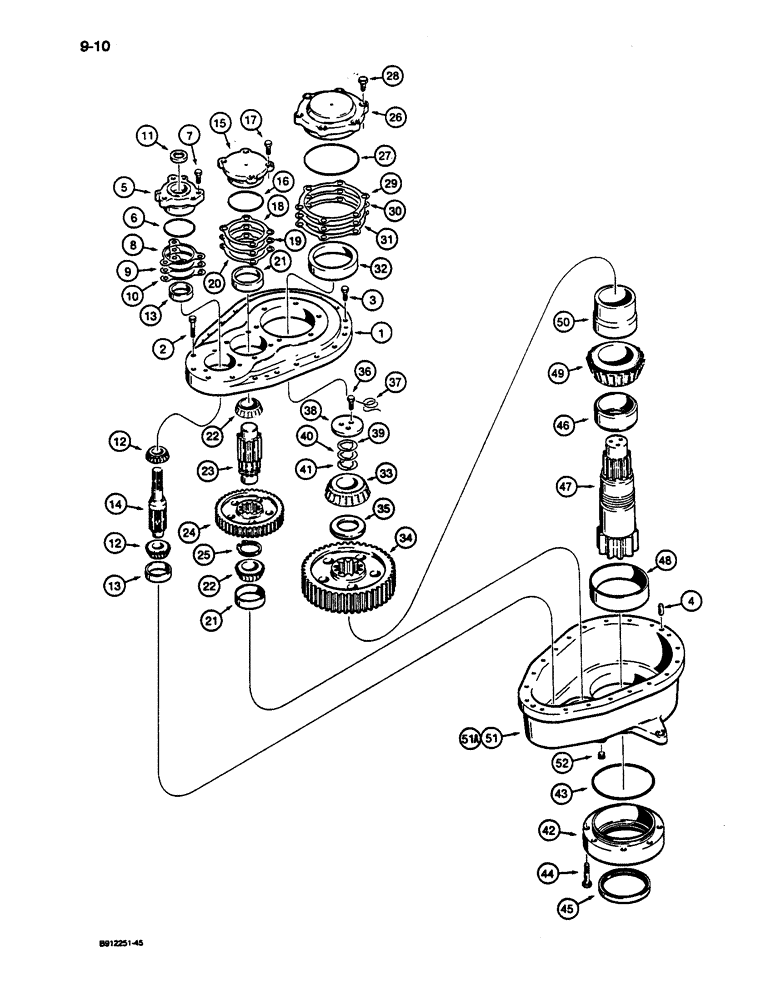

Запчасти Case 1187C (9-10) - SWING GEARBOX (09) - CHASSIS

S619235

GEARBOX ASSY

GEARBOX ASSEMBLY - swing, no longer available, for service order S619716 gearbox assembly, Includes: Ref. 1 - 53

1шт.

S619716

GEARBOX ASSY

GEARBOX ASSEMBLY - swing

1шт.

1

S956557

COVER

- gearbox housing

1шт.

Must use Loctite P/N B17423

1шт.

2

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

- hex head, 12 mm - 1.75 x 60 mm (8.8)

4шт.

3

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 40 mm

16шт.

4

S65037

DOWEL

PIN - dowel, Serial Range: cover-housing

2шт.

5

S515593

COVER

- bearing, input shaft

1шт.

6

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

Bearing cover -237, 70 Duro, 3.359" ID x .139" Thk

1шт.

7

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 40 mm

3шт.

8

S240687

SHIM,.127mm Thk

Input shaft bearing cover (.005") .127mm Thk

1шт.

9

S240688

SHIM,.177mm Thk

Input shaft bearing cover (.007") .177mm Thk

1шт.

10

S240689

SHIM,.508mm Thk

Input shaft bearing cover (.020") .508mm Thk

1шт.

11

F53634

SEAL

- oil, input shaft

1шт.

12

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

BEARING - tapered roller, input shaft

2шт.

13

165964R1

BEARING CUP

CUP - bearing, input shaft

2шт.

14

S616978

SHAFT

- input

1шт.

15

S242044

COVER

- bearing, intermediate shaft

1шт.

16

238-6245

O-RING,0.139" Thk x 4.359" ID, -245, Cl 6, 90 Duro

- 4-3/8 ID x 1/8 inch wide

1шт.

17

814-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

4шт.

18

S240546

SHIM,.127mm Thk

Intermediate shaft bearing cover (.005") .127mm Thk

1шт.

19

S240547

SHIM,.177mm Thk

Intermediate shaft bearing cover (.007") .177mm Thk

1шт.

20

S240548

SHIM,.508mm Thk

Intermediate shaft bearing cover (.020") .508mm Thk

1шт.

21

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - bearing, intermediate shaft

2шт.

22

ST783A

TAPERED BEARING,2" ID x 3.6718" OD x 1.1875"

BEARING - tapered roller, intermediate shaft

2шт.

23

S617089

SHAFT

- intermediate gear

1шт.

24

S616857

GEAR

- drive, intermediate

1шт.

25

100-11275

SNAP RING,#275, Ext

Ring, Snap, , drive gear #275, Ext

1шт.

26

S516758

COVER

- bearing, output shaft, drive end

1шт.

27

238-5260

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

- 6-1/2 ID x 1/8 inch wide

1шт.

28

613-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

6шт.

29

S240540

SHIM,.127mm Thk

Output shaft bearing cover (.005") .127mm Thk

1шт.

30

S240541

SHIM,.177mm Thk

Output shaft bearing cover (.007") .177mm Thk

1шт.

31

S240542

SHIM,.508mm Thk

Output shaft bearing cover (.020") .508mm Thk

1шт.

32

55446R1

CUP ASSY.

CUP - bearing, output shaft, drive end

1шт.

33

S118455

ROLLER BEARING,69.85 mm ID x 41.275 mm

BEARING - tapered roller, output shaft, drive end

1шт.

34

S618295

GEAR

- drive, output shaft

1шт.

B17423

LOCTITE

- red, 10cc bottle, used on all Refs.

1шт.

35

S120017

SPACER

- drive gear, upper

1шт.

36

S120018

BOLT

- hex, special, 12 - 1.75 x 25 mm, class 10.9

3шт.

37

391-629

ELECTRICAL WIRE

WIRE - No. 16 x 24 inch, lock, retainer plate bolt, replaces a No. 13 gauge x 24 inch long wire used on some models in production

1шт.

38

S242427

PLATE

- retainer

1шт.

39

40587

SHIM

- retainer to bearing, .005 inch (0.127 mm) thick

1шт.

40

S120021

SHIM,.177mm Thk

Retainer to bearing (.007") .177mm Thk

1шт.

41

S120022

SHIM,.508mm Thk

Retainer to bearing (.020") .508mm Thk

1шт.

42

S618290

COVER

- bearing, output shaft, driven end

1шт.

43

238-5265

O-RING,0.139" Thk x 7.73" ID, -265, Cl 5, 75 Duro

- 7-1/2 ID x 1/8 inch wide

1шт.

44

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

8шт.

45

S242103

OIL SEAL

- oil, shaft collar

1шт.

Must use Loctite P/N B17423

1шт.

46

S242014

COLLAR

- output shaft

1шт.

Must use Loctite P/N B17423

1шт.

47

S618289

SHAFT

- pinion, output

1шт.

48

S403146

BEARING, CUP

CUP - bearing, output shaft, driven end

1шт.

49

879259R91

BEARING

- tapered roller, output shaft, driven end

1шт.

50

S242425

SPACER

- drive gear, lower

1шт.

51

S957007

HOUSING

- swing gearbox, used on S619235 gearbox assembly, no longer available, for service order S957133 housing, Refs.51A

1шт.

Must use Loctite P/N B17423

1шт.

51a

S957133

HOUSING

- swing gearbox, used on S619716 gearbox assembly

1шт.

52

221-659

DRAIN PLUG,Hex Soc, 3/4" NPT

PLUG - hex socket, 3/4 inch PT, magnetic

1шт.

53

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket, 3/4 inch PT, not shown

1шт.

B17423

LOCTITE

- red, 10 cc bottle, Includes Refs 1, 45, 46 and 51

1шт.
