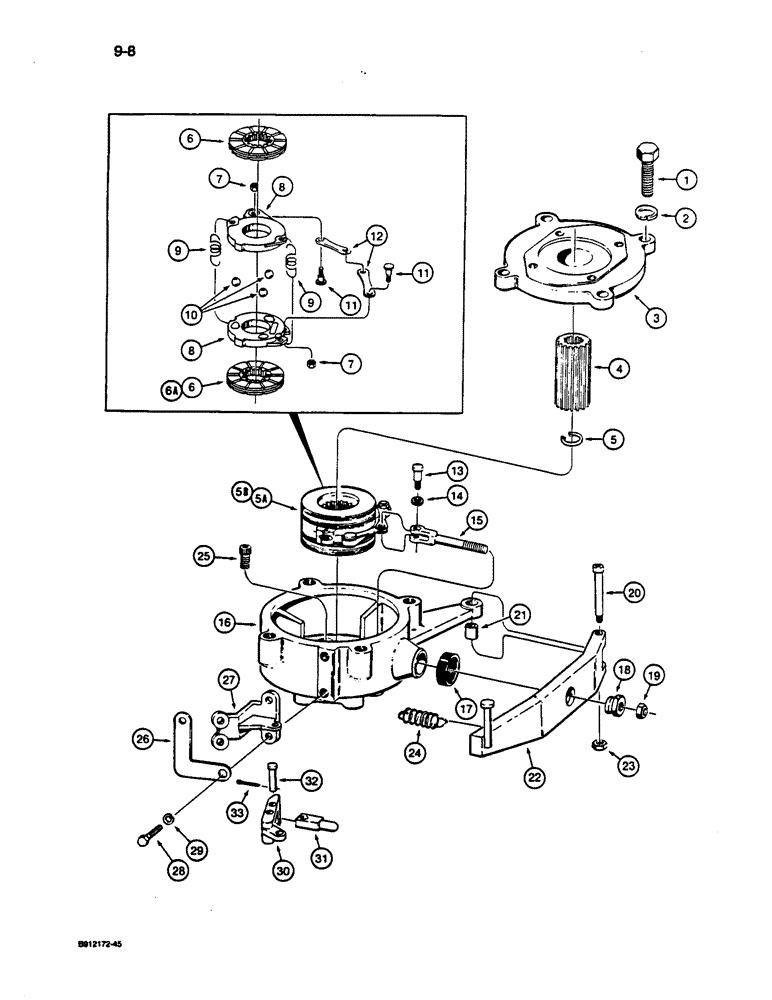

Запчасти Case 1187C (9-08) - SWING BRAKE (09) - CHASSIS

1

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

3

S507605

COVER

- brake housing

1шт.

4

S510271

SHAFT

COUPLING - splined, drive, Serial Range: motor-gearbox

1шт.

5

R16289

SNAP RING,1.06", Int, #106

Ring, Snap, , coupling 1.06", Int, #106

1шт.

5a

S517185

BRAKE

ASSEMBLY - disc, no longer available, for service order S518033 brake assembly, Ref. 5B, Includes: Ref. 6 - 12

1шт.

5b

S518033

BRAKE

ASSEMBLY - disc, Includes: Ref. 6 - 12

1шт.

6

1975454C1

CLUTCH DISC

DISC - brake, used with S517185 brake assembly, no longer used, for service order S302039 disc, Ref. 6A

2шт.

6a

S302039

DISC

- brake, used with S518033 brake assembly

2шт.

S216242

CLUTCH DISC

ACTUATOR ASSEMBLY - brake, Includes: Ref. 7 - 12

1шт.

7

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

2шт.

8

S68704

DISC

ACTUATOR - brake

2шт.

9

S68705

SPRING

- actuator

2шт.

10

S68703

BALL

- actuator, 3/4 inch diameter

3шт.

11

S105785

STUD

-, Serial Range: link-actuator

2шт.

12

S68707

LINK

- brake actuator

2шт.

13

S66646

BOLT,5/16" x 3/4"

- brake, Serial Range: rod-link

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

S64912

YOKE

CLEVIS - with rod, brake actuator

1шт.

16

S618805

HOUSING

- brake

1шт.

17

S64913

BOOT

- dust, housing

1шт.

18

S64911

NUT

- special, brake actuator rod at lever

1шт.

19

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

20

S64920

BOLT,5/16" x 2"

- brake, Serial Range: housing-lever

1шт.

21

S64921

BUSHING

- brake, Serial Range: housing-lever

1шт.

22

S203304

LEVER

- brake actuator

1шт.

23

131-205

LOCK NUT,5/16"-18

NUT - heavy hex, self-locking, 5/16 inch NC

1шт.

24

S202938

SPRING

- lever return

1шт.

25

61-33820

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - hex socket head, 3/8 NC x 1-1/4 inch, use with Loctite, see below

3шт.

See Fig. 9-6 for swing brake cable.

1шт.

26

S230205

BRACKET

- lever return spring

1шт.

27

S510472

BRACKET

- mounting, cable

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

29

492-11038

LOCK WASHER,3/8"

2шт.

30

S230202

LEVER

-, Serial Range: cable-plunger

1шт.

31

S64910

PLUNGER

- brake actuator lever

1шт.

32

S10717

PIN

- clevis, hardened, cable lever

2шт.

33

32-68

COTTER PIN,3/32" x 1/2"

PIN - cotter, 3/32 x 1/2 inch

2шт.

B17422

LOCTITE

- 242 Blue, 50cc bottle, use with Ref. 25 bolt

1шт.

See Fig. 9-6 for swing brake cable.

1шт.
