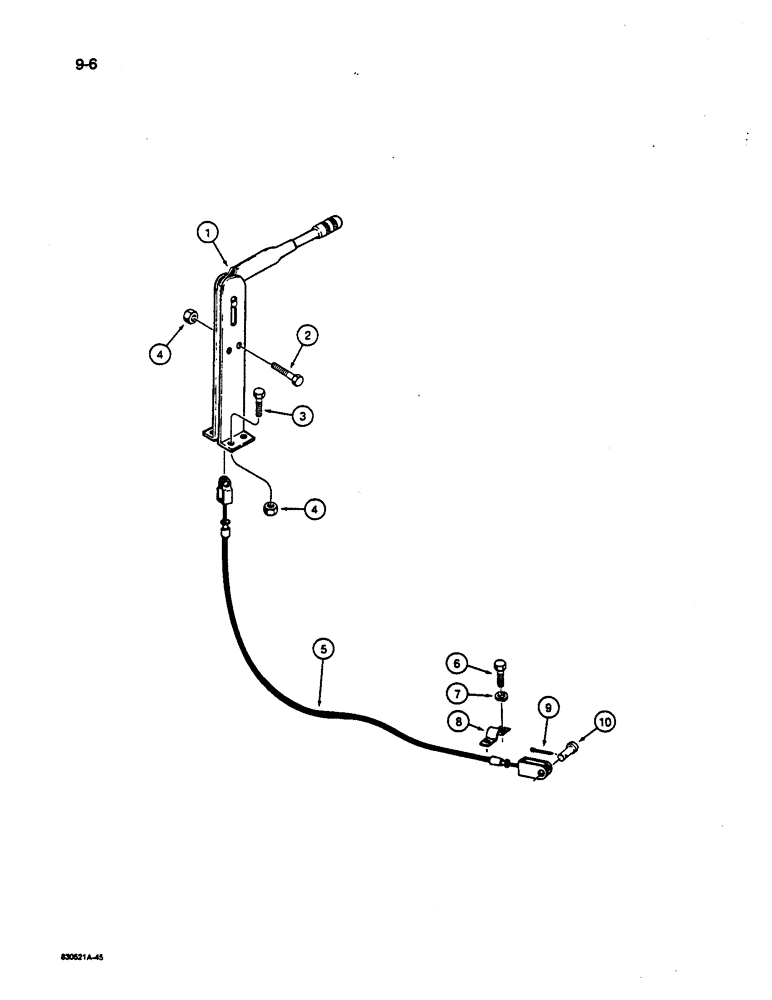

Запчасти Case 1187C (9-06) - SWING BRAKE LEVER AND CABLE (09) - CHASSIS

1

S514575

LEVER

- swing brake

1шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

4

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

6шт.

5

S33995

CABLE

- swing brake

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

D121608

CLAMP

- brake cable

1шт.

9

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

10

S10715

PIN

- clevis, 1/4 x 7/8 inch

1шт.
