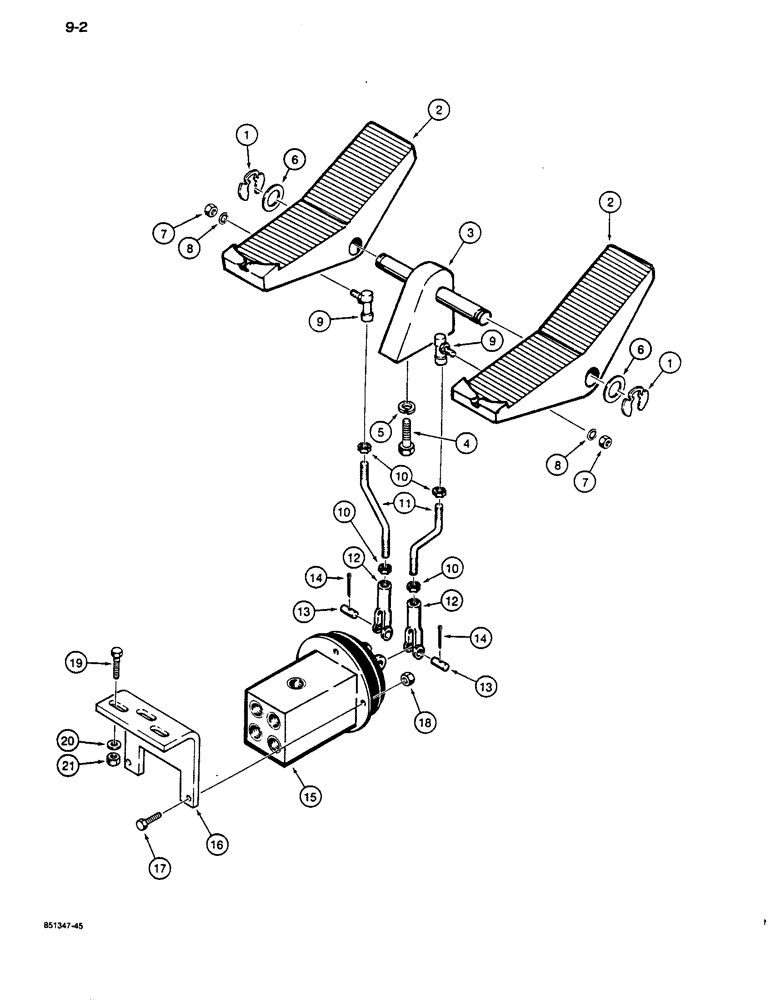

Запчасти Case 1187C (9-02) - FOOT PEDAL CONTROLS (09) - CHASSIS

1

D95096

SNAP RING,M15.88 x 1.27mm Thk

- retaining, foot pedal

4шт.

2

S618530

PEDAL

- foot control

4шт.

3

S239280

BRACKET

- mounting, foot pedal

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

6

96-81006

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

- flat, 41/64 x 1-3/64 x 1/8 inch, hardened

4шт.

7

231-2446

NUT,3/8"-24, GB

NUT - light hex, self-locking, 3/8 inch NF

4шт.

8

93-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 3/8 inch

4шт.

9

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT - ball, at foot pedal, replaces D38296

4шт.

10

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

8шт.

11

S236860

ROD

- control, foot pedal

4шт.

12

S66383

YOKE

CLEVIS - control rod, at valve

4шт.

13

S105940

PIN,11.02mm OD x 22.23mm L

- clevis, at valve

4шт.

14

32-824

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

15

S517359

VALVE

ASSEMBLY - control, foot pedal, parts list Figure 8-54

2шт.

16

S513598

BRACKET

- mounting, control valve

2шт.

17

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

6шт.

18

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

6шт.

19

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

6шт.

20

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch

6шт.

21

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

6шт.
