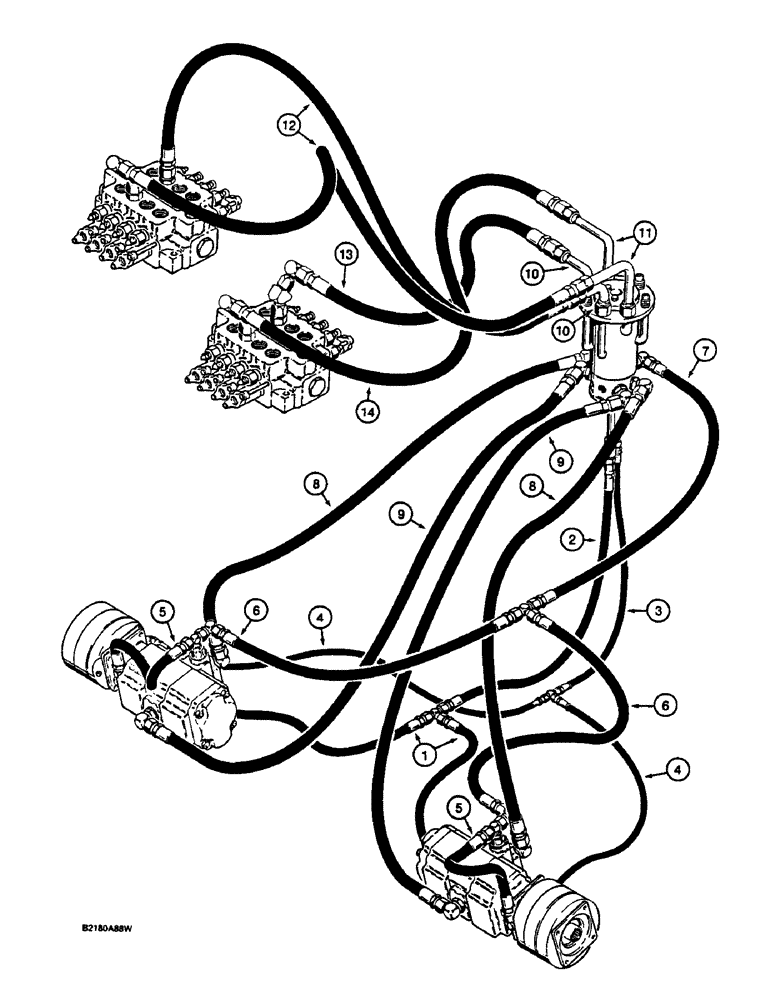

Запчасти Case 1187C (1-10) - PICTORIAL INDEX, TRACK DRIVE HYDRAULICS (00) - PICTORIAL INDEX

1

Hose at Drive Motors to Hydraulic Swivel, Figure 7-2

1шт.

2

Hose at Hydraulic Swivel, Figure 7-2

1шт.

3

Hose to Inner Swivel, Figure 7-2

1шт.

4

Inner Swivel Hose to Hoses at Drive Brakes, Figure 7-2

1шт.

5

Drain Hose, Figure 6-10

1шт.

6

Hose at Drive Motor to Seven Port Swivel, Figure 6-10

1шт.

7

Hose at Port 1 Seven Port Swivel, Figure 6-10

1шт.

8

Drive Motor to Port 2 and 7 of Seven Port Swivel, Figure 6-10

1шт.

9

Drive Motor to Port 3 and 6 of Seven Port Swivel, Figure 6-10

1шт.

10

Tube at Port 2 and 7 of Seven Port Swivel, Figure 6-12

1шт.

11

Tube at Port 3 and 6 of Seven Port Swivel, Figure 6-12

1шт.

12

Hose from tube at Seven Port Swivel to Outside Control Valve, Figure 6-12

1шт.

13

Hose from tube at Seven Port Swivel to Port B3 at Inside Control Valve, Figure 6-12

1шт.

14

Hose from tube at Seven Port Swivel to Port A3 at Inside Control Valve, Figure 6-12

1шт.
