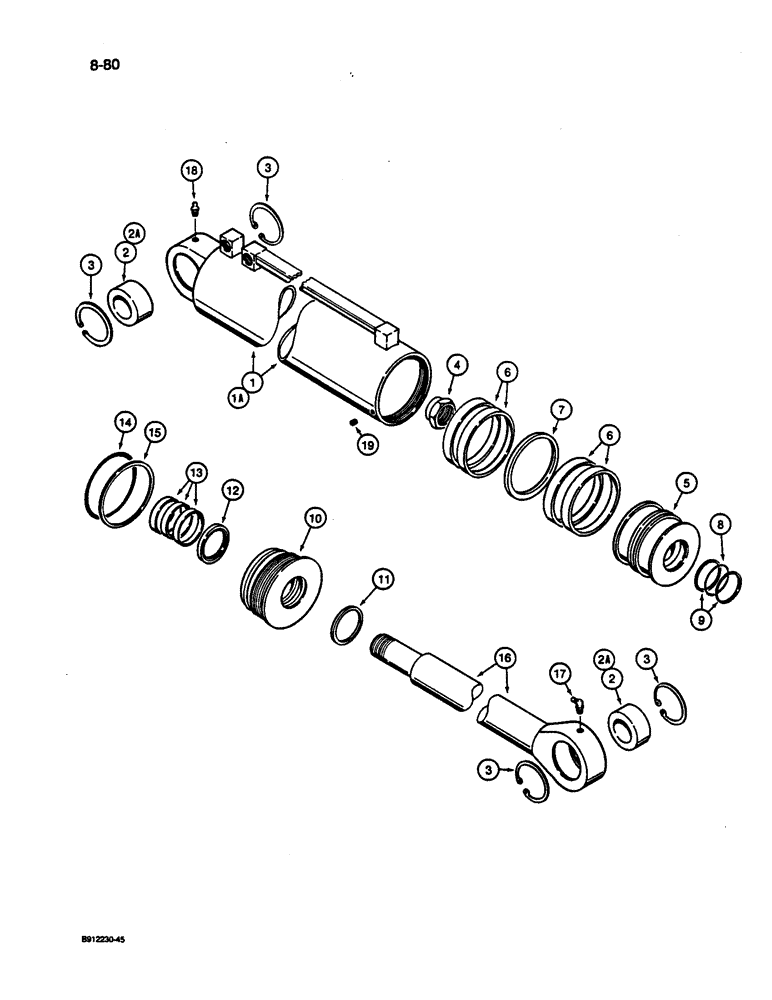

Запчасти Case 1187C (8-80) - SHEAR ARM CYLINDER (08) - HYDRAULICS

S615305

CYLINDER ASSY.

CYLINDER ASSEMBLY - 6-1/2 (165 mm) ID x 24-1/2 inch (622 mm) stroke, shear arm, no longer available, for service order S619585 cylinder assembly, Includes: Ref. 1 - 19

1шт.

S619585

CYLINDER ASSY.

CYLINDER ASSEMBLY - 6-1/2 (165 mm) ID x 24-1/2 inch (622 mm) stroke, shear arm, for mounting hardware see Figure 9-46, Includes: Ref. 1 - 19

1шт.

1

S615306

TUBE ASSY.,6.53" ID x 36.25, 4.73" L

TUBE - cylinder, no longer available, for service order S619586 tube, Ref. 1A

1шт.

1a

S619586

CYLINDER

TUBE - cylinder

1шт.

2

R26680

SPHERICAL BEARING,63.5mm ID x 100.01mm OD x 55.6mm W

- self-aligning, at rod eye and closed end of cylinder, no longer available, for service order 15-40 bushing, Ref. 2A

2шт.

2a

15-40

BUSHING

- self-aligning, at rod eye and closed end of cylinder

2шт.

3

A55435

SNAP RING,3.938", Int, #393

Ring, Snap, , bushing 3.938", Int, #393

4шт.

4

S83249

NUT

- hex, self-locking, special

1шт.

5

S514538

PISTON

- cylinder

1шт.

6

S97856

RING

- wear, piston

4шт.

7

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL - piston

1шт.

8

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

Piston to rod -238, 70 Duro, 3.484" ID x .139" Thk

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, piston O-ring

2шт.

10

S514539

GLAND

- cylinder

1шт.

11

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

12

S118038

SEAL

- piston rod

1шт.

13

S104133

OIL SEAL

RING - wear, gland

3шт.

14

3042933R1

O-RING,-437, 70 Duro, 5.975" ID x .275" Thk

- gland

1шт.

15

S99881

WASHER

RING - backup, gland O-ring

1шт.

16

S514508

ROD ASSY.

ROD - piston, 3-1/2 inch (89 mm) diameter

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Rod end 90º, 1/8" NPT x .84" lg

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, closed end

1шт.

19

178-442

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 1/2", Flat Pt

SCREW - set, hex socket headless, 5/16 NC x 1/2 inch, flat

1шт.
