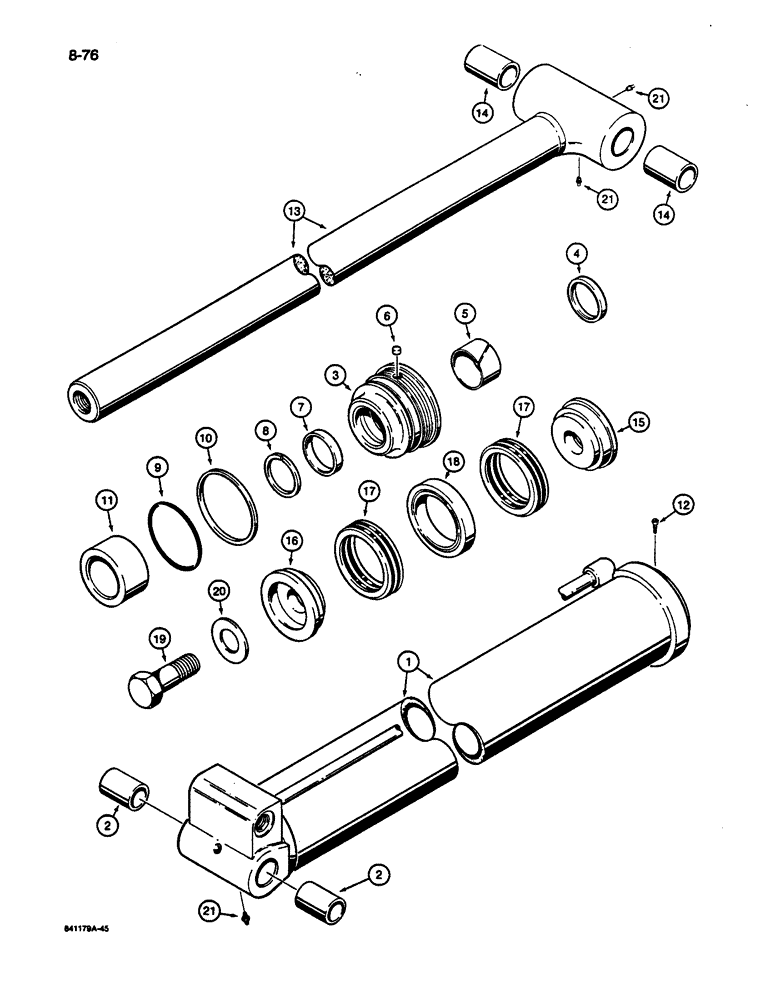

Запчасти Case 1187C (8-76) - TOOL CYLINDER, USED WITH FELLER BUNCHER ONLY (08) - HYDRAULICS

G107679

CYLINDER

ASSEMBLY - 5-1/2 (140 mm) ID x 45-1/2 inch (1156 mm) stroke, tool, used with Feller-Buncher, for mounting hardware see Figure 9-40, Includes: Ref. 1 - 21

1шт.

1

G107680

TUBE,5.5" DIA x 55.59" L

- cylinder, Includes: Ref. 2

1шт.

2

S210601

BUSHING,38.06mm ID x 50.93mm OD x 63.5mm L

- tube mounting

2шт.

G104348

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 10

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

See Fig. 8-74 for tool cylinder used on models with Allied Saw.

1шт.

Part of seal kit P/N G105566

1шт.

5

G102428

BEARING,2.75mm ID x 69.85mm OD x 37.85 W

BUSHING - center

1шт.

See Fig. 8-74 for tool cylinder used on models with Allied Saw.

1шт.

Part of seal kit P/N G105566

1шт.

6

G102569

PLUG

- nylon, thread locking, if used

1шт.

7

G109053

OIL SEAL

SEAL - U-cup, piston rod, wide, with O-ring

1шт.

See Fig. 8-74 for tool cylinder used on models with Allied Saw.

1шт.

Part of seal kit P/N G105566

1шт.

7

G100781

SEAL ASSY.

SEAL - U-cup, piston rod, service option, severe heat or cold

1шт.

8

G107999

SEAL

SEAL - piston rod, narrow, with groove

1шт.

See Fig. 8-74 for tool cylinder used on models with Allied Saw.

1шт.

Part of seal kit P/N G105566

1шт.

9

238-5251

O-RING,0.139" Thk x 5.109" ID, -251, Cl 5, 75 Duro

Gland -251, 70 Duro, 5.109" ID x .139" Thk

1шт.

See Fig. 8-74 for tool cylinder used on models with Allied Saw.

1шт.

Part of seal kit P/N G105566

1шт.

10

G107971

RING

- backup, gland O-ring

1шт.

See Fig. 8-74 for tool cylinder used on models with Allied Saw.

1шт.

Part of seal kit P/N G105566

1шт.

11

S220102

SPACER

- stroke limiter

1шт.

12

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

13

S512193

ROD ASSY.

ROD - piston, 2-3/4 inch (70 mm) diameter, Includes: Ref. 14

1шт.

14

S210601

BUSHING,38.06mm ID x 50.93mm OD x 63.5mm L

- piston rod

2шт.

15

S220101

PISTON

- split, rod end

1шт.

16

D49165

PISTON

- split, bolt end

1шт.

17

D47207

GASKET KIT

PACKING - piston

2шт.

See Fig. 8-74 for tool cylinder used on models with Allied Saw.

1шт.

Part of seal kit P/N G105566

1шт.

18

D47212

BEARING WASHER,4.256" ID x 5.491" OD x 0.748"

RING - packing

1шт.

19

25987R1

BOLT,Hex, 1 1/2" - 12 x 3 1/2", Gr 8

- hex, piston rod

1шт.

20

NLS

NO LONGER SERVICED

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

3шт.

G105566

SEAL KIT

KIT - seal, Includes Refs. 4, 5, 7, 8, 9, 10 and 17

1шт.

See Fig. 8-74 for tool cylinder used on models with Allied Saw.

1шт.
