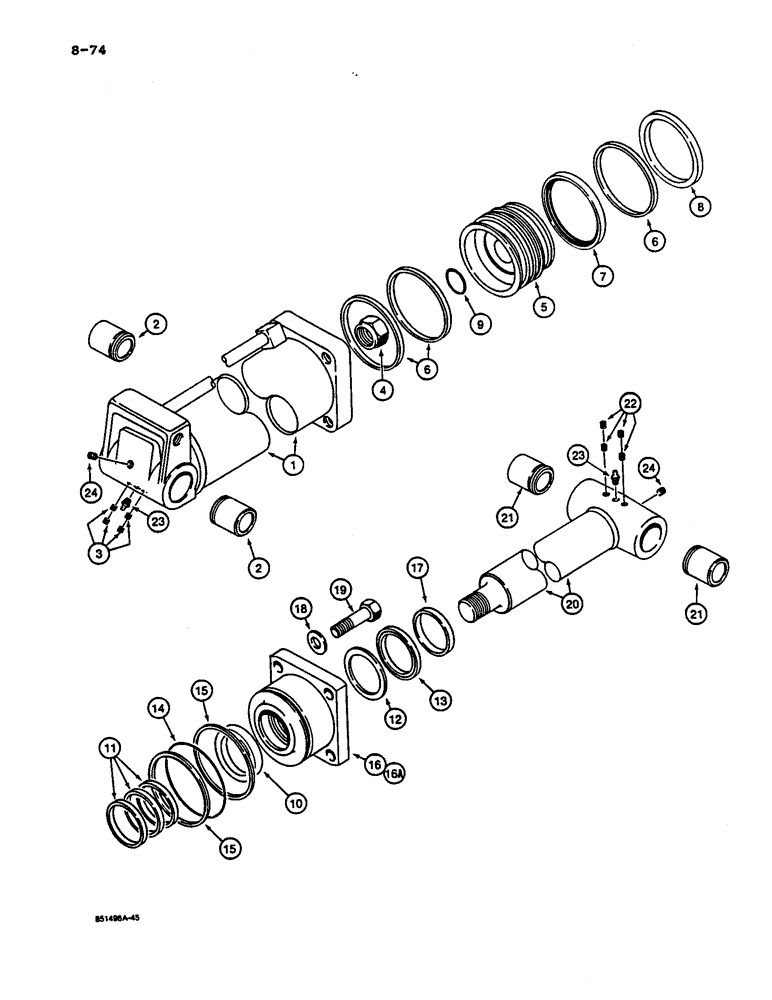

Запчасти Case 1187C (8-74) - ARM & TOOL CYL. ARM CYL. (USED W/ FELLER-BUNCHER & ALLIED SAW) TOOL CYL. (USED W/ ALLIED SAW ONLY) (08) - HYDRAULICS

S956911

CYLINDER

ASSEMBLY - 6-1/2 (165 mm) ID x 45-1/2 inch (1156 mm) stroke, arm and tool, for mounting hardware see Figures 9-38 and 9-40, Includes: Ref. 1 - 22

1-2шт.

S608078

TUBE

ASSEMBLY - cylinder, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

S225645

BUSHING

- tube

2шт.

3

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex socket headless, 5/16 NC x 3/8 inch, cup point

4шт.

4

S83249

NUT

- hex, self-locking, special

1шт.

5

S516913

PISTON

- cylinder

1шт.

6

S97856

RING

- wear, piston

3шт.

7

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL ASSEMBLY - piston, includes three seals

1шт.

8

S120521

OIL SEAL

RING - piston

1шт.

9

238-5329

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- 2 ID x 3/16 inch wide

1шт.

10

S97798

SPACER

- stroke limiter

1шт.

11

S104133

OIL SEAL

RING - wear, gland

3шт.

12

G109030

SEAL,88.32mm ID x 104.44mm OD x 4.9mm Thk

- piston rod, narrow

1шт.

13

S118038

SEAL

- piston rod, wide

1шт.

14

238-5437

O-RING,0.275" Thk x 5.975" ID, -437, Cl 5, 75 Duro

- 6 ID x 1/4 inch, gland

1шт.

15

S99881

WASHER

RING - backup, gland O-ring

2шт.

16

S618039

GLAND

- cylinder, no longer available, order S619031, Ref. 16A, and one S99881 backup ring, Ref. 15 for service

1шт.

16a

S619031

GLAND

- cylinder

1шт.

17

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

18

196-35

WASHER,15/16" x 1 3/4" x .134", HDN

- flat, 15/16 x 1-3/4 x 1/8 inch, hardened

4шт.

19

28-1444

BOLT,Hex, 7/8" - 14 x 2-3/4", Gr 8

- hex, 7/8 NF x 2-3/4 inch, grade 8

4шт.

S508274

ROD

ASSEMBLY - piston, 3-1/2 inch (89 mm) diameter, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

ROD - piston, cylinder

1шт.

21

S225645

BUSHING

- piston rod

2шт.

22

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex socket, 5/16 NC x 3/8 inch, cup point

4шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

24

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

2шт.
