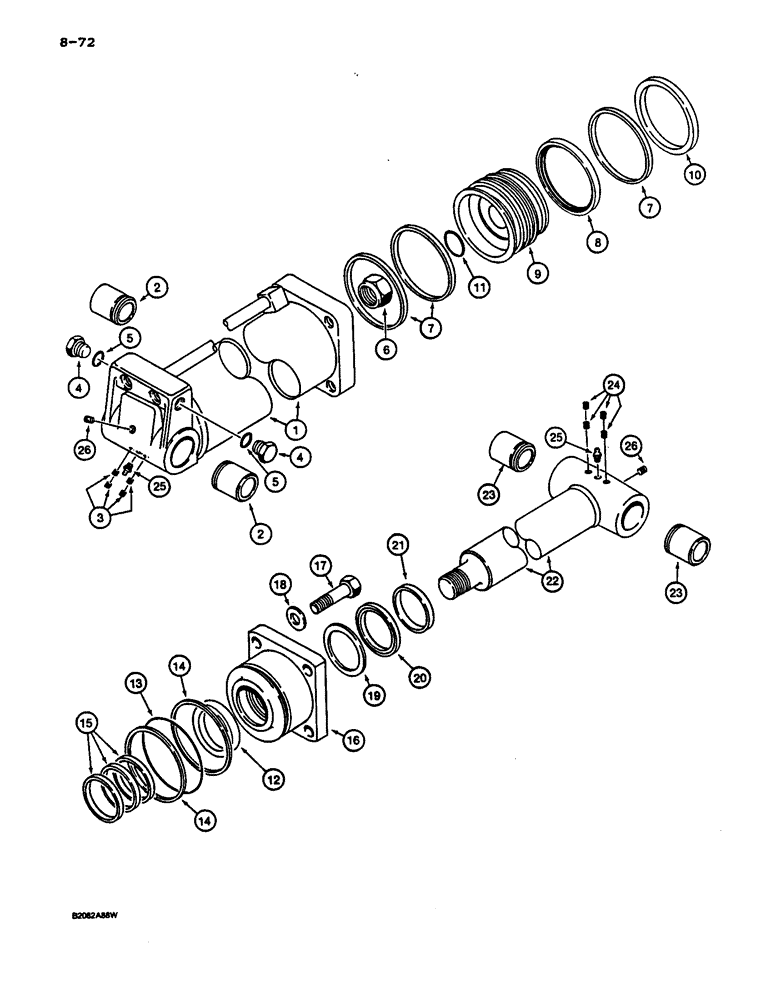

Запчасти Case 1187C (8-72) - BOOM CYLINDER (08) - HYDRAULICS

S957052

CYLINDER

ASSEMBLY - 6-1/2 (165 mm) ID x 45-1/2 inch (1156 mm) stroke, boom, for mounting hardware see Figure 9-38, Includes: Ref. 1 - 24

1шт.

1

S619365

TUBE ASSY.

TUBE - cylinder, Includes: Ref. 2 and 3

1шт.

2

S225645

BUSHING

- tube mounting

2шт.

3

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set hex socket headless, 5/16 NC x 3/8 inch, cup point

4шт.

4

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 5 Hex Hd, 1 5/16"-12 ORB

2шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

6

S83249

NUT

- hex, self-locking, special

1шт.

7

S97856

RING

- wear, piston

3шт.

8

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL ASSEMBLY - piston, includes three seals

1шт.

9

S516913

PISTON

- cylinder

1шт.

10

S120521

OIL SEAL

RING - piston

1шт.

11

238-5329

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- 2 ID x 3/16 inch, piston

1шт.

12

S97798

SPACER

- gland, stroke limiter

1шт.

13

3042933R1

O-RING,-437, 70 Duro, 5.975" ID x .275" Thk

- gland

1шт.

14

S99881

WASHER

RING - backup, gland O-ring

2шт.

15

S104133

OIL SEAL

RING - wear, gland

3шт.

16

S619031

GLAND

- cylinder

1шт.

17

28-1444

BOLT,Hex, 7/8" - 14 x 2-3/4", Gr 8

- hex, 7/8 NF x 2-3/4 inch, grade 8

4шт.

18

96-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 9/64 inch, hardened

4шт.

19

G109030

SEAL,88.32mm ID x 104.44mm OD x 4.9mm Thk

- piston rod, narrow

1шт.

20

S118038

SEAL

- piston rod, wide

1шт.

21

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

22

S508274

ROD

ASSEMBLY - piston, 3-1/2 inch (89 mm) diameter, Includes: Ref. 23 and 24

1шт.

23

S225645

BUSHING

- piston rod

2шт.

24

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex socket, 5/16 NC x 3/8 inch, cup point

4шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

26

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

2шт.
