Запчасти Case 1187C (8-70) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

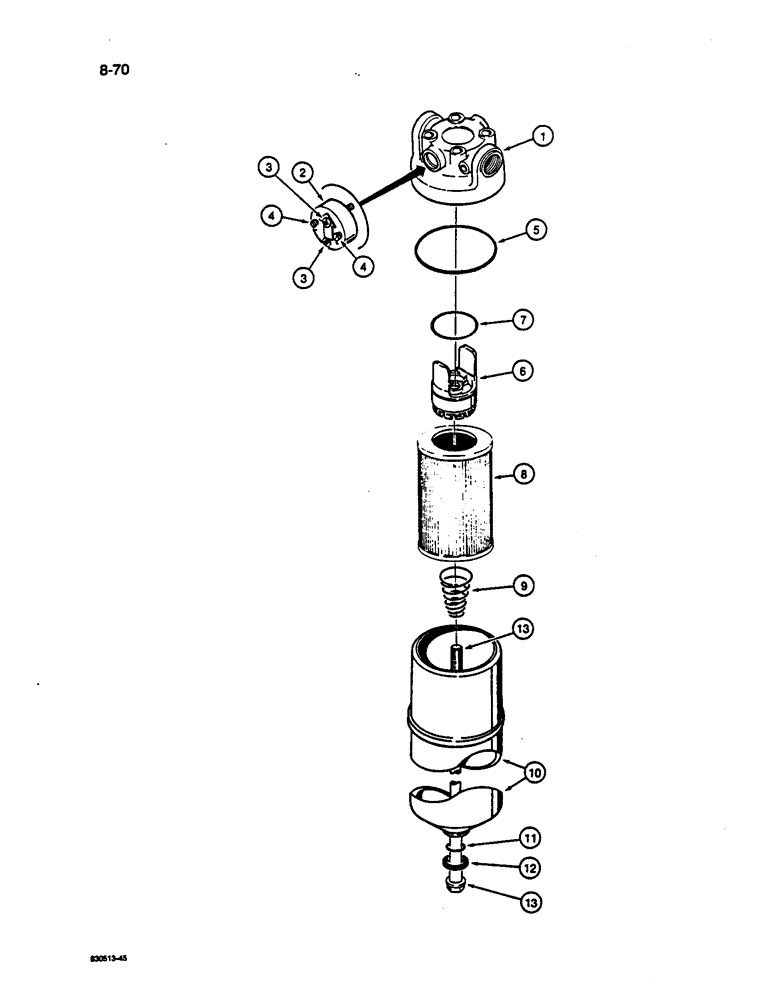

Схема запчастей Case 1187C - (8-70) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

S616066

FILTER

ASSEMBLY - hydraulic oil, no longer available, order individual components separately, for mounting hardware see Figure 8-4, Includes: Ref. 1 - 13

2шт.

S239990

HEAD ASSY.

HEAD ASSEMBLY - filter, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - housing

1шт.

S104920

BRACKET

INDICATOR ASSEMBLY - restriction, electric, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

INDICATOR - restriction, without screws

1шт.

3

187-1110

SCREW,Cross Pan Hd, #8 x 5/8"

- self-tapping, pan head Phillips, No. 8 NC x 5/8 inch

2шт.

4

182-507

SCREW,Sl Pan Hd, #8 - 32 x 5/16", Brass

- machine, pan head slotted, No. 8 NC x 5/16 inch

2шт.

5

S107789

O-RING

- head seal

1шт.

S229904

FILTER

VALVE ASSEMBLY - bypass, replaces S107803 valve assembly, Includes: Ref. 6 an d 7

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

7

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

8

S111605

ELEMENT

- filter

1шт.

9

S104930

SPRING

- filter housing

1шт.

10

S113853

HOUSING

- filter

1шт.

S107793

SEALING WASHER

WASHER ASSEMBLY - filter, Includes: Ref. 11 and 12

1шт.

11

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Bolt seal -210, 70 Duro, .734" ID x .139" Thk

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

13

S111607

BOLT

- special, filter tie

1шт.

14

S111118

ELEMENT

- special flushing, do not use for regular service, use to flush hydraulic system only, not shown

2шт.

Выбрано товаров: 19
