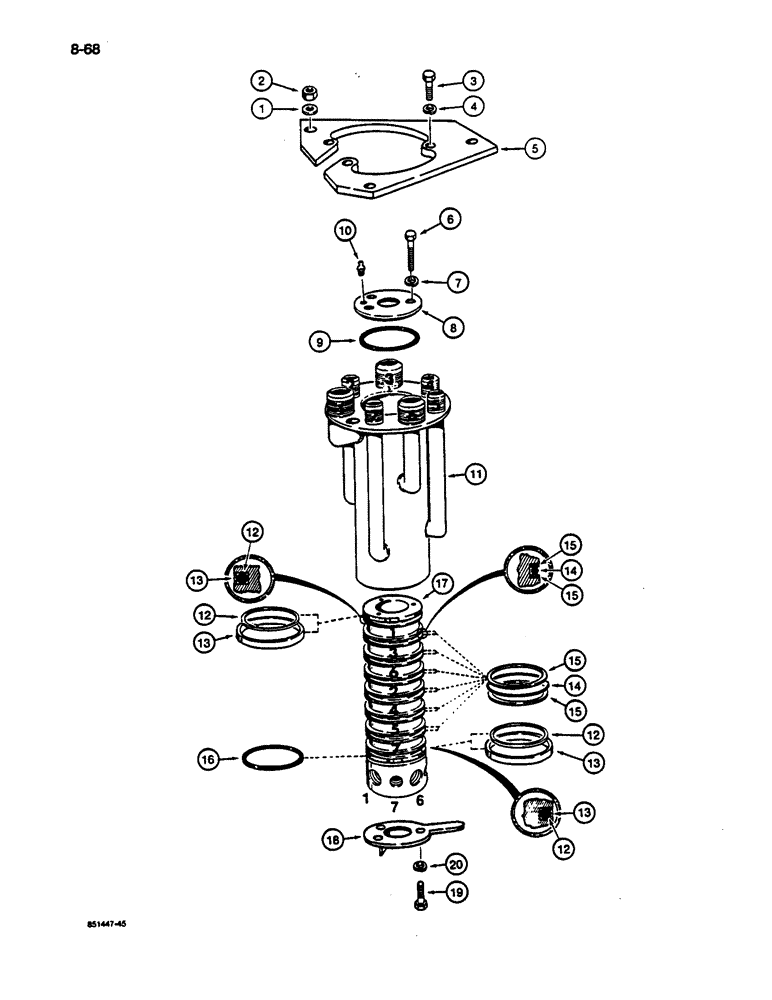

Запчасти Case 1187C (8-68) - SEVEN PORT SWIVEL AND RELATED PARTS (08) - HYDRAULICS

1

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3шт.

2

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

3шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

4

492-11038

LOCK WASHER,3/8"

3шт.

5

S204101

PLATE

- mounting, seven port swivel

1шт.

S618820

LINK

SWIVEL ASSEMBLY - hydraulic, seven port, Includes: Ref. 6 - 17

1шт.

6

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

7

492-11038

LOCK WASHER,3/8"

3шт.

8

S242702

CAP

- bearing

1шт.

9

S119791

SHIM

BEARING - cap

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

11

S618679

HOUSING

- swivel

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - swivel shaft, square section, included as part of Ref. 13

2шт.

13

S118683

SEAL

- two piece, includes Ref. 12

2шт.

14

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

Swivel shaft -242, 70 Duro, 3.984" ID x .139" Thk

6шт.

15

S76928

WASHER

RING - backup, shaft O-ring

12шт.

16

S76240

O-RING

- swivel shaft, bottom

1шт.

17

S618821

SHAFT

- swivel

1шт.

18

S242467

PLATE

- mounting, inner swivel

1шт.

19

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.
