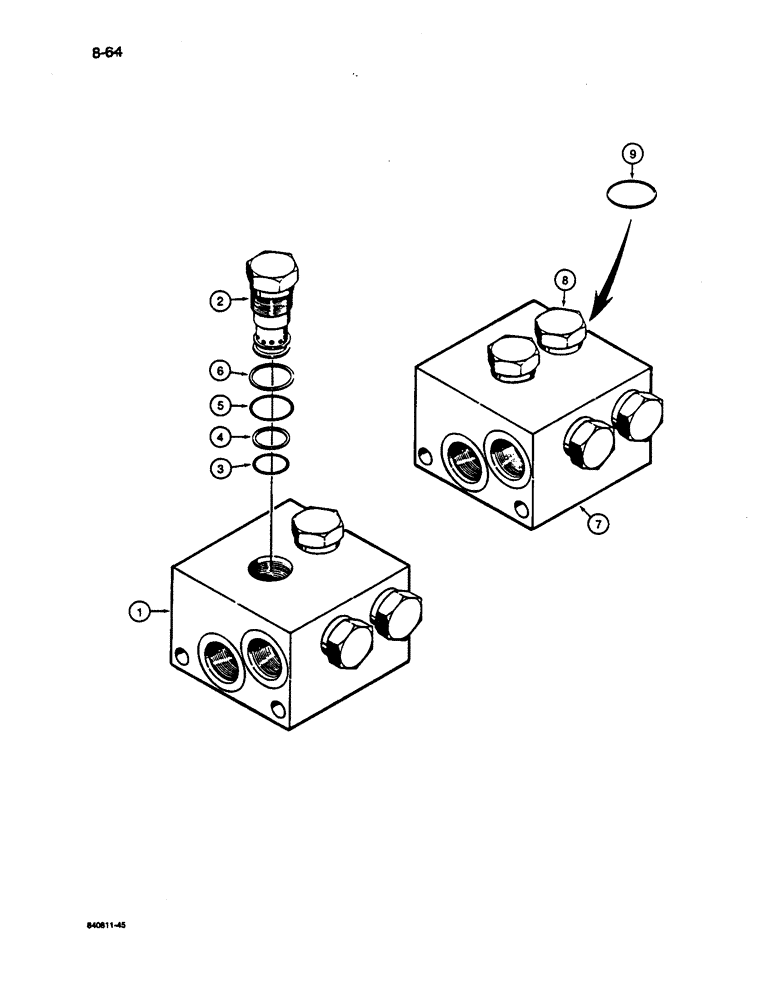

Запчасти Case 1187C (8-64) - MULTIPLE CHECK VALVE, USED ON MODELS WITH COLLECTOR (08) - HYDRAULICS

S607153

VALVE

ASSEMBLY - multiple check, Sun Hydraulic manufactured, Includes: Ref. 1 - 6

1шт.

Check the valve body for identification as to Sun Hydraulic or Fluid Controls manufactured. For mounting hardware see Fig. 8-36.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

S107625

CARTRIDGE

ASSEMBLY - check valve, Includes: Ref. 2 - 6

4шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve

1шт.

3

238-7117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 7, 75 Duro

- 13/16 ID x 3/32 inch wide

1шт.

4

A16860

RING

- backup, small O-ring

1шт.

5

N9096

O-RING,0.674" ID x 7" OD x 0.103" Width

- cartridge, large

1шт.

6

A42252

SEALING RING

RING - backup, large O-ring

1шт.

S607153

VALVE

ASSEMBLY - multiple check, Fluid Controls manufactured, Includes: Ref. 7 - 9

1шт.

Check the valve body for identification as to Sun Hydraulic or Fluid Controls manufactured. For mounting hardware see Fig. 8-36.

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG - check valve body

4шт.

9

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

Plug -214, 90 Duro, .984" ID x .139" Thk

4шт.
