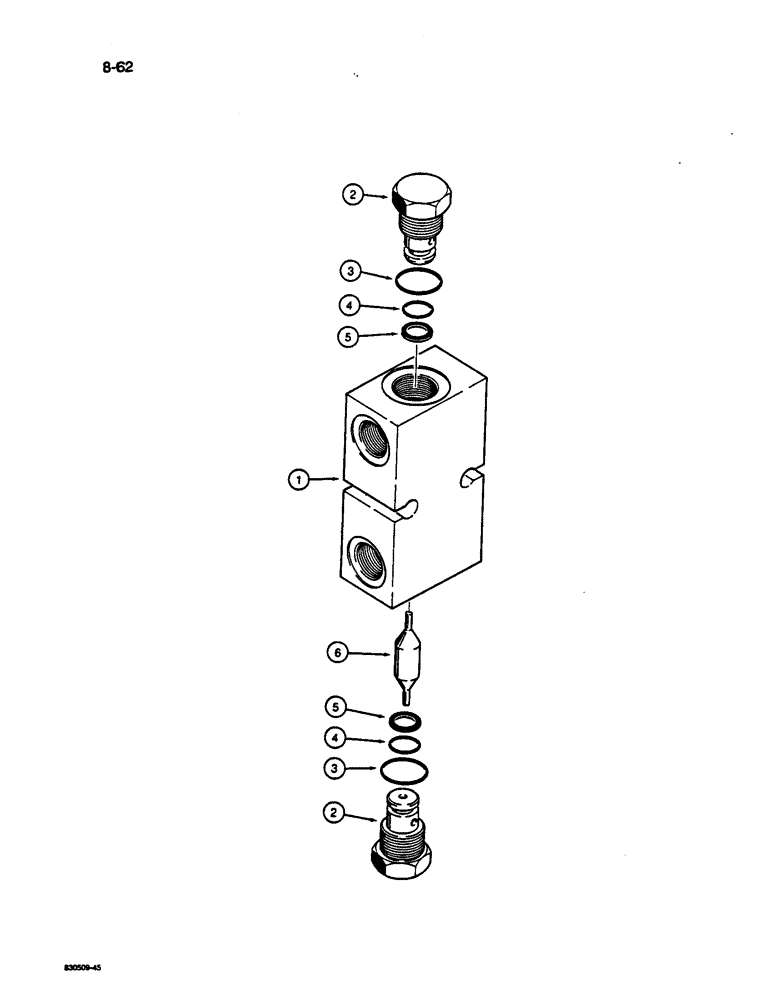

Запчасти Case 1187C (8-62) - LEVELER CHECK VALVE (08) - HYDRAULICS

S516733

VALVE, CHECK

VALVE ASSEMBLY - check, leveler circuit, for mounting hardware see Figure 8-16, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

N9766

CARTRIDGE

ASSEMBLY - check valve, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE - check valve

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

5

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, inner O-ring

1шт.

6

N8482

PLUNGER

- two-way, center

1шт.
