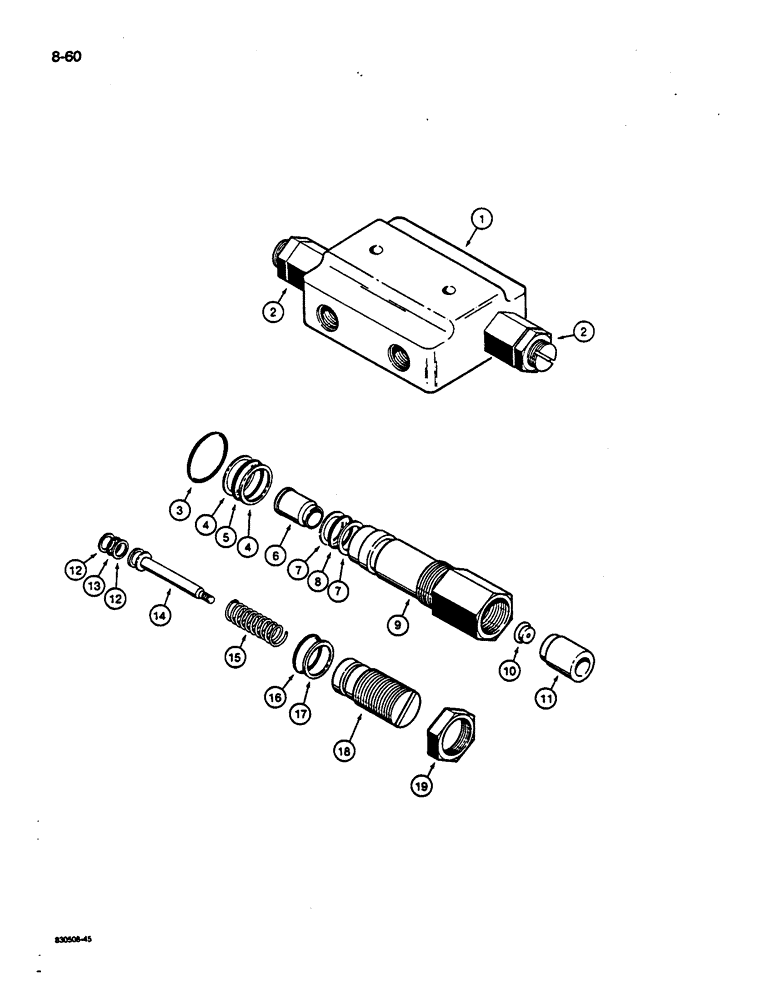

Запчасти Case 1187C (8-60) - SWING CROSSOVER RELIEF VALVE (08) - HYDRAULICS

S236820

VALVE

ASSEMBLY - relief, swing crossover, used for mounting hardware see Figure 8-18, Includes: Ref. 1 - 19, Serial Range: -JAK0022107

1шт.

S243574

VALVE

ASSEMBLY - relief, swing crossover, used for mounting hardware see Figure 8-18, Includes: Ref. 1 - 19, Start Serial: JAK0022107

1шт.

1

S114840

HOUSING

BODY - valve

1шт.

2

S73968

CARTRIDGE

ASSEMBLY - relief valve, used with S236820 valve assembly, Includes: Ref. 3 - 19

2шт.

2

107722A1

CARTRIDGE

ASSEMBLY - relief valve, used with S243574 valve assembly, Includes: Ref. 3 - 19

2шт.

3

D54806

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- cartridge body to relief valve body

1шт.

4

D24036

WASHER

RING - backup, outer body O-ring

2шт.

5

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Outer body seal -119, 90 Duro, .924" ID x .103" Thk

1шт.

S96095

KIT

- relief valve cartridge, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT - relief valve cartridge

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, poppet O-ring

2шт.

8

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Poppet seal -116, 70 Duro, .737" ID x .103" Thk

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - cartridge assembly

1шт.

10

R16123

WASHER, THRUST

PLATE - orifice, cartridge assembly

1шт.

11

R12510

SEAT

POPPET - floating

1шт.

12

S80306

BACK-UP RING

RING - backup, plunger O-ring

2шт.

13

H756627

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

- plunger seal

1шт.

14

S96093

PLUNGER

- displacement

1шт.

15

L33230

SPRING

- cartridge assembly, used with S236820 valve assembly

1шт.

15

3139460R1

SPRING

- cartridge assembly, used with S243574 valve assembly

1шт.

16

478543R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

O-RING - adjusting screw

1шт.

17

T38233

BACK-UP RING,0.891" ID x 1.127" OD x 0.05"

- backup, adjusting screw O-ring

1шт.

18

S96092

ADJUSTMENT SCREW

- adjusting, cartridge assembly

1шт.

19

R12507

LOCK NUT

- special, adjusting screw lock

1шт.
