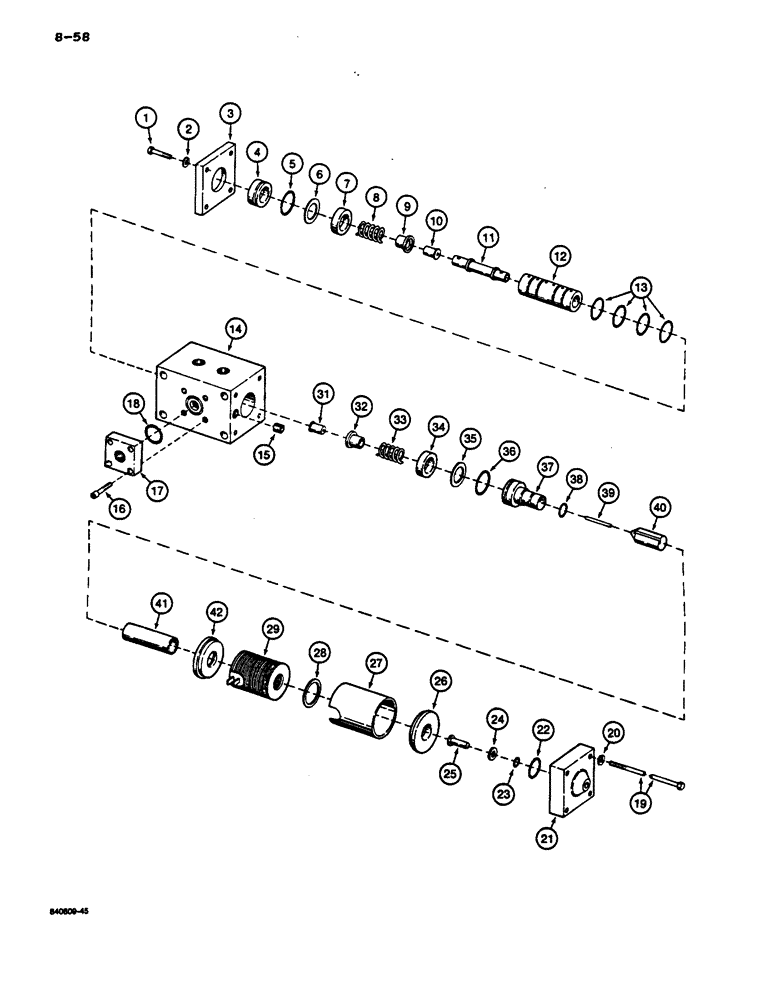

Запчасти Case 1187C (8-58) - SOLENOID VALVE, USED ON MODELS WITH COLLECTOR (08) - HYDRAULICS

S516409

VALVE

ASSEMBLY - solenoid, collector, 24 volt, for mounting hardware see Figure 8-36, Includes: Ref. 1 - 42

1шт.

1

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

2

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

S64604

PLATE

COVER - end, valve block

1шт.

4

S64716

STOP

- spool travel

1шт.

5

238-6124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

Spool stop -124, 90 Duro, 1.237" ID x .103" Thk

1шт.

6

S95751

WASHER

- special, spring

1шт.

7

S95750

SPACER

- spool spring

1шт.

8

S64670

SPRING

- spool return

1шт.

9

S95745

SUPPORT

SLEEVE - spring centering

1шт.

10

S95743

CAP

- spool end

1шт.

11

S64989

SPOOL

- solenoid valve

1шт.

12

S64991

SLEEVE

- spool

1шт.

13

238-6120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

- 1 ID x 3/32 inch wide, spool sleeve

4шт.

14

S64610

BLOCK - valve spool

1шт.

15

S65076

PLUG

- pipe, special

1шт.

16

165-144

BOLT,5/16" - 18 x 3/4"

- hex socket, 5/16 x 3/4 inch

4шт.

17

S64715

ADAPTER

- valve block port

1шт.

18

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- adapter

1шт.

19

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

4шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21

S64552

COVER

- end, solenoid coil

1шт.

22

238-6120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

- 1 ID x 3/32 inch wide, end cover

1шт.

23

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, End cover

1шт.

24

S64613

BUSHING

RETAINER - O-ring

1шт.

25

S64603

PIN

STOP - plunger

1шт.

26

S64551

CAP

- end, coil housing

1шт.

27

S64550

HOUSING

- solenoid coil

1шт.

28

S64609

WASHER

- spring, special

1шт.

29

S112701

COIL

- plunger, solenoid, 24 volt

1шт.

30

S111603

TERMINAL CONNECTOR

TERMINAL - coil, not shown

2шт.

S106709

TUBE

ASSEMBLY - plunger, Includes: Ref. 31 - 42

1шт.

31

S95743

CAP

- spool end

1шт.

32

S95745

SUPPORT

SLEEVE - spring centering

1шт.

33

S64670

SPRING

- spool return

1шт.

34

S95750

SPACER

- spool spring

1шт.

35

S95751

WASHER

- spring, special

1шт.

36

238-6124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

Plunger seat -124, 90 Duro, 1.237" ID x .103" Thk

1шт.

37

S64672

SEAT

- plunger

1шт.

38

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

Plunger seat, small -115, 90 Duro, .674" ID x .103" Thk

1шт.

39

S95742

ROD

PIN - plunger

1шт.

40

S64549

PLUNGER

- valve spool

1шт.

41

S64531

TUBE

- plunger

1шт.

42

S64671

RETAINER

- plunger seat

1шт.
