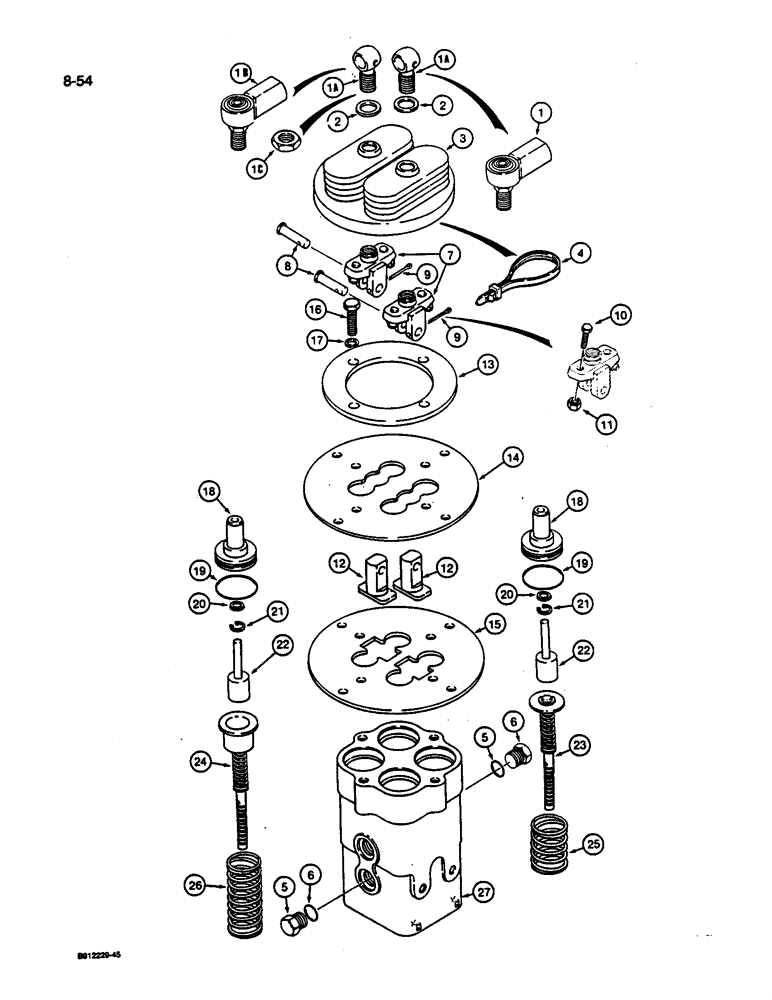

Запчасти Case 1187C (8-54) - HAND AND FOOT CONTROL VALVES (08) - HYDRAULICS

S517359

VALVE

ASSEMBLY - control, foot, for mounting hardware see Figure 9-2, Includes: Ref. 1 - 27

2шт.

S517357

VALVE

ASSEMBLY - control, hand, left-hand, for mounting hardware see Figure 9-4, Includes: Ref. 1 - 27

1шт.

S517358

VALVE

ASSEMBLY - control, hand, right-hand, for mounting hardware see Figure 9-4, Includes: Ref. 1 - 27

1шт.

1

N13670

END

- control rod, used on models with S517357 and S517358 control valves only

1шт.

1a

N13671

CLEVIS

END - control rod, used on models with S517359 control valve only

2шт.

1b

N14627

END

- control rod, used on models with S517357 and S517358 control valves only

1шт.

1c

425-158

JAM NUT,Jam, 1/2"-20, G5

Used on models with S517359 control valve only Jam, 1/2"-20, G5

2шт.

2

N13669

WASHER

- shim

2шт.

3

N13668

BOOT

- control mechanism

1шт.

4

N13667

STRAP

- tie, boot retaining

1шт.

5

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 6 Hex Hd, 9/16"-18 ORB

2шт.

N13672

PIVOT

ROCKER ASSEMBLY - control valve, Includes: Ref. 7 - 15

1шт.

7

N13680

PIVOT

- control valve

2шт.

8

N13678

PIN

- rocker

2шт.

9

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

10

N13679

BOLT

BUTTON - rocker

4шт.

11

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

4шт.

12

N13681

POST

- rocker pivot

2шт.

13

NSS

NOT SOLD SEPARAT

PLATE - boot

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - top

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - bottom

1шт.

16

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

18

N14760

GUIDE

- plunger

4шт.

19

238-5023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

-023, 70 Duro, 1.051" ID x .070" Thk, Guide

4шт.

20

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

- wiper

4шт.

21

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, , plunger 0.50", Int, #50

4шт.

22

N13694

LARGE PIN

PLUNGER - spool

4шт.

23

N14761

SPOOL

ASSEMBLY - in port XA of S517357 control valve, port YB of S517358 control valve, or all of S517359 control valve, components not service separately

1-4шт.

Part numbers are stamped on the end of valve body.

1шт.

24

N14762

SPOOL

ASSEMBLY - in three ports of S517357 or S517358 control valves only, see N14761 above for exception port for each valve, components not service separately

3шт.

Part numbers are stamped on the end of valve body.

1шт.

25

N13674

SPRING

- outer, used with Ref. 23 only

1-4шт.

26

N13677

SPRING

- outer, used with Ref. 24 only, if used

3шт.

27

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
