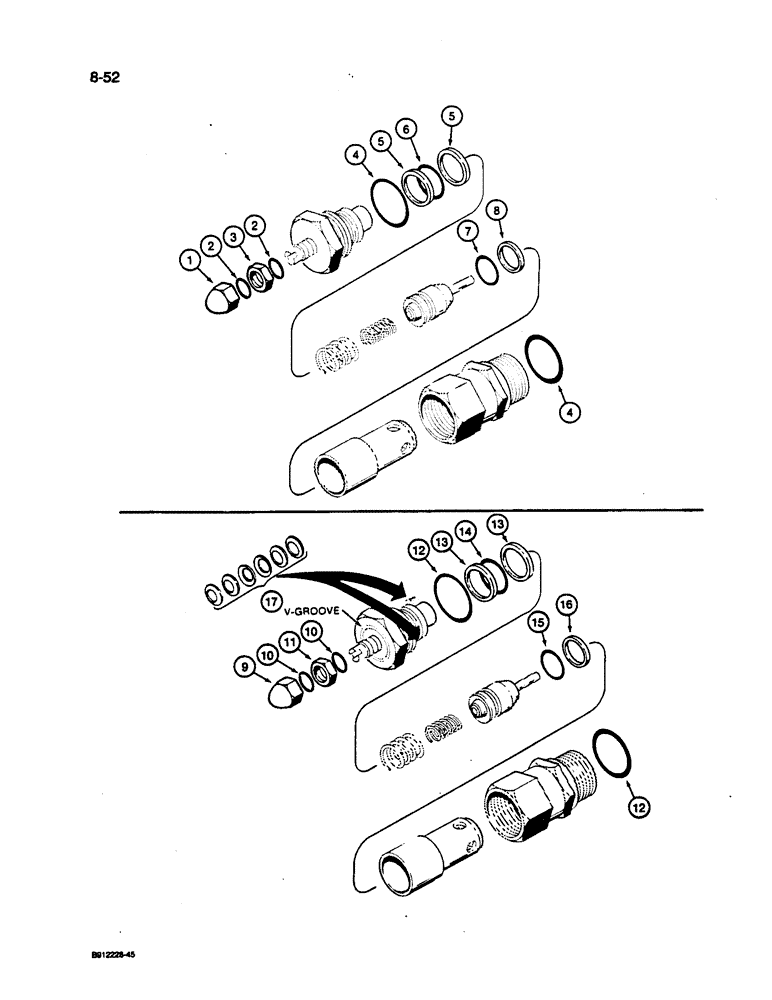

Запчасти Case 1187C (8-52) - CIRCUIT RELIEF VALVES (08) - HYDRAULICS

S616867

VALVE

ASSEMBLY - circuit relief, cartridge assembly, complete, set at 3000 psi, see note below, Includes: Ref. 1 - 8

1шт.

S616868

VALVE

ASSEMBLY - circuit relief, cartridge assembly, complete, set at 2500 psi, see note below, Includes: Ref. 1 - 8

1шт.

1

S116073

CAP

NUT - dome, adjusting screw

1шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk, Outer

2шт.

Special R series circuit relief valves can be identified by the tag on the valve or the circle V-groove machined into the outer face of the plug. The pressure setting of this circuit relief valve is not preset for some of these applications. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

Part of seal , circuit relief valve, kit P/N N9092 and all three internal springs

1шт.

3

S116072

JAM NUT

- hex, jam, adjusting screw

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 1/8 inch, plug to cartridge and cartridge to valve body

2шт.

Special R series circuit relief valves can be identified by the tag on the valve or the circle V-groove machined into the outer face of the plug. The pressure setting of this circuit relief valve is not preset for some of these applications. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

Part of seal , circuit relief valve, kit P/N N9092 and all three internal springs

1шт.

5

S84155

BACK-UP RING,76mm ID x 0.45mm Width

- backup, inner plug O-ring

2шт.

Special R series circuit relief valves can be identified by the tag on the valve or the circle V-groove machined into the outer face of the plug. The pressure setting of this circuit relief valve is not preset for some of these applications. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

Part of seal , circuit relief valve, kit P/N N9092 and all three internal springs

1шт.

6

876067C1

O-RING,0.734" ID x 1.012" OD x 0.139"

- inner plug

1шт.

Special R series circuit relief valves can be identified by the tag on the valve or the circle V-groove machined into the outer face of the plug. The pressure setting of this circuit relief valve is not preset for some of these applications. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

Part of seal , circuit relief valve, kit P/N N9092 and all three internal springs

1шт.

7

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- poppet

1шт.

Special R series circuit relief valves can be identified by the tag on the valve or the circle V-groove machined into the outer face of the plug. The pressure setting of this circuit relief valve is not preset for some of these applications. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

Part of seal , circuit relief valve, kit P/N N9092 and all three internal springs

1шт.

8

S84098

BACK-UP RING,1/2" ID x 11/16" OD

- backup, poppet O-ring

1шт.

Special R series circuit relief valves can be identified by the tag on the valve or the circle V-groove machined into the outer face of the plug. The pressure setting of this circuit relief valve is not preset for some of these applications. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

Part of seal , circuit relief valve, kit P/N N9092 and all three internal springs

1шт.

N9092

KIT

- seal, circuit relief valve, Includes Refs. 2, 4, 5, 6, 7 and 8 and all three internal springs

1шт.

Special R series circuit relief valves can be identified by the tag on the valve or the circle V-groove machined into the outer face of the plug. The pressure setting of this circuit relief valve is not preset for some of these applications. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

S616862

VALVE

ASSEMBLY - circuit relief, cartridge assembly, Special R series complete, set at 3000 psi, see note below, Includes: Ref. 9 - 17

1шт.

S616863

VALVE

ASSEMBLY - circuit relief, cartridge assembly, Special R series complete, set at 2500 psi, see note below, Includes: Ref. 9 - 17

1шт.

9

S116073

CAP

NUT - dome, adjusting screw, special R series circuit relief valves

1шт.

10

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk, Outer, Special R series circuit relief valves

2шт.

11

S116072

JAM NUT

- hex, jam, adjusting screw, special R series circuit relief valves

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 1/8 inch wide, plug to cartridge and cartridge to valve body, special R series circuit relief valves

2шт.

13

S84155

BACK-UP RING,76mm ID x 0.45mm Width

- backup, inner plug O-ring, special R series circuit relief valves

2шт.

14

876067C1

O-RING,0.734" ID x 1.012" OD x 0.139"

- inner plug, special R series circuit relief valves

1шт.

15

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- poppet, special R series circuit relief valves

1шт.

16

S84098

BACK-UP RING,1/2" ID x 11/16" OD

- backup, poppet O-ring, special R series circuit relief valves

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - spring, special R series circuit relief valves

6шт.
