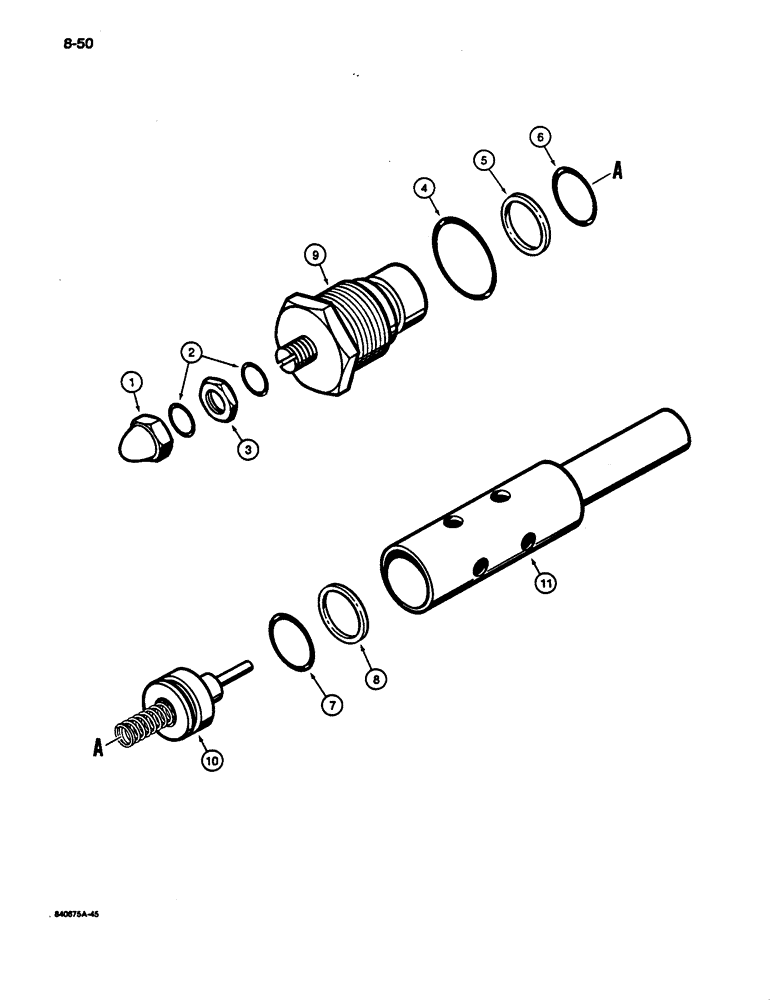

Запчасти Case 1187C (8-50) - MAIN RELIEF VALVE, USED WITH ONE SPOOL CONTROL VALVE (08) - HYDRAULICS

S62112

CARTRIDGE

VALVE ASSEMBLY - main relief, one spool control valve, Includes: Ref. 1 - 11

1шт.

1

S116073

CAP

NUT - dome, relief valve

1шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

2шт.

3

S116072

JAM NUT

- hex, jam, adjusting screw

1шт.

4

N8556

O-RING,1" ID x 1-1/4" OD x 1/8"

- cartridge, outer

1шт.

5

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

- backup, inner cartridge O-ring

1шт.

6

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

Cartridge, inner -113, Cl 7, .549" ID x .103" Thk

1шт.

7

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- poppet

1шт.

8

S84098

BACK-UP RING,1/2" ID x 11/16" OD

- backup, poppet O-ring

1шт.

9

NSS

NOT SOLD SEPARAT

ADAPTER ASSEMBLY - valve, internal components are not serviced separately

1шт.

10

NSS

NOT SOLD SEPARAT

POPPET ASSEMBLY - valve, internal components are not serviced separately

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.
