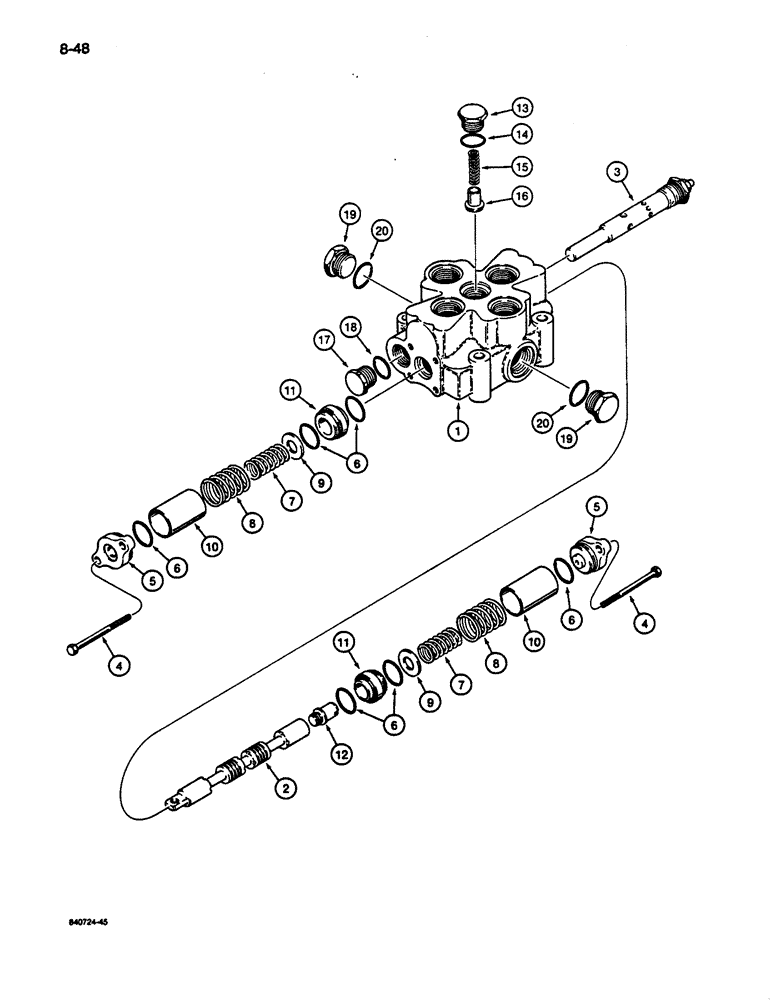

Запчасти Case 1187C (8-48) - ONE SPOOL CONTROL VALVE, USED WITH TURNTABLE LEVELER CIRCUIT (08) - HYDRAULICS

S516450

VALVE

ASSEMBLY - control, one spool, leveler circuit, for mounting hardware see Figure 8-16, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

S215229

PLUNGER

SPOOL - control valve

1шт.

3

S62112

CARTRIDGE

VALVE ASSEMBLY - main relief, control valve, set at 2500 psi, parts list Figure 8-50

1шт.

4

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

4шт.

5

N8722

VALVE

CAP - end, spool

2шт.

6

238-5220

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

End cap and sleeve -220, 70 Duro, 1.359" ID x .139" Thk

6шт.

7

N13042

SPRING

- spool, inner

2шт.

8

N13043

SPRING

- spool, outer

2шт.

9

N8727

SPACER

- spring

2шт.

10

N8724

TUBE,1.628" ID x 1.812" OD x 2.603" L

HOUSING - spool spring

2шт.

11

N8725

CAP

SLEEVE - spool

2шт.

12

N9091

END

PLUG - spool end

1шт.

13

S13714

PLUG

- load check

1шт.

14

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

Check plug -214, 70 Duro, .984" ID x .139" Thk

1шт.

15

S13715

SPRING

- load check

1шт.

16

S13716

VALVE POPPET

POPPET - load check

1шт.

17

S13707

PLUG

- relief valve port

1шт.

18

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

Relief plug port -214, 70 Duro, .984" ID x .139" Thk

1шт.

19

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 20 Hex Hd, 1 5/16"-12 ORB

2шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.
