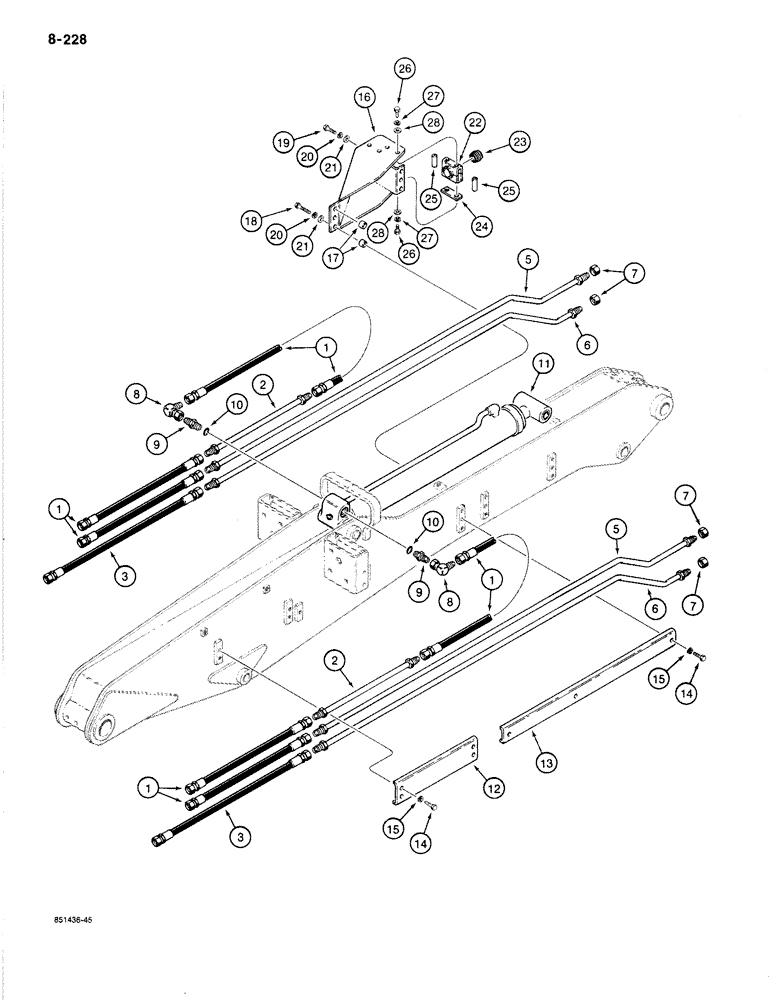

Запчасти Case 1187B (8-228) - TOOL CYLINDER AND ROTARY CUTTER HYDRAULIC CIRCUITS, TUBES AT ARM (08) - HYDRAULICS

1

S8628

HOSE

- 36" (914 mm) long, to tool cylinder and upper attachment tubes

6шт.

2

S242918

TUBE ASSY.,1.25" OD x 34" L

TUBE - to tool cylinder

2шт.

3

S235936

HOSE

- 49" (1245 mm) long, to lower attachment tubes

2шт.

5

S242619

TUBE ASSY.,1.25" OD x 112.3, 5.7" L

TUBE - to attachment, upper

2шт.

6

S242620

TUBE ASSY.,1.25" OD x 110.1, 92" L

TUBE - to attachment, lower

2шт.

7

218-758

CAP,37 Degree, 1 5/16"-12

- tube, used when attachment is removed

4шт.

8

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- swivel, 90 degree

2шт.

9

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, male, Incl. Ref. 10

2шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Seal

1шт.

11

S956911

CYLINDER

ASSEMBLY - hydraulic, tool, parts list Figure 8-316

1шт.

12

S229657

CHANNEL

GUARD - tube, short

2шт.

13

S229656

CHANNEL

GUARD - tube, long

2шт.

14

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

14шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

14шт.

16

S510365

BRACKET

- mounting, tube clamp, front of arm

2шт.

17

S76849

SPACER

-, Serial Range: bracket-arm

4шт.

18

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

6шт.

19

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

21

195-530

WASHER,7/16"

- flat, 1/2"

12шт.

22

S106643

CLAMP

- tube, split type

4шт.

23

S106646

BUSHING

- split, rubber

4шт.

24

S108511

SPACER

-, Serial Range: clamp-bracket

4шт.

25

S106647

TUBE NUT

SPACER - threaded, at split tube clamp

8шт.

26

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

16шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

28

195-104

WASHER,3/8"

- flat, 3/8"

16шт.
