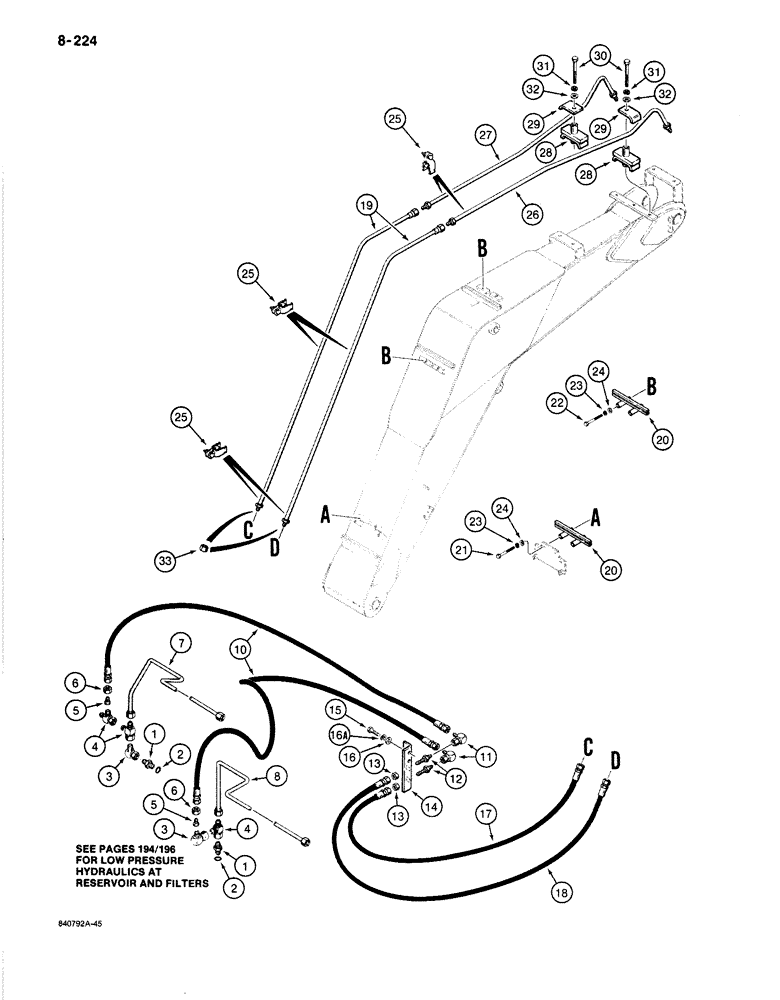

Запчасти Case 1187B (8-224) - ROTARY CUTTER HYDRAULIC CIRCUIT, TUBES AT BOOM (08) - HYDRAULICS

1

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Includes: Ref. 2

2шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

3

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

- 90 degree, swivel

2шт.

4

218-5224

TEE,37º, 1 5/8"-12 x 1 5/8"-12, Fem Sw Run

- swivel type

3шт.

5

218-788

REDUCER,37º, 1 1/4" x 1" Tube

- hydraulic fitting

2шт.

6

218-349

TUBE NUT,37 Degree, 1 5/8"-12, Type B

NUT - reducer fitting

2шт.

7

S617861

TUBE ASSY.

TUBE - hydraulic, low pressure, at outside valve

1шт.

8

S516405

TUBE ASSY.,1.5" OD

TUBE - hydraulic, low pressure, at inside valve

1шт.

10

S8626

HOSE ASSY.

HOSE - 60" (1524 mm) long, tube from, Serial Range: valves-bulkhead

2шт.

11

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- swivel, 90 degree

2шт.

12

218-678

FITTING,Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

ADAPTER - straight, bulkhead

2шт.

13

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

2шт.

14

S516444

BRACKET

- mounting, bulkhead adapter

1шт.

15

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

16

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened, plated

2шт.

16a

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

S8628

HOSE

- 36" (914 mm) long, bulkhead to tube at left side of boom

1шт.

18

S235936

HOSE

- 49" (1245 mm) long, bulkhead to tube at right side of boom

1шт.

19

S516702

TUBE ASSY.,1.25" OD x 48.1, 60.2" L

TUBE - to rotary cutter, rear of boom

2шт.

20

S229652

BRACKET

- tube clamp, rear and top of boom

3шт.

21

113-2429

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

- hex head, 1/2" - 13 NC x 5-3/4"

2шт.

22

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

4шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

24

195-530

WASHER,7/16"

- flat, 1/2"

6шт.

25

S93266

CLAMP

- tubes at boom

6шт.

26

S516700

TUBE ASSY.,1.25" OD x 81.8, 6.85" L

TUBE - to rotary cutter, top, right-hand side

1шт.

27

S516701

TUBE ASSY.,1.25" OD x 81.8, 6.85" L

TUBE - to rotary cutter, boom top, left-hand side

1шт.

28

S232081

CLAMP

- special, lower, boom

2шт.

29

S106387

CLAMP

- upper, Serial Range: tubes-boom

2шт.

30

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

31

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

32

195-530

WASHER,7/16"

- flat, 1/2"

2шт.

33

218-758

CAP,37 Degree, 1 5/16"-12

- hex, 1-5/16" - 12 NF

2шт.
