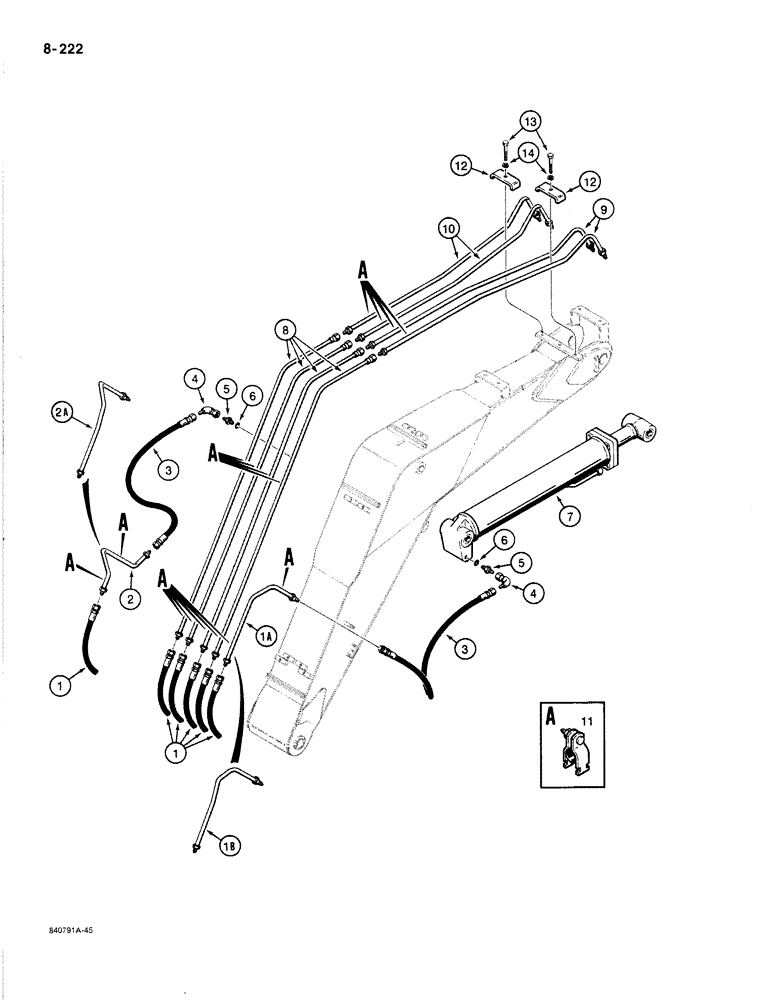

Запчасти Case 1187B (8-222) - ARM, TOOL, AND ATTACHMENT CYLINDER CIRCUIT, TUBES AT BOOM (08) - HYDRAULICS

1

S8628

HOSE

- 36" (914 mm) long, tubes at turntable to tubes at boom

6шт.

1a

S506420

TUBE ASSY.,1.25" OD

TUBE - to arm cylinder, right-hand side of boom, used on models prior to P.I.N., Serial Range: -JAK00327753

1шт.

1b

S517246

TUBE ASSY.,1.25" OD

TUBE - to arm cylinder, right-hand side of boom, used on models P.I.N. and after, Start Serial: JAK00327753

1шт.

2

S502409

TUBE ASSY.,1.25" OD

TUBE - to arm cylinder, left-hand side of boom, used on models prior to P.I.N., Serial Range: -JAK00327753

1шт.

2a

S517247

TUBE ASSY.,1.25" OD

TUBE - to arm cylinder, left-hand side of boom, used on models with P.I.N. and after, Start Serial: JAK00327753

1шт.

3

S8628

HOSE

- 36" (914 mm) long, tube to arm cylinder

2шт.

4

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- swivel, 90 degree

2шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, Incl. Ref. 6

2шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

7

S956911

CYLINDER

ASSEMBLY - hydraulic, arm, parts list Figure 8-316

1шт.

8

S516702

TUBE ASSY.,1.25" OD x 48.1, 60.2" L

TUBE - to tool and attachment cylinders, at rear of boom

4шт.

9

S516699

TUBE ASSY.,1.25" OD

TUBE - to tool and attachment cylinders, at top of boom, right-hand side

2шт.

10

S516698

TUBE ASSY.,1.25" OD

TUBE - to tool and attachment cylinders, at top of boom, left-hand side

2шт.

11

S93266

CLAMP

- tube, at welded brackets on rear, side and top boom

16шт.

12

S46397

CLAMP

- tube, at tapped block on front of boom, see Figure 8-224 for different clamps used with rotary cutter hydraulic tubes at boom

2шт.

13

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
