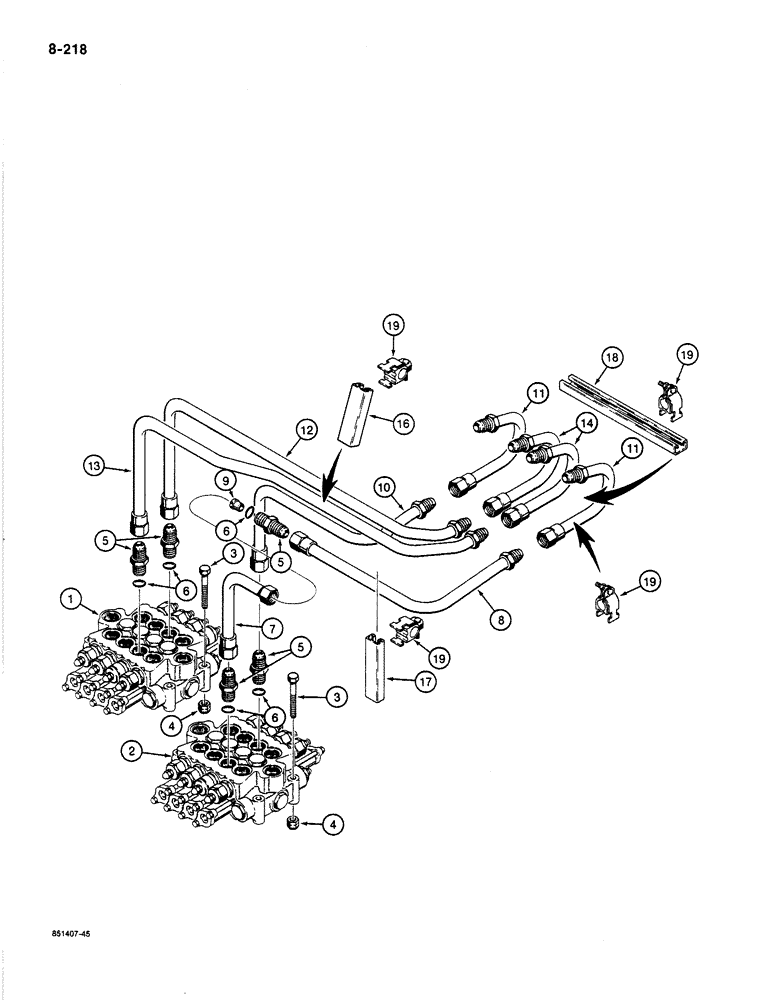

Запчасти Case 1187B (8-218) - ARM AND TOOL CYLINDER CIRCUITS, TUBES FROM CONTROL VALVES AT TURNTABLE (08) - HYDRAULICS

1

S516350

VALVE

ASSEMBLY - control, outside, parts list Figure 8-268

1шт.

2

S516349

VALVE

ASSEMBLY - control, inside, parts list Figure 8-266

1шт.

S120857 Kit to eliminate cavitation on the motor in the track drive circuit.

1шт.

3

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex head, 1/2" - 13 NC x 3-3/4", plated

6шт.

4

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

6шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, Incl. Ref. 6

5шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

7

S241152

TUBE ASSY.,1.25" OD x 9.7, 6.1" L

TUBE - valve to arm cylinder, closed end, at valve

1шт.

8

S515795

TUBE ASSY.,1.25" OD x 18.4" L

TUBE - valve to arm cylinder, closed end, at cylinder

1шт.

9

S79252

REGULATOR

RESTRICTOR - oil flow, arm cylinder

1шт.

10

S515796

TUBE ASSY.,1.25" OD

TUBE - valve to arm cylinder, rod end, at cylinder

1шт.

11

S240971

TUBE ASSY.,1.25" OD x 25, 5.9" L

TUBE - valve to arm cylinder, at tube clamp channel

2шт.

12

S515802

TUBE ASSY.,1.25" OD

TUBE - valve to tool cylinder, closed end

1шт.

13

S515897

TUBE ASSY.,1.25" OD x 13.8, 13.2" L

TUBE - valve to tool cylinder, rod end

1шт.

14

S240971

TUBE ASSY.,1.25" OD x 25, 5.9" L

TUBE - valve to tool cylinder, at tube clamp channel

2шт.

17

S98267

BRACKET

CHANNEL - tube clamp, weld on, 6" long

2шт.

18

S99409

CHANNEL

- tube clamp, weld on, 16" long

1шт.

19

S93266

CLAMP

- tube

20шт.
