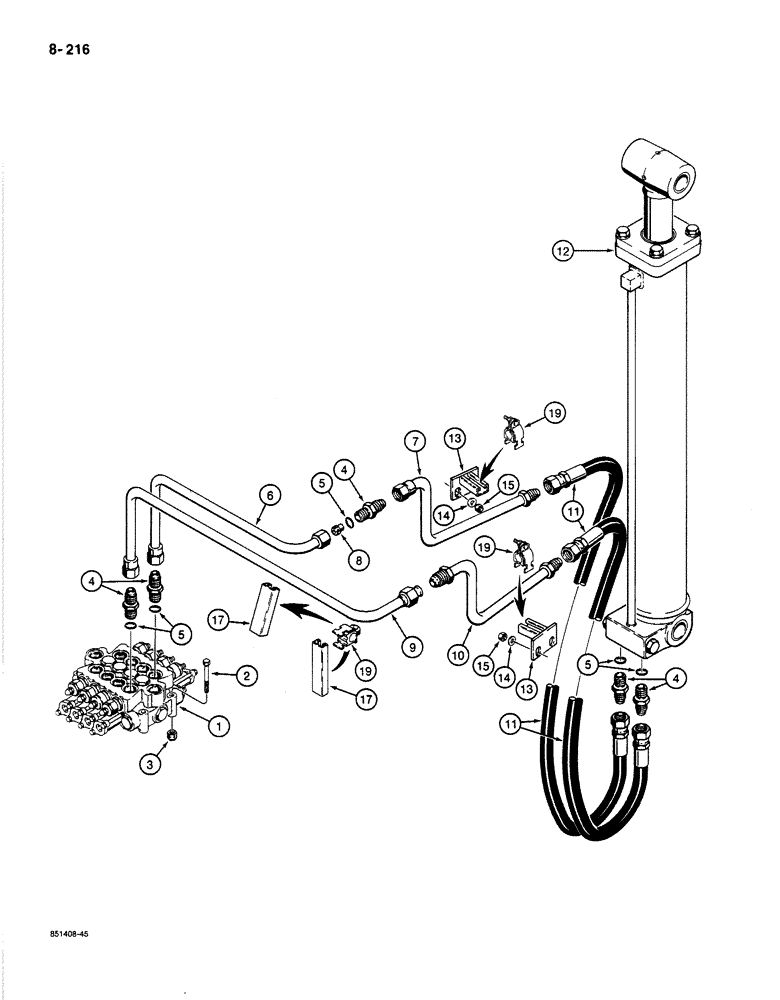

Запчасти Case 1187B (8-216) - BOOM CYLINDER CIRCUIT (08) - HYDRAULICS

1

S516350

VALVE

ASSEMBLY - control, outside, parts list Figure 8-268

1шт.

S120857 Kit to eliminate cavitation on the motor in the track drive circuit.

1шт.

2

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex head, 1/2" - 13 NC x 3-3/4", plated

3шт.

3

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

3шт.

4

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, Incl. Ref. 5

5шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

6

S515900

TUBE ASSY.,1.25" OD

TUBE - valve to boom cylinder, closed end, at valve

1шт.

7

S515895

TUBE ASSY.,1.25" OD x 20.8, 9.4" L

TUBE - valve to boom cylinder, closed end, at cylinder

1шт.

8

S79252

REGULATOR

RESTRICTOR - oil flow, boom cylinder

1шт.

9

S515798

TUBE ASSY.,1.25" OD

TUBE - valve to boom cylinder, rod end, at valve

1шт.

10

S515896

TUBE ASSY.,1.25" OD x 22.9, 9.4" L

TUBE - valve to boom cylinder, rod end, at cylinder

1шт.

11

S8628

HOSE

- 36" (914 mm) long, tube to boom cylinder

2шт.

12

S956915

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, boom, parts list Figure 8-314

1шт.

13

S242296

BRACKET

CHANNEL - tube clamp, Serial Range: bolted-turntable

2шт.

14

S95569

WASHER

- flat, hardened, 1/2"

4шт.

15

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

17

S98267

BRACKET

CHANNEL - tube clamp, weld on, 6" long

2шт.

19

S93266

CLAMP

- tube

4шт.
