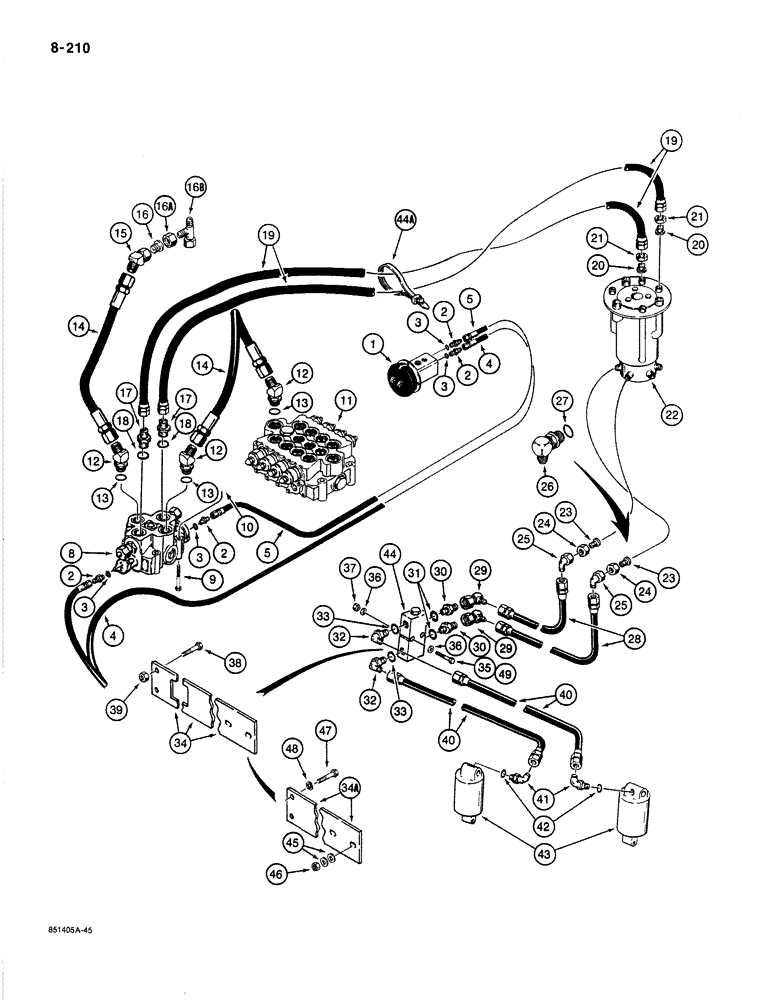

Запчасти Case 1187B (8-210) - HYDRAULIC LEVELER LINES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, right hand lever, see Figures 8-276 and 8-278 for correct valve and components

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, control valve ports, Incl. Ref. 3

4шт.

4

S241223

HOSE ASSY.

HOSE - 125" (3175 mm) long, to one spool control valve

1шт.

5

S241222

HOSE ASSY.

HOSE - 100" (2540 mm) long, to one spool control valve

1шт.

8

S516450

VALVE

ASSEMBLY - control, leveler, see Figure 8-270 for parts list

1шт.

9

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

3шт.

10

131-70

NUT,1/2"-13, GB

NUT - hex, 1/2" - 13 NC

3шт.

11

S516350

VALVE

ASSEMBLY - control, outside, parts list Figure 8-268

1шт.

12

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, 45 degree, Includes: Ref. 13

3шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

14

S8628

HOSE

- 36" (914 mm) long, outside control valve to leveler control valve and leveler control valve to return line

2шт.

15

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- swivel, 45 degree

1шт.

16

218-788

REDUCER,37º, 1 1/4" x 1" Tube

- hydraulic fitting

1шт.

16a

218-349

TUBE NUT,37 Degree, 1 5/8"-12, Type B

NUT - reducer fitting

1шт.

16b

218-5224

TEE,37º, 1 5/8"-12 x 1 5/8"-12, Fem Sw Run

- swivel, at low pressure tube

1шт.

17

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - valve ports, Includes: Ref. 18

2шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

19

S11231

HOSE ASSY.

HOSE - 68" (1727 mm) long, leveler control, Serial Range: valve-swivel

2шт.

20

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - hose to swivel

2шт.

21

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - adapter

2шт.

22

S618820

LINK

SWIVEL ASSEMBLY - parts list Figure 8-30

1шт.

23

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - swivel to elbow, if used, swivel with spuds

2шт.

24

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - adapter, if used, swivel with spuds

2шт.

25

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, if used, swivel with spuds

2шт.

26

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, if used, swivel without spuds, Includes: Refs. 27

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

28

S11226

HOSE

- 20" (508 mm) long, to check valve, used on models prior to P.I.N., Serial Range: -6275525

2шт.

28

S11227

HOSE

- 36" (914 mm) long, to check valve, used on models with P.I.N. and after, Start Serial: 6275525

2шт.

29

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel

2шт.

30

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight male, Incl. Ref 31

2шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

32

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, check valve ports, Includes: Ref. 33

2шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

34

S119046

BAR

BRACKET - check valve mounting, used on models prior to P.I.N., Serial Range: -6275525

1шт.

34a

S119989

BRACKET

- check valve mounting, used on models with P.I.N. and after, Start Serial: 6275525

1шт.

35

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex head, 1/4" - 20NC x 2-1/2", used with Ref. 34 bracket

2шт.

36

195-102

WASHER,1/4"

- flat, , used with Ref. 34 bracket 1/4"

4шт.

37

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, used with Ref. 34 bracket

2шт.

38

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Used with Ref. 34 bracket Hex, 3/8"-16 x 2", G5

2шт.

39

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16NC, used with Ref. 34 bracket

2шт.

40

S120549

HOSE ASSY.

HOSE - 24" (610 mm) long, to leveler cylinders

2шт.

41

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, at leveler cylinders, Includes: Ref. 42

2шт.

42

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

43

REF

INSTRUCTION

CYLINDER ASSEMBLY - leveler, parts list Figure 8-320 and 8-322

2шт.

44

S516733

VALVE, CHECK

VALVE ASSEMBLY - check, leveler, parts list Figure 8-292

1шт.

44a

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

45

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Used with Ref. 34A bracket M8 x 16 x 1.6

4шт.

46

S118772

NUT

- special, used with Ref. 34A bracket

2шт.

47

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex head, 8 mm x 1.25 x 25 mm, used with Ref. 34A bracket

2шт.

48

892-1008

LOCK WASHER,M8

WASHER - lock, 8 mm, used with Ref. 34A bracket

2шт.

49

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

Used with Ref. 34A bracket Hex, M8 x 60, 8.8

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.
