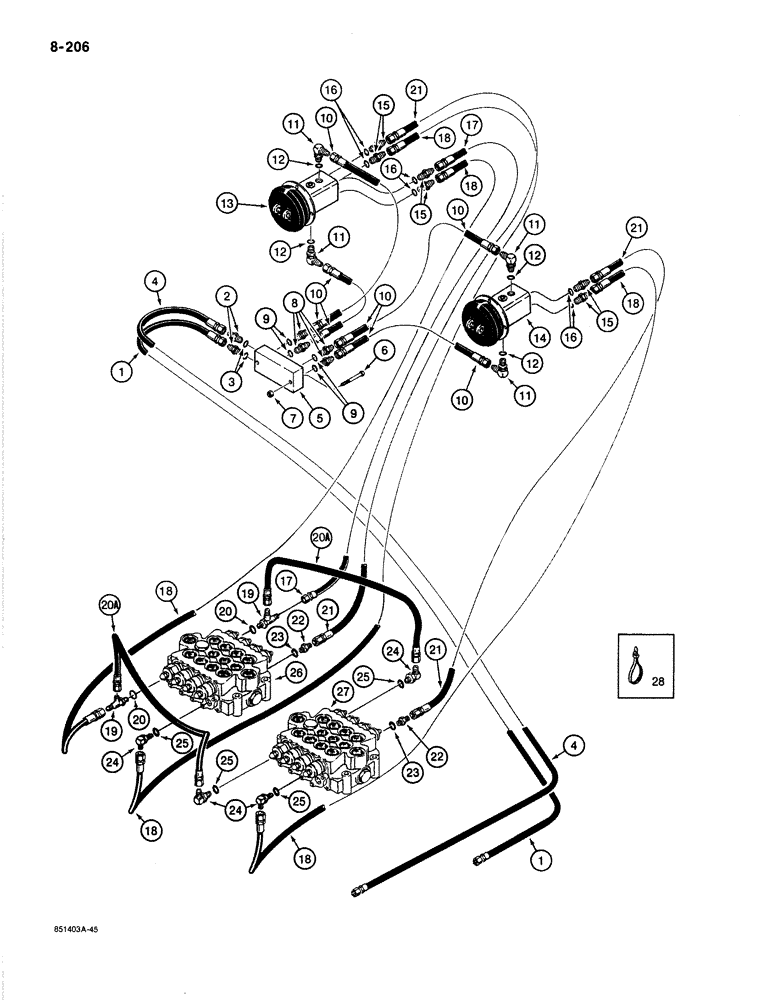

Запчасти Case 1187B (8-206) - HYDRAULIC CIRCUIT FOR CONTROLS, MANIFOLD AND HAND LEVER CONTROL VALVE LINES (08) - HYDRAULICS

1

S241220

HOSE ASSY.

HOSE - 70" (1778 mm) long, from solenoid control valve to manifold, see Figure 8-204, Ref. 17 for, Serial Range: connections-valve

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, manifold inlet and outlet, Incl. Ref. 3

2шт.

4

S241222

HOSE ASSY.

HOSE - 100" (2540 mm) long, manifold return, see Figure 8-205, Ref. 21 for, Serial Range: connections-valve

1шт.

5

S236862

BLOCK

MANIFOLD - control circuits

1шт.

6

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

7

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, manifold ports, Incl. Ref. 9

4шт.

10

S241217

HOSE ASSY.

HOSE - 21" (533 mm) long, to hand lever control valves

4шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, at hand lever control valves, Includes: Ref. 12

4шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - control, hand lever, left-hand, see Figures 8-276 and 8-278 for correct valve and components

1шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - control, hand lever, right-hand, see Figures 8-276 and 8-278 for correct valve and components

1шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, control valve ports, Incl. Ref. 16

6шт.

17

S241220

HOSE ASSY.

HOSE - 70" (1778 mm) long, to outside control valve

1шт.

18

S241222

HOSE ASSY.

HOSE - 100" (2540 mm) long, to outside and inside control valves

3шт.

19

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adjustable, Includes: Ref. 20 9/16"-18, 37º x 9/16"-18, O-Ring Run

2шт.

20a

S241217

HOSE ASSY.

HOSE - 21" (533 mm) long, crossover, inside to outside control valves

2шт.

21

S241221

HOSE ASSY.

HOSE - 80" (2032 mm) long, to inside and outside control valves

2шт.

22

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, outside and inside control valves, Incl. Ref. 23

2шт.

24

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, inside and outside control valves, Includes: Ref. 25

4шт.

26

S516350

VALVE

ASSEMBLY - control, outside, parts list Figure 8-268

1шт.

27

S516349

VALVE

ASSEMBLY - control, inside, parts list Figure 8-266

1шт.

S120857 Kit to eliminate cavitation on the motor in the track drive circuit.

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Tee

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.
