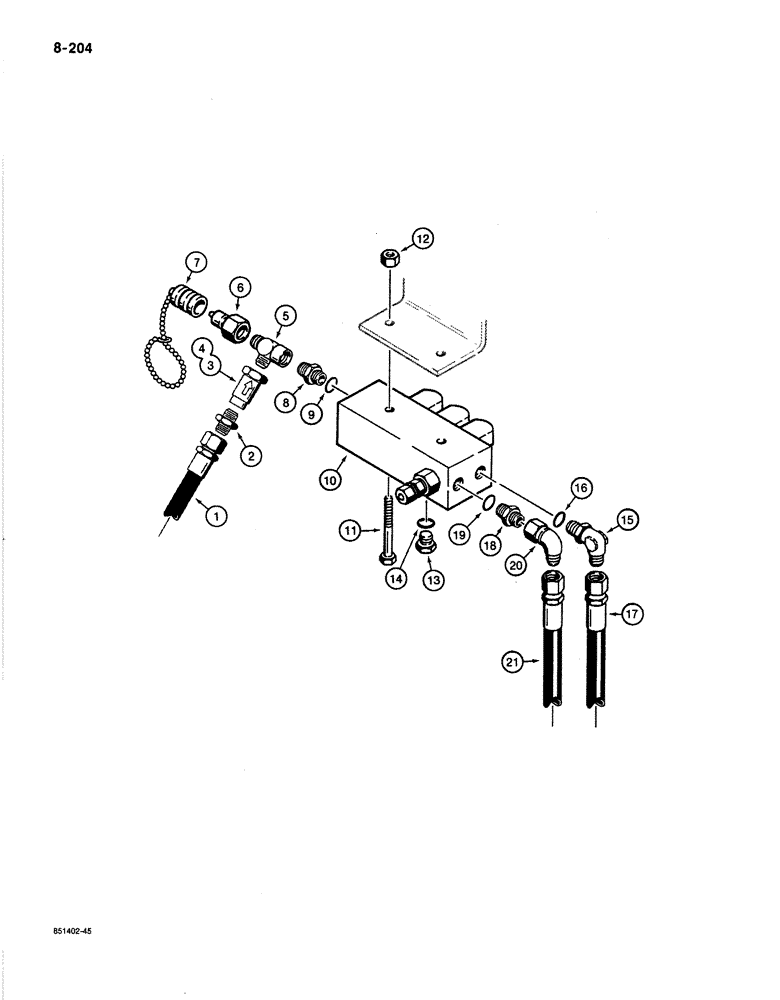

Запчасти Case 1187B (8-204) - HYDRAULIC CIRCUIT FOR CONTROLS, SOLENOID CONTROL VALVE CONNECTING LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
HOSE - from pump, see Figures 8-200 and 8-202 for hydraulic pump and lines
1шт.
2
HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF
ADAPTER - straight, hose to screen
1шт.
3
S242548
FILTER ASSY
FILTER - solenoid control valve, includes replaceable element
1шт.
4
N9426
ELEMENT
- filter screen, 25 micron
1шт.
5
217-1175
TEE,1/8"-27 Male x 1/8"-27 Female Run
- filter outlet
1шт.
6
S206607
DISC
COUPLER - quick disconnect, test
1шт.
7
S206608
CAP
- dust, with chain
1шт.
8
218-5443
FITTING
ADAPTER - straight, inlet port, Includes: Ref. 9
1шт.
10
S516951
VALVE
ASSEMBLY - control, solenoid, parts list Figure 8-280
1шт.
11
113-119
BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5
2шт.
12
231-1445
NUT,5/16"-18, GB
NUT - hex, self-locking, 5/16" - 18 NC, plated
2шт.
13
76349
PLUG,9/16" - 18 ORB
Bottom port, if used, Incl. Ref. 14 Hex Hd, 9/16"-18 ORB
1шт.
15
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
- 90 degree, manifold hose, Includes: Ref. 16
1шт.
17
S241220
HOSE ASSY.
HOSE - 70" (1778 mm), Serial Range: long,-manifold
1шт.
18
218-5360
HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring
ADAPTER - straight, return port, Includes: Ref. 19
1шт.
20
218-5232
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw
Return hose 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw
1шт.
21
S8581
HOSE ASSY.
HOSE - 48" (1219 mm) long, to return tube at reservoir
1шт.
9
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Adapter
1шт.
14
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Plug
1шт.
16
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Elbow
1шт.
19
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Adapter
1шт.
Выбрано товаров: 21
