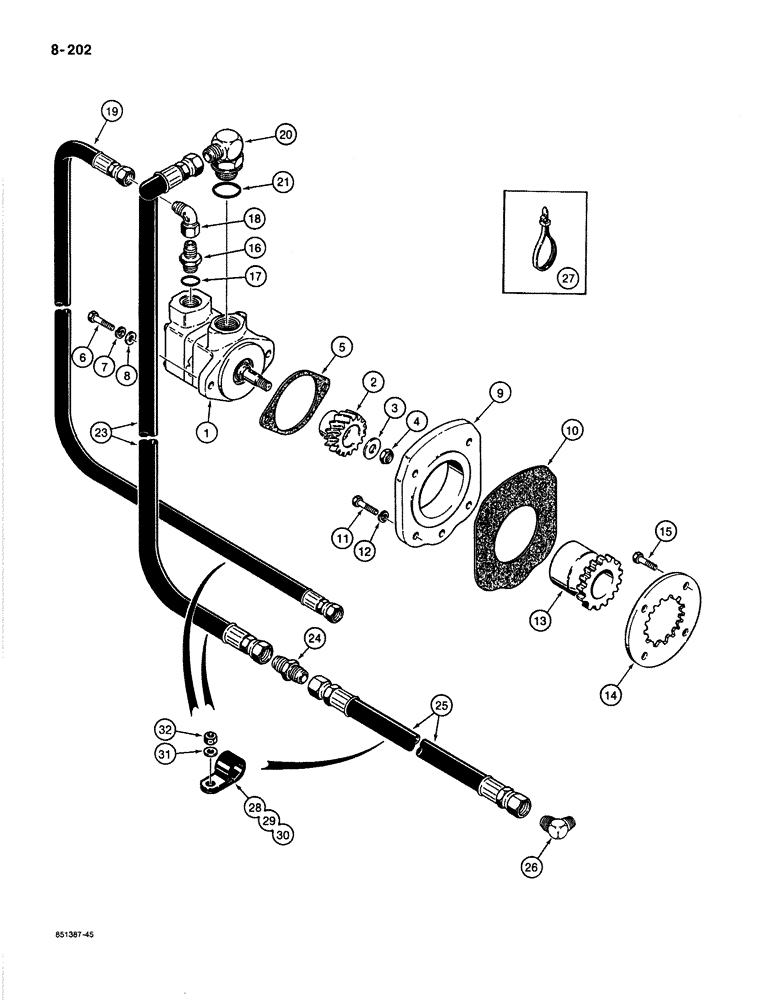

Запчасти Case 1187B (8-202) - HYDRAULIC CIRCUIT FOR CONTROLS, HYDRAULIC PUMP AND LINES, USED ON MODELS WITH DETROIT DIESEL ENGINE (08) - HYDRAULICS

1

S516451

PUMP

ASSEMBLY - hydraulic, parts list Figure 8-260

1шт.

2

S108809

SPROCKET ASSY.

GEAR - pump drive shaft

1шт.

3

195-530

WASHER,7/16"

- flat, 1/2"

1шт.

4

131-58

LOCK NUT,1/2"-20, G5

NUT - hex, self-locking, 1/2" - 20 NF, special

1шт.

Replaced by 25-138 Castle Nut, and 132-320 Cotter Pin

1шт.

5

S108814

GASKET

-, Serial Range: pump-adapter

1шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened

2шт.

9

REF

INSTRUCTION

ADAPTER - pump to engine, not available from Case, purchase from Detroit Diesel dealer, their part No. 5122386

1шт.

10

S108813

GASKET

-, Serial Range: adapter-engine

1шт.

11

REF

INSTRUCTION

BOLT - hex head, supplied with engine

4шт.

12

REF

INSTRUCTION

WASHER - lock, supplied with engine

4шт.

13

S108810

COUPLING

-, Serial Range: sprocket-disc

1шт.

14

S86382

GEAR

DISC - engine crankshaft gear

1шт.

15

S108817

BOLT

- special, disc to engine camshaft gear

4шт.

16

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, pump outlet port, Includes: Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

18

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel

1шт.

19

S241220

HOSE ASSY.

HOSE - 70" (1778 mm) long, to solenoid control valve, see Figure 8-204 for connecting parts at valve

1шт.

20

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

pump inlet port, Incl. Ref 21 90º, 7/8"-14, 37º x 1 5/16"-12, O-Ring

1шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

23

S8582

HOSE ASSY.

HOSE - 60" (1524 mm) long, from cooler line, upper

1шт.

24

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, hose to hose

1шт.

25

S8582

HOSE ASSY.

HOSE - 60" (1524 mm) long, from cooler line, lower

1шт.

26

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degree, cooler line to hose, see Figure 8-194 for hydraulic oil cooler circuit

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

28

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose, 3/4" ID

2шт.

29

R14668

CLAMP

- hose, 1" ID, lower

2шт.

30

S88820

CLAMP

- hose, 1" ID, upper

2шт.

31

195-104

WASHER,3/8"

- flat, 3/8"

4шт.

32

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.
