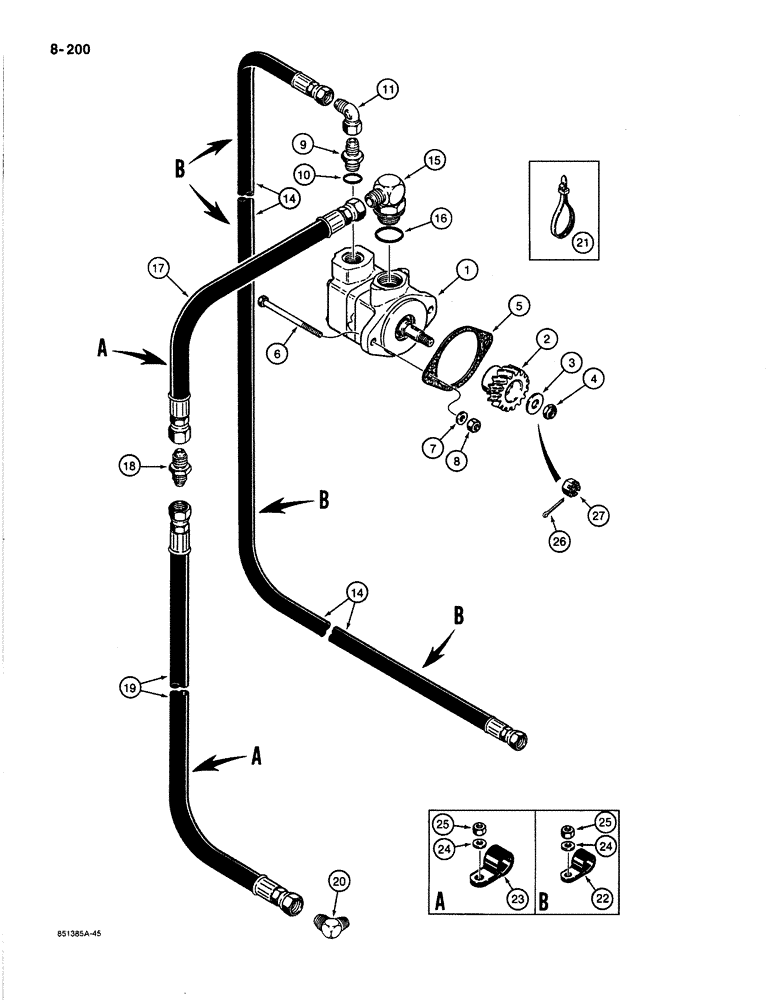

Запчасти Case 1187B (8-200) - HYDRAULIC CIRCUIT FOR CONTROLS, HYDRAULIC PUMP AND LINES, USED ON MODELS WITH CASE ENGINE (08) - HYDRAULICS

1

S516451

PUMP

ASSEMBLY - hydraulic, parts list Figure 8-260

1шт.

2

L43703

GEAR

- pump drive shaft

1шт.

3

195-530

WASHER,7/16"

- flat, 1/2", no longer used, order Ref. 26 cotter pin and Ref. 27 nut

1шт.

4

131-58

LOCK NUT,1/2"-20, G5

NUT - hex, self-locking, 1/2" - 20 NF, special, no longer used, order Ref. 26 cotter pin and Ref. 27 nut

1шт.

Replaced by 25-138 Castle Nut, and 132-320 Cotter Pin

1шт.

5

S108814

GASKET

-, Serial Range: pump-engine

1шт.

6

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

7

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened

2шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

9

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, pump outlet port, Includes: Ref. 10

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

11

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel

1шт.

14

S241223

HOSE ASSY.

HOSE - 125" (3175 mm) long, to solenoid control valve, see Figure 8-204 for connecting parts at valve

1шт.

15

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

adjustable, at pump inlet port, Incl. Ref 16 90º, 7/8"-14, 37º x 1 5/16"-12, O-Ring

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

17

S8578

HOSE

- 26" (660 mm) long, from cooler line, at pump

1шт.

18

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

ADAPTER - straight

1шт.

19

S8582

HOSE ASSY.

HOSE - 60" (1524 mm) long, from cooler line, at oil cooler

1шт.

20

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- hose, 3/4" ID

4шт.

23

R14668

CLAMP

- hose, 1" ID

2шт.

24

195-104

WASHER,3/8"

- flat, , if used 3/8"

4шт.

25

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, at mounting studs

4шт.

26

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

27

25-138

SLOTTED NUT,1/2"-20, G5

NUT - hex, slotted, 1/2" - 20 NF

1шт.
