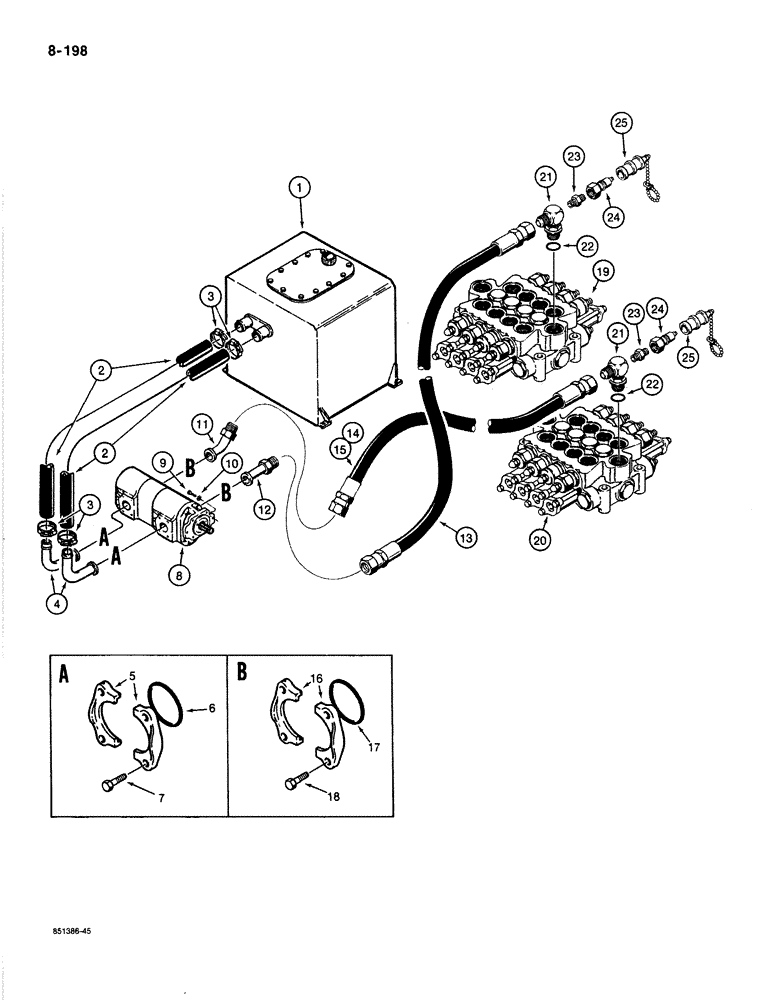

Запчасти Case 1187B (8-198) - MAIN HYDRAULIC PUMP LINES (08) - HYDRAULICS

1

S618054

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, see Figure 8-192 for related parts

1шт.

2

REF

INSTRUCTION

HOSE - 2" (51 mm) ID x 37" (940 mm) long, reservoir to pump, cut from S120587 bulk hose, see below, used on models with Detroit Diesel engine

2шт.

2

S120585

HYDRAULIC HOSE,2.00" ID x 32.00"

- Reservoir to pump, Cut from S120587 bulk hose, See below, Used on models with Case engine 2.00" ID x 32.00"

2шт.

3

214-353

CLAMP,#46, 2.62"-2.31", T-Bolt

- hose

4шт.

4

S238798

TUBE,2" OD x 6.8, 4.7" L

- to pump

2шт.

5

A14141

FLANGE

- split, tube

4шт.

6

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- tube

2шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- hex head, 7/16" - 14 NC x 1-1/2"

8шт.

8

REF

INSTRUCTION

PUMP ASSEMBLY - main hydraulic, see Figures 8-254 - 8-258 for correct pump and components parts

1шт.

9

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

10

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 5/8", hardened

2шт.

11

S235919

ADAPTER

TUBE - from rear pump port, 45 degree, used on models with Detroit Diesel engine

1шт.

11

S234439

ELBOW

TUBE - from rear pump port, 90 degree, used on models with Case engine, not shown

1шт.

12

S26936

TUBE

- from front pump port

1шт.

13

S8628

HOSE

- 36" (914 mm) long, to outside control valve

1шт.

14

S120471

HOSE ASSY.

HOSE - 42" (1067 mm) long, to inside control valve, used on models with Detroit Diesel engine

1шт.

15

S235936

HOSE

- 49" (1245 mm) long, to inside control valve, used on models with Case engine

1шт.

16

A12301

CLAMP,Half

- split, tube

4шт.

17

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- tube

2шт.

18

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

8шт.

19

S516350

VALVE

ASSEMBLY - control, outside, parts list Figure 8-268

1шт.

20

S516349

VALVE

ASSEMBLY - control, inside, parts list Figure 8-266

1шт.

S120857 Kit to eliminate cavitation on the motor in the track drive circuit.

1шт.

21

S113093

ELBOW

- adjustable, 90 degree, special, Includes: Ref. 22

2шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

23

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE) 1/4"-18 NPTF

2шт.

24

S206607

DISC

ONNECT - male

2шт.

25

S206608

CAP

- dust, disconnect

2шт.

S120587

HYDRAULIC HOSE,2.00" ID x 60.00"

- Bulk roll, Use for Refs. 2 (REF) and 2 (S120585) 2.00" ID x 60.00"

1шт.
