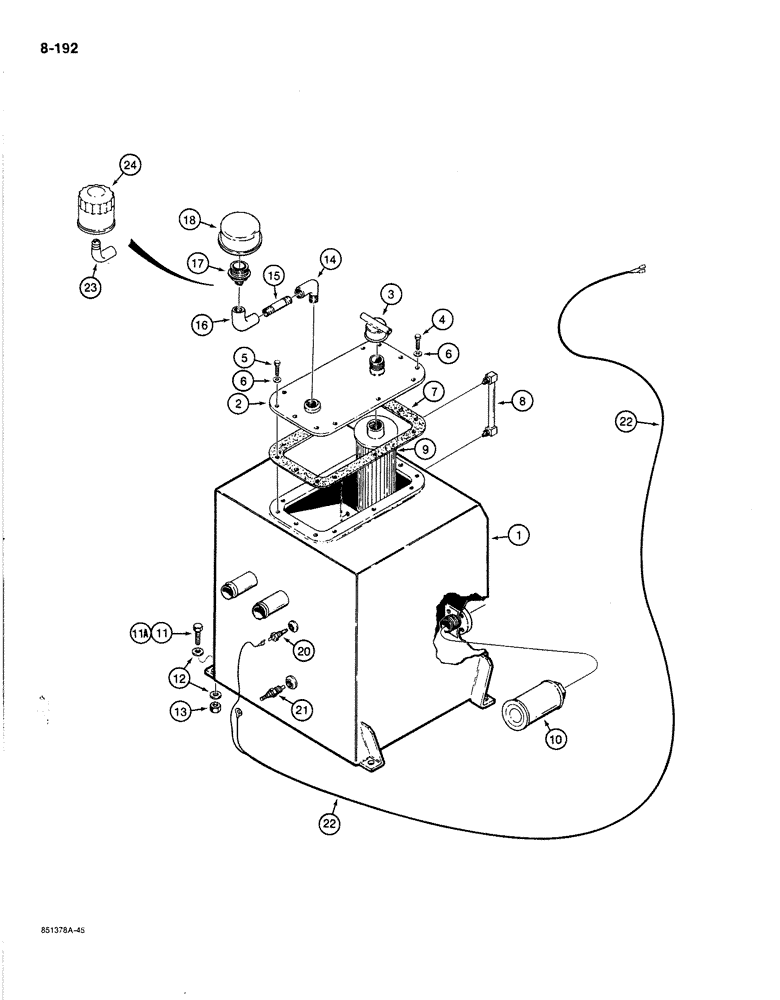

Запчасти Case 1187B (8-192) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

S618054

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic, excavator, Includes: Refs. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic, excavator

1шт.

2

S236359

COVER

- reservoir

1шт.

3

S230688

CAP

- fill

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

6

195-103

WASHER,5/16"

- flat, 3/8"

12шт.

7

S230621

GASKET

- cover

1шт.

8

S107269

GAUGE

- oil level

1шт.

9

S514984

FILTER, ENGINE OIL

SCREEN - oil fill

1шт.

10

S117479

FILTER CARTRIDGE

DIFFUSER - return ports

2шт.

11

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex head, 3/8" - 16 NC x 1-3/4", grade 8

1шт.

11a

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex head, 3/8" - 16 NC x 1-1/2", grade 8

3шт.

12

195-104

WASHER,3/8"

- flat, 7/16", used as shims

1шт.

13

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

14

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

- street, 90 degree, 3/4" NPT

1шт.

15

221-1921

PIPE,Nipple, 3/4" NPT x 2", X-Strng

NIPPLE - 3/4" NPT x 2"

1шт.

16

217-1055

ELBOW,3/4" - 14 NPTF Female

- 90 degree, female, 3/4" NPT, no longer required, order Refs. 23 and 24 for service

1шт.

17

S115101

ADAPTER

- breather, no longer required, order Refs. 23 and 24 for service

1шт.

18

S115102

AIR CLEANER

BREATHER - hydraulic reservoir, no longer required, order Refs. 23 and 24 for service

1шт.

20

S119340

SENSOR

- tank, low hydraulic oil level

1шт.

21

S119399

TEMPERATURE SENDER

SENDING UNIT - hydraulic oil temperature

1шт.

22

S241961

HARNESS

- lower, at hydraulic tank

1шт.

23

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

- street, 90 degree, 3/4" NPT

1шт.

24

S120650

BREATHER

- hydraulic reservoir

1шт.
