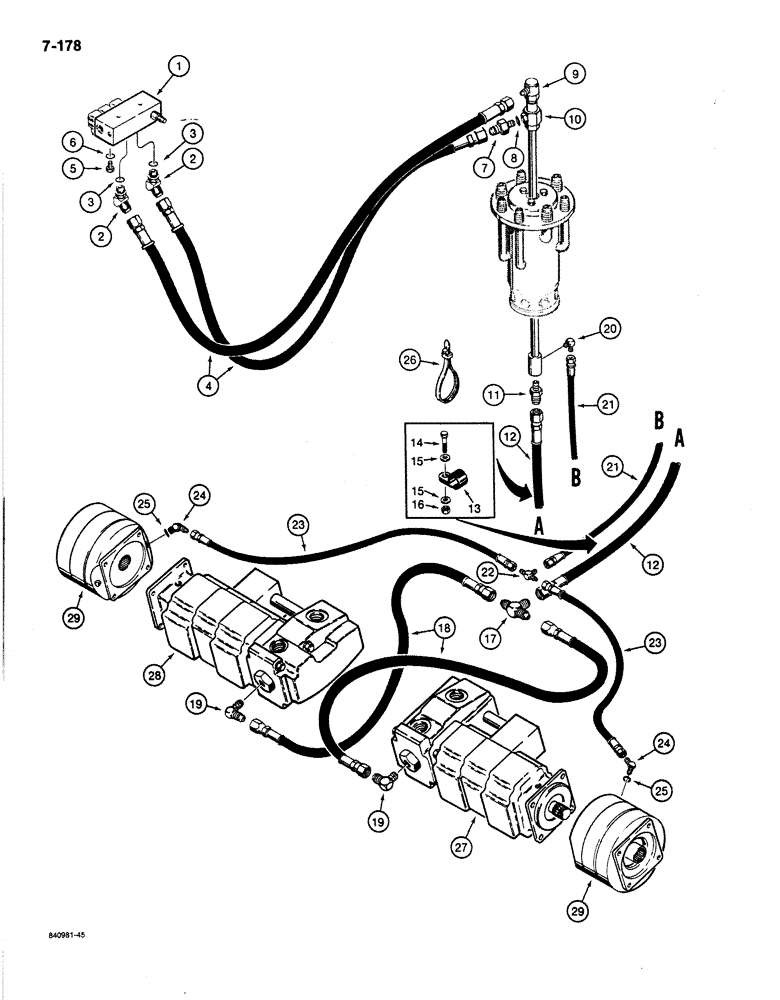

Запчасти Case 1187B (7-178) - DRIVE RANGE AND BRAKE HYDRAULIC LINES, USED ON MODELS PRIOR TO P.I.N. 6275638 (07) - BRAKES

1

S516951

VALVE

CONTROL VALVE - solenoid, parts list Figure 8-280

1шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, at solenoid control valve, Includes: Ref. 3

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.

4

S241219

HOSE ASSY.

HOSE - to inner swivel, 50" (1270 mm) long

2шт.

5

76349

PLUG,9/16" - 18 ORB

"V" port of solenoid valve, Incl. Ref. 6 Hex Hd, 9/16"-18 ORB

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Plug

1шт.

7

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, at inner swivel, lower port, Includes: Ref. 8

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Adapter

1шт.

9

REF

INSTRUCTION

SWIVEL ASSEMBLY - inner, upper, see Figures 7-184 and 7-186 for correct assembly and component parts

1шт.

10

S242505

SWIVEL ASSEMBLY - inner, lower, no longer available, order individual components, parts list Figure 7-182

1шт.

11

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, inner swivel, bottom port

1шт.

12

S241218

HOSE ASSY.

HOSE - 36" (914 mm) long, drive range, from swivel

1шт.

13

T42284

CLAMP

- hose to frame, 3/4" ID

4шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

15

195-525

WASHER,3/8", SAE

4шт.

16

131-52

NUT,3/8"-16, GC

NUT, 3/8"-16, GC

2шт.

17

218-593

TEE,9/16"-18, 37 Degree

- drive range hoses

1шт.

18

S241217

HOSE ASSY.

HOSE - 21" (533 mm) long, drive range, to drive motors

2шт.

19

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, at drive motors

2шт.

20

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, inner swivel, side port

1шт.

21

S77467

HOSE

- 38" (965 mm) long, brake, from swivel

1шт.

22

218-591

TEE,7/16"-20, 37 Degree

- brake hoses

1шт.

23

S77467

HOSE

- 38" (965 mm), Serial Range: long,-brakes

2шт.

24

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degree, at brakes, Includes: Ref. 25

2шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Elbow

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

S617342

MOTOR

ASSEMBLY - hydraulic, track drive, left-hand, parts list Figure 6-162

1шт.

28

S617341

MOTOR

ASSEMBLY - hydraulic, track drive, right-hand, parts list Figure 6-162

1шт.

29

S617727

BRAKE ASSY.

BRAKE ASSEMBLY - track drive, parts list Figure 7-188

2шт.
