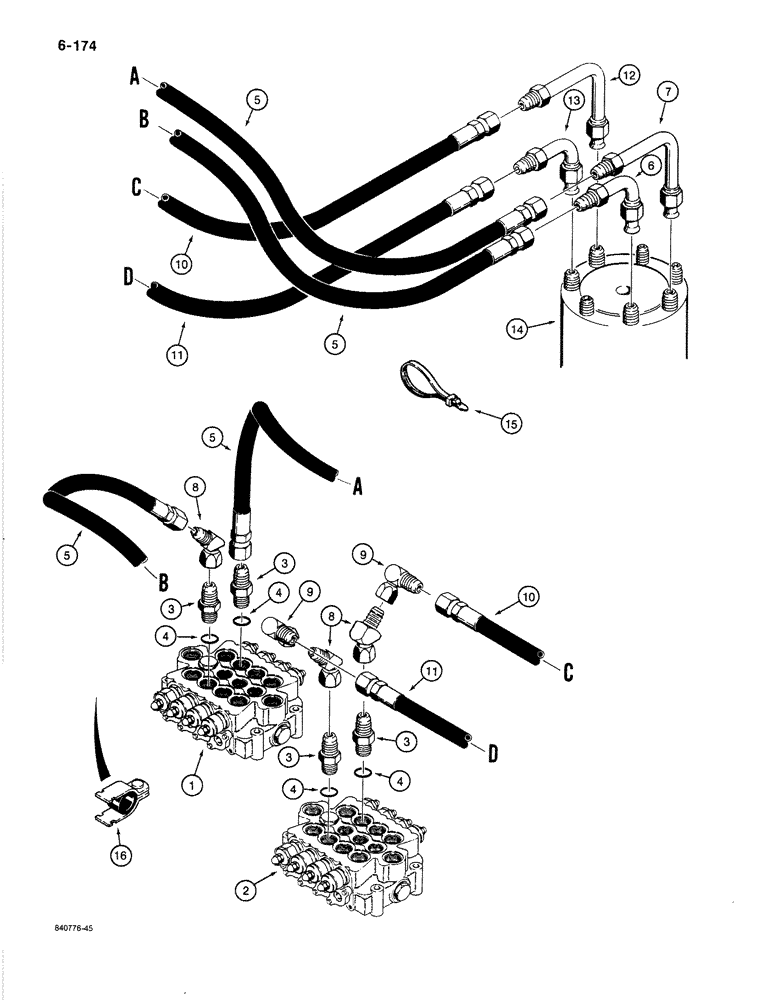

Запчасти Case 1187B (6-174) - TRACK DRIVE HYDRAULIC CIRCUIT - UPPER, VALVES TO HYDRAULIC SWIVEL (06) - POWER TRAIN

1

S516350

VALVE

ASSEMBLY - control, outside, parts list Figure 8-268

1шт.

2

S516349

VALVE

ASSEMBLY - control, inside, parts list Figure 8-266

1шт.

S120857 Kit to eliminate cavitation on the motor in the track drive circuit.

1шт.

3

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, Incl. Ref. 4

4шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

5

S8626

HOSE ASSY.

HOSE - 60" (1524 mm) long, outside valve to hydraulic swivel

2шт.

6

S237062

TUBE,1" OD x 6.06, 4.91" L

- hydraulic swivel at port No. 7

1шт.

7

S229157

TUBE,1" OD x 7.62, 8.75" L

- hydraulic swivel at port No. 6

1шт.

8

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- swivel, 45 degree

3шт.

9

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- swivel, 90 degree

2шт.

10

S401536

HOSE

- 30" (762 mm) long, inside valve to hydraulic swivel at port No. 3

1шт.

11

S8628

HOSE

- 36" (914 mm) long, inside valve to hydraulic swivel at port No. 2

1шт.

12

S229157

TUBE,1" OD x 7.62, 8.75" L

- hydraulic swivel at port No. 3

1шт.

13

S237062

TUBE,1" OD x 6.06, 4.91" L

- hydraulic swivel at port No. 2

1шт.

14

S618820

LINK

SWIVEL ASSEMBLY - hydraulic, seven port, parts list Figure 8-310

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

16

S98324

CLAMP

- hosed from outside valve, if used

2шт.
