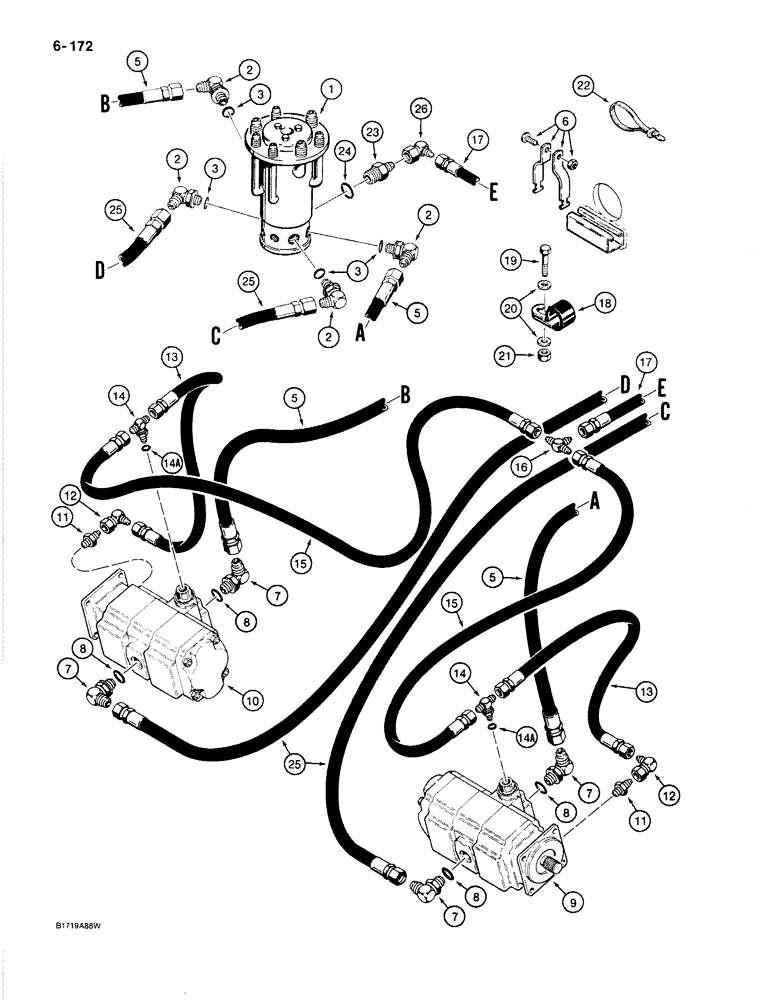

Запчасти Case 1187B (6-172) - TRACK DRIVE HYDRAULIC LINES - LOWER, USED ON MODELS WITH P.I.N. 6275638 AND AFTER (06) - POWER TRAIN

1

S618820

LINK

SWIVEL ASSEMBLY - hydraulic, seven port, parts list Figure 8-310

1шт.

2

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes: Ref. 3 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

5

S8626

HOSE ASSY.

HOSE - 60" (1524 mm) long, track drive circuits

2шт.

6

S98324

CLAMP

- hose

4шт.

7

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

at drive motors, Incl. Ref. 8 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

4шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, elbow

1шт.

9

S517084

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, track drive, right-hand, parts list Figure 6-164

1шт.

10

A517083

MOTOR ASSEMBLY - hydraulic, track drive, left-hand, parts list Figure 6-164

1шт.

11

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - motor drain ports

2шт.

12

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, motor drain ports

2шт.

13

S241217

HOSE ASSY.

HOSE - 21" (533 mm) long, motor drain ports

2шт.

14

218-5510

TEE,9/16"-18, 37 Degree x 7/16"-20, O-Ring Br

- adjustable, motor drain ports, Includes: Ref. 14A

2шт.

14a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Tee

1шт.

15

S241218

HOSE ASSY.

HOSE - 36" (914 mm) long, Serial Range: tee-tee

2шт.

16

218-593

TEE,9/16"-18, 37 Degree

- male, hose connecting

1шт.

17

S241219

HOSE ASSY.

HOSE - 50" (1270 mm), Serial Range: long,-swivel

1шт.

18

T42284

CLAMP

- hose to frame, 5/8" ID

6шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

20

195-525

WASHER,3/8", SAE

8шт.

21

131-52

NUT,3/8"-16, GC

NUT, 3/8"-16, GC

4шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, Includes Ref. 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

25

S401534

HOSE ASSY.

HOSE - 66" (1676 mm) long, track drive circuits

2шт.

26

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- swivel, 90 degree

1шт.
