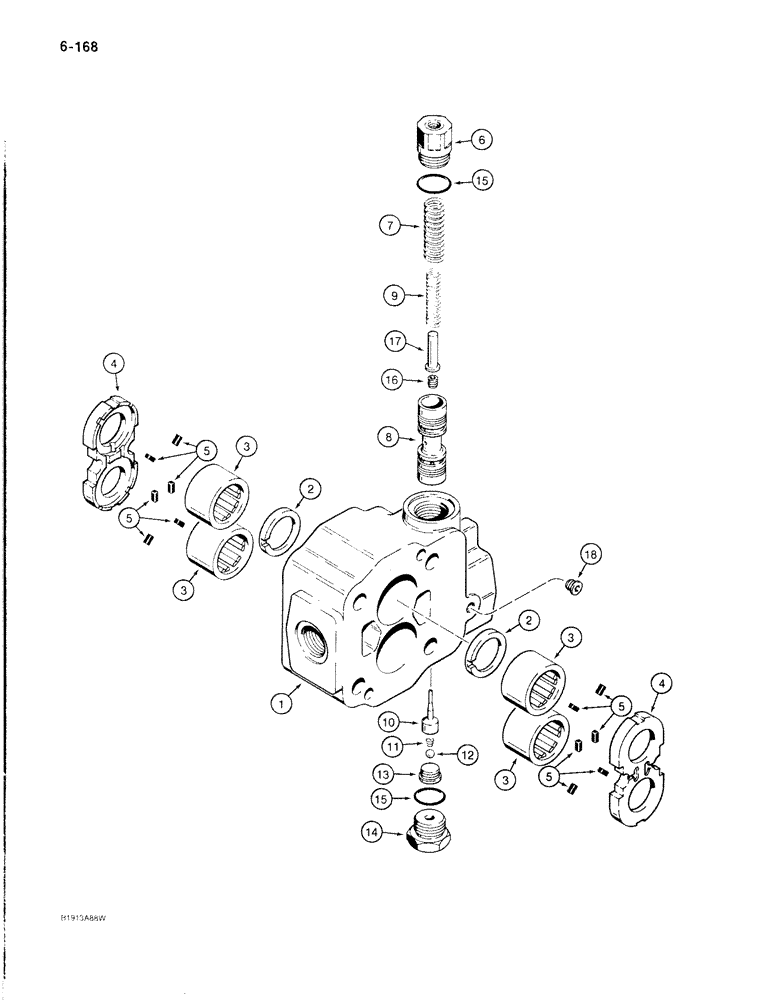

Запчасти Case 1187B (6-168) - CARRIER ASSEMBLY, USED ON MODELS WITH P.I.N. 6275638 AND AFTER (06) - POWER TRAIN

N14769

HOUSING

CARRIER ASSEMBLY - bearing, center, Includes: Refs. 1-19

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - carrier

1шт.

2

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

- shaft, inner

2шт.

3

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller, carrier

4шт.

4

D31955

PLATE

- thrust

2шт.

5

L32099

SEAL

- thrust plate

12шт.

6

N14770

RETAINER

REDUCER - long, spool

1шт.

7

N14771

SPRING

- spool, outer

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

9

N14772

SPRING

- inner, spool

1шт.

10

N14773

VALVE POPPET

POPPET - spool

1шт.

11

N14774

SPRING

- poppet

1шт.

12

211-213

BALL,15/32" Dia

- 15/32", grade 5

1шт.

13

N14775

PLUG

- poppet, Includes: Ref. 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Seat

1шт.

15

N14776

PLUG

REDUCER - short, spool

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- reducer

2шт.

17

86529630

PLUG,Hex Soc, 3/8"-24 ORB

1шт.

18

N14777

PIN

- spool

1шт.

19

278548

PLUG,Hex, 7/16"-20 ORB

Straight thread Hex Soc, 7/16"-20 ORB

1шт.
