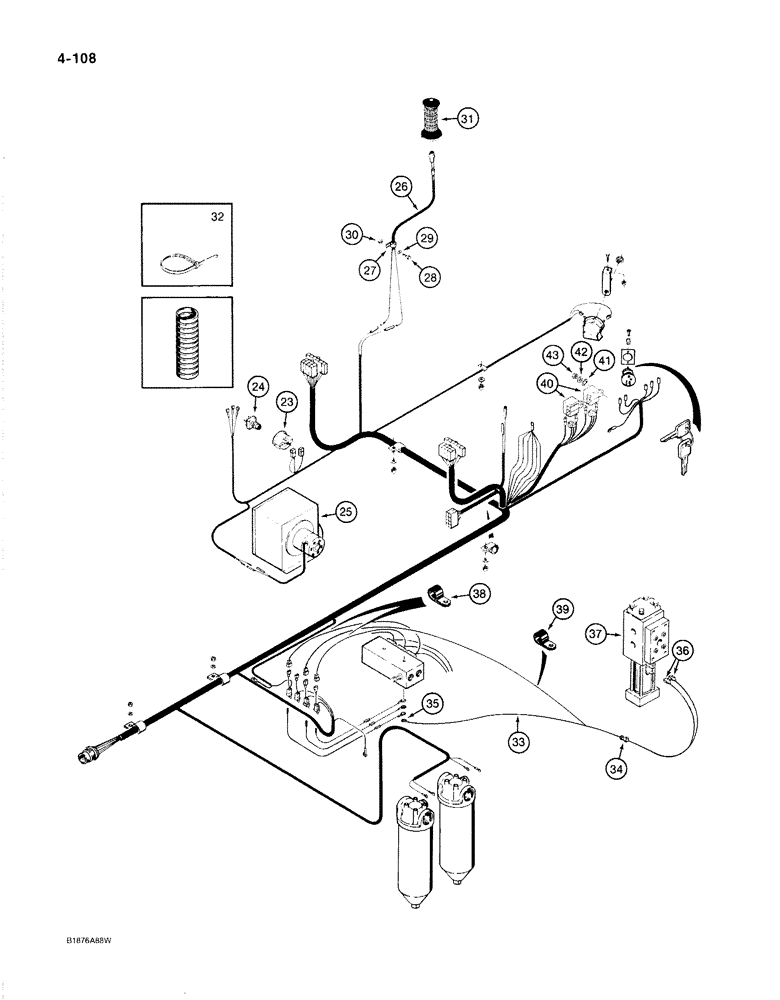

Запчасти Case 1187B (4-108) - ELECTRICAL HARNESS - CAB AND TURNTABLE, USED ON MODELS WITH P.I.N. 6275525 AND AFTER (04) - ELECTRICAL SYSTEMS

23

S516994

GAUGE

HOURMETER - electric

1шт.

24

REF

INSTRUCTION

SWITCH - heater, supplied with heater, see Figure 4-122

1шт.

25

S242826

HEATER

ASSEMBLY - cab, if used, parts list page 4-123

1шт.

26

S242036

SWITCH

AND WIRE - rotary cutter or collector

1шт.

27

49851

SHIELD

- fast hoist switch wire

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

29

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

30

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

31

S119987

GRIP

- control lever, see Figure 9-334 for hand lever controls

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

33

S119526

CABLE

- to solenoid, used with rotary cutter, 39.17 ft (11.94 m) long, cut from S118482, see below

1шт.

33

S119525

CABLE

- to solenoid, used with collector, 29.17 ft (8.89 m) long, cut from S118482, see below

1шт.

34

S222004

CONNECTOR - strain relief, cable to frame, rotary cutter only

1шт.

35

223-61

TERMINAL CONNECTOR,14 - 16

TERMINAL - cable at solenoid control valve

1шт.

36

223-92

TERMINAL

TERMINAL - cable at solenoid valve

2шт.

37

S516009

VALVE

ASSEMBLY - solenoid, used with rotary cutter, parts list Figure 8-282

1шт.

37

S516409

VALVE

ASSEMBLY - solenoid, used with collector, parts list Figure 8-284

1шт.

38

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- diode to monoblock valve

2шт.

39

S77322

CLAMP

- harness

1шт.

40

L115883

RELAY

- starter

2шт.

41

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

4шт.

42

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

43

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

4шт.

S118482

CABLE

- electrical, 2 wire, 14 gauge, 50 ft (15.24 m) long, use for refs. 33 (P/N S119526) and 33 (P/N S1159525)

1шт.
