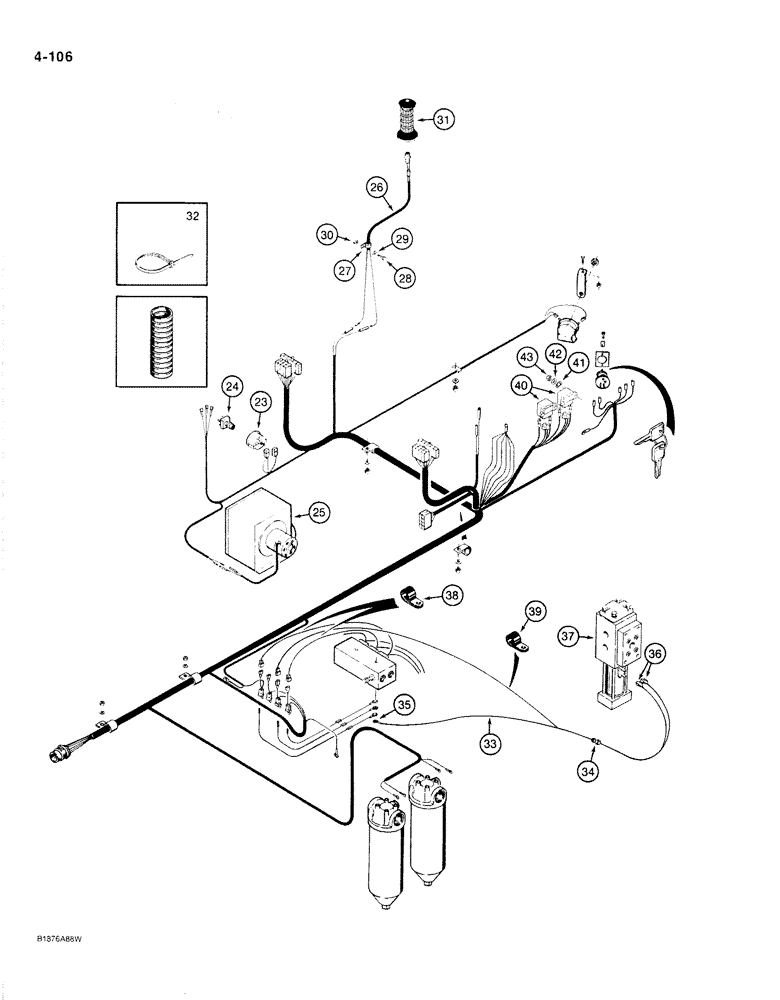

Запчасти Case 1187B (4-106) - ELECTRICAL HARNESS - CAB AND TURNTABLE, USED ON MODELS WITH P.I.N. 6275525 AND AFTER (04) - ELECTRICAL SYSTEMS

1

S618923

HARNESS

- turntable, Includes: Refs. 2 and 2A

1шт.

2

S107264

CONNECTION,ELECTRIC

PLUG - electrical, harness

1шт.

2a

S99516

CONTACT

PIN - plug, not shown

8шт.

3

R14668

CLAMP

- harness, rear

2шт.

4

REF

INSTRUCTION

SLEEVE - wires at solenoid valve, 17" (432 mm) long, cut from S119717, see below

1шт.

5

T50103

CLAMP

- harness, front

2шт.

6

A61275

CLIP

CLAMP - horn wire

1шт.

7

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

5шт.

8

195-525

WASHER,3/8", SAE

- flat, 3/8"

5шт.

9

S242833

HARNESS

WIRE - diode

3шт.

10

S117294

ROD, CONNECTING

CONNECTOR - solenoid control valve wires

3шт.

11

S516951

VALVE

ASSEMBLY - control, solenoid, parts list Figure 8-280

1шт.

12

S616066

FILTER

ASSEMBLY - hydraulic oil, parts list Figure 8-312

2шт.

D134737

IGNITION SWITCH

SWITCH ASSMEBLY - key, electrical system, Includes: Refs. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

SWITCH - key, electrical system

1шт.

14

R30074

SET

KEYS - switch, set of two keys

1шт.

15

S242795

PLATE

- switch mounting

1шт.

16

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, No. 10 - 24 NC x 3/4"

2шт.

16a

F64315

WASHER

- special finishing, No. 10, not shown

2шт.

17

131-143

SPRING NUT,Tinn, U, #10-24

2шт.

18

D77650

HORN

- electrical

1шт.

19

L73799

BRACKET

- horn mounting

1шт.

20

L30866

LOCK NUT

- horn mounting

1шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

22

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, Light duty

1шт.

S119717

CONDUIT

SLEEVE - bulk roll, 1" (25 mm) ID x 192" (488 mm) long, use for ref. 4

1шт.
