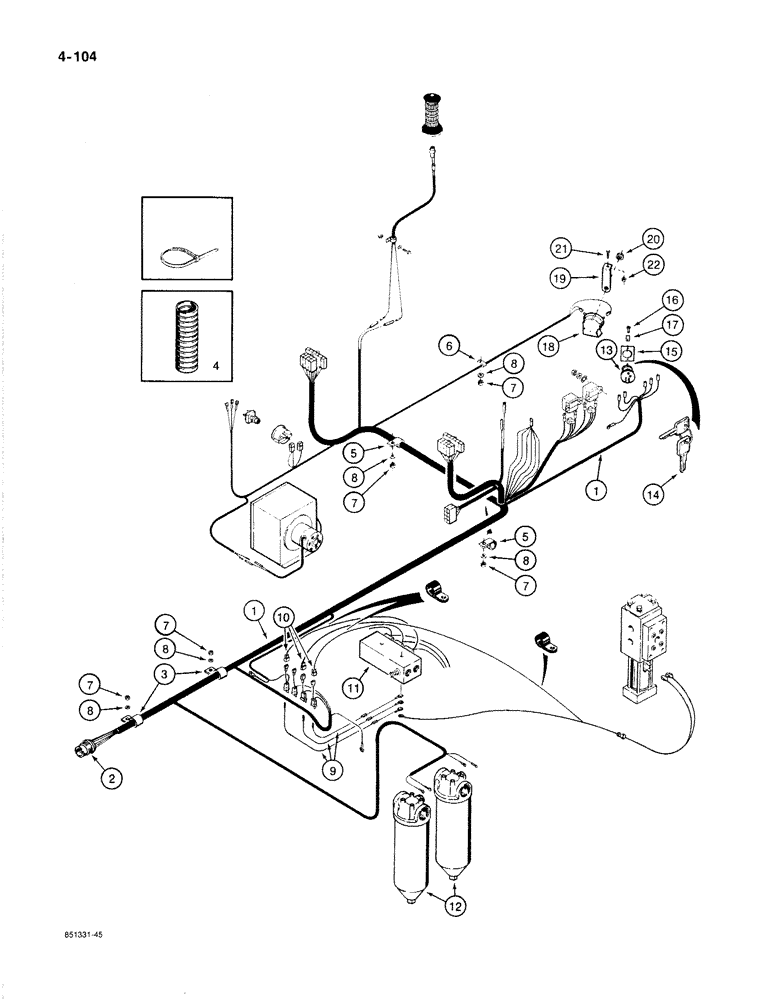

Запчасти Case 1187B (4-104) - ELECTRICAL HARNESS - CAB AND TURNTABLE, USED ON MODELS PRIOR TO P.I.N. 6275525 (04) - ELECTRICAL SYSTEMS

1

S618338

HARNESS

- turntable, Includes: Refs. 2 and 2A

1шт.

2

S107264

CONNECTION,ELECTRIC

PLUG - electrical, harness

1шт.

2a

S99516

CONTACT

PIN - plug, not shown

8шт.

3

R14668

CLAMP

- harness, rear

2шт.

4

REF

INSTRUCTION

SLEEVE - wires at solenoid valve, 17" (432 mm) long, cut from S119717, see below

1шт.

5

T50103

CLAMP

- harness, front

2шт.

6

A61275

CLIP

CLAMP - horn wire

1шт.

7

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

5шт.

8

195-525

WASHER,3/8", SAE

- flat, 3/8"

5шт.

9

S238309

DIODE

WIRE - diode

3шт.

10

S117294

ROD, CONNECTING

CONNECTOR - solenoid control valves wires

3шт.

11

S516951

VALVE

ASSEMBLY - control, solenoid, parts list Figure 8-280

1шт.

12

S616066

FILTER

ASSEMBLY - hydraulic oil, parts list Figure 8-312

2шт.

S108413

SWITCH

ASSEMBLY - key, electrical system, Includes: Refs. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

SWITCH - key, electrical system

1шт.

14

R30074

SET

KEYS - switch, set of two keys

1шт.

15

S239946

PLATE

- switch mounting

1шт.

16

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, No. 10 - 24 NC x 3/4"

2шт.

16a

F64315

WASHER

- special finishing, No. 10, not shown

2шт.

17

S117167

CLIP

NUT - U-type, No. 10 - 24 NC

2шт.

18

D77650

HORN

- electrical

1шт.

19

L73799

BRACKET

- horn mounting

1шт.

20

L30866

LOCK NUT

- horn mounting

1шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

22

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, Light duty

1шт.

23

S516994

GAUGE

HOURMETER - electric

1шт.

24

REF

INSTRUCTION

SWITCH - heater, supplied with heater, see Figure 4-122

1шт.

25

S242826

HEATER

ASSEMBLY - cab, if used, parts list Figure 4-122

1шт.

26

S242036

SWITCH

AND WIRE - rotary cutter or collector

1шт.

27

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- fast hoist switch wire

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

29

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

30

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

31

S119987

GRIP

- control lever, see Figure 9-334 for hand lever controls

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

33

S119526

CABLE

- to solenoid, used with rotary cutter, 39.17 ft (11.94 m) long, cut from S118482, see below

1шт.

33

S119525

CABLE

- to solenoid, used with collector, 29.17 ft (8.89 m) long, cut from S118482, see below

1шт.

34

S222004

CONNECTOR - strain relief, cable to frame, rotary cutter only

1шт.

35

223-61

TERMINAL CONNECTOR,14 - 16

TERMINAL - cable at solenoid control valve

1шт.

36

223-92

TERMINAL

TERMINAL - cable at solenoid valve

2шт.

37

S516009

VALVE

ASSEMBLY - solenoid, used with rotary cutter, parts list Figure 8-282

1шт.

37

S516409

VALVE

ASSEMBLY - solenoid, used with collector, parts list Figure 8-284

1шт.

S119717

CONDUIT

SLEEVE - bulk roll, 1" (25 mm) ID x 192" (488 mm) long, use for ref. 4

1шт.

S118482

CABLE

- electrical, 2 wire, 14 gauge, 50 ft (15.24 mm) long, use for refs. 33 (P/N S119526) and 33 (P/N S119525)

1шт.
