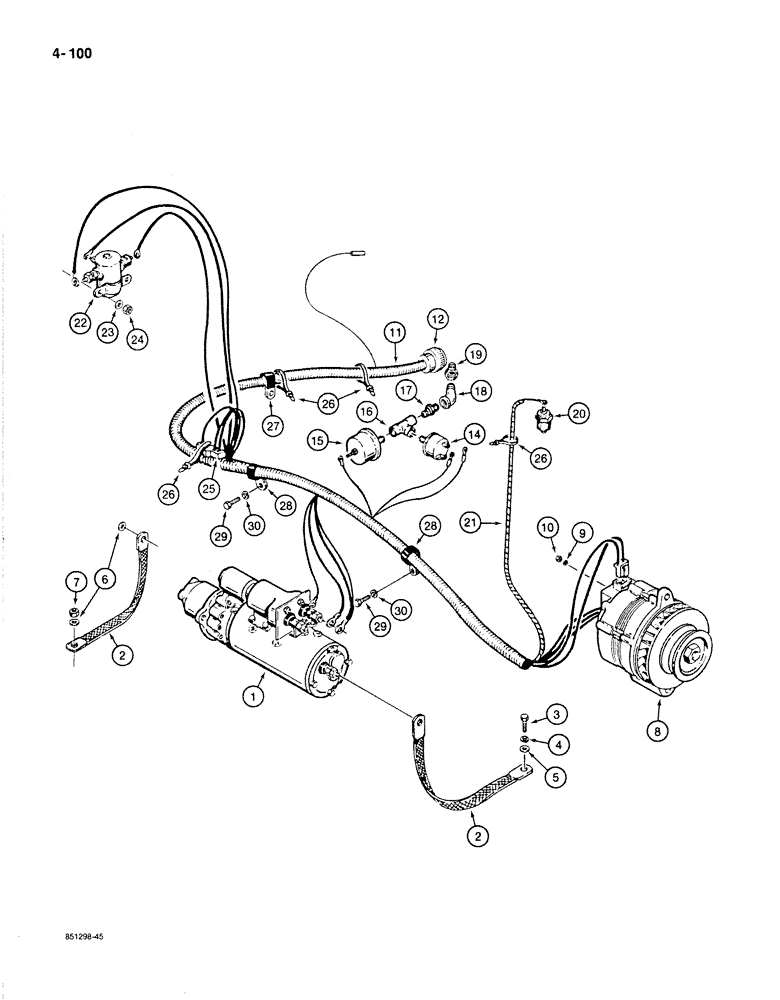

Запчасти Case 1187B (4-100) - DETROIT DIESEL ENGINE ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - furnished with engine, for service see an authorized Detroit Diesel Allison service outlet

1шт.

2

S229640

CABLE

- ground, starter to engine and, Serial Range: engine-turntable

2шт.

3

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

1шт.

4

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

5

195-529

WASHER,7/16", SAE

- flat, 7/16"

1шт.

6

195-525

WASHER,3/8", SAE

- flat, 3/8"

2шт.

7

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

8

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - parts list Figures 4-80 and 4-82, mounting brackets Figure 4-94

1шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Alternator output terminal 1/4"

1шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Alternator output terminal

1шт.

11

S618803

HARNESS

- engine, Includes: Refs. 12, 13

1шт.

Replaced by S618941 at S/N6275525

1шт.

12

S120252

PLUG

CONNECTOR - harness (replaces S107265), Includes: Ref. 13

1шт.

13

S99513

CONTACT

- connector, female, not shown

8шт.

14

S63884

SWITCH

- hourmeter, oil pressure activated

1шт.

15

S242648

SWITCH

SENDER - engine oil pressure

1шт.

16

217-1160

TEE,1/8"-27 Female

- oil pressure, 1/8" NPT

1шт.

17

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

CONNECTOR - straight, 1/8" NPT

1шт.

18

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

19

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducer, 1/4" NPT x 1/8" NPT

1шт.

20

L127531

SENDER UNIT

SENDER - engine temperature (replaces S108396)

1шт.

21

REF

INSTRUCTION

LOOM - sender wire, 21" (533 mm) long, cut from S118377, see below

1шт.

22

S240588

SOLENOID SWITCH

RELAY - starter

1шт.

(Bosch L115883)

1шт.

23

195-518

WASHER,1/4", SAE

- flat, 1/4"

2шт.

24

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

25

S237284

RESISTOR

- alternator circuit

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

R14668

CLAMP

- engine harness

1шт.

28

S88820

CLAMP

- engine harness

2шт.

29

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

30

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

S118377

LOOM

- bulk roll, 240" (6096 mm) long

1шт.
